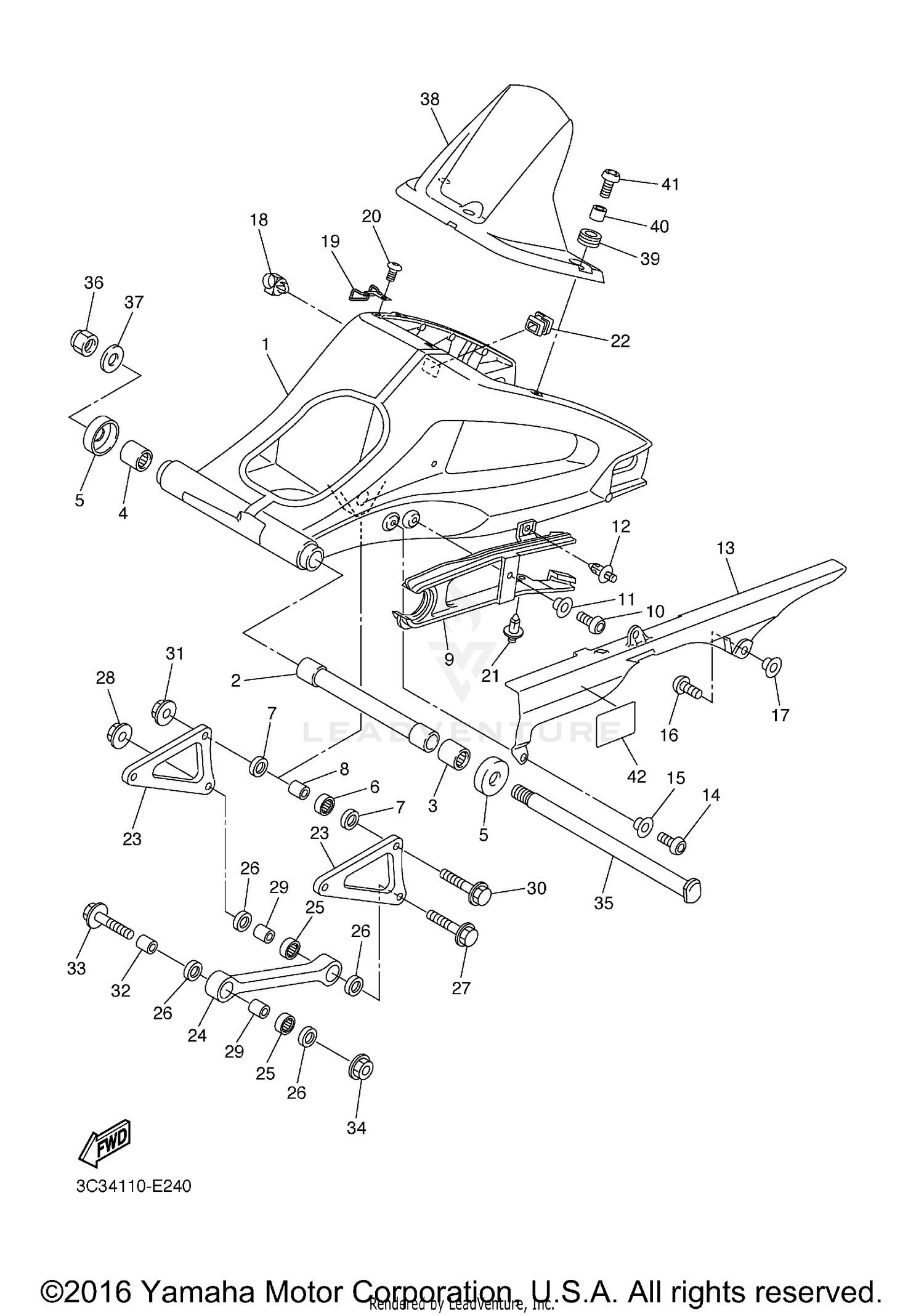

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
2D1-22110-11-00
|
$1,022.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
2D1-22184-00-00
Superseded by 39P-22184-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93317-42599-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93315-42536-00
Superseded by 93317-425B7-00
|
$38.99 | ||
|
Unavailable |
|||
|
#5
COVER, THRUST 1
5JJ-22128-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93315-41762-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-1012A-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, GUARD
2D1-22151-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BUTTON HEAD
92012-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-06130-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIVET
90269-07007-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE, CHAIN
5SL-22311-00-00
Superseded by 5SL-22311-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#14
BOLT, BUTTON HEAD
92012-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
COLLAR
90387-06130-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90110-06102-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-06009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-17003-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, BRAKE HOSE
2D1-25887-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
92012-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
RIVET
90269-07008-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP
2D1-22117-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
ARM, RELAY
2D1-2217A-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
ARM 1
2D1-2217M-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93315-31758-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
90105-10030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-1012A-00
|
$19.49 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE
90105-10030-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Unavailable |
|||
|
#32
COLLAR
90387-10043-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
90105-10323-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Unavailable |
|||
|
#35
SHAFT, PIVOT
2D1-22141-00-00
Superseded by 39P-22141-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SELF-LOCKING
90185-18167-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90201-18013-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
REAR FENDER COMP.
2D1-21650-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GROMMET
90480-12003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR
90387-0600V-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW
90149-06302-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
LABEL, TIRE
5VY-21668-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
