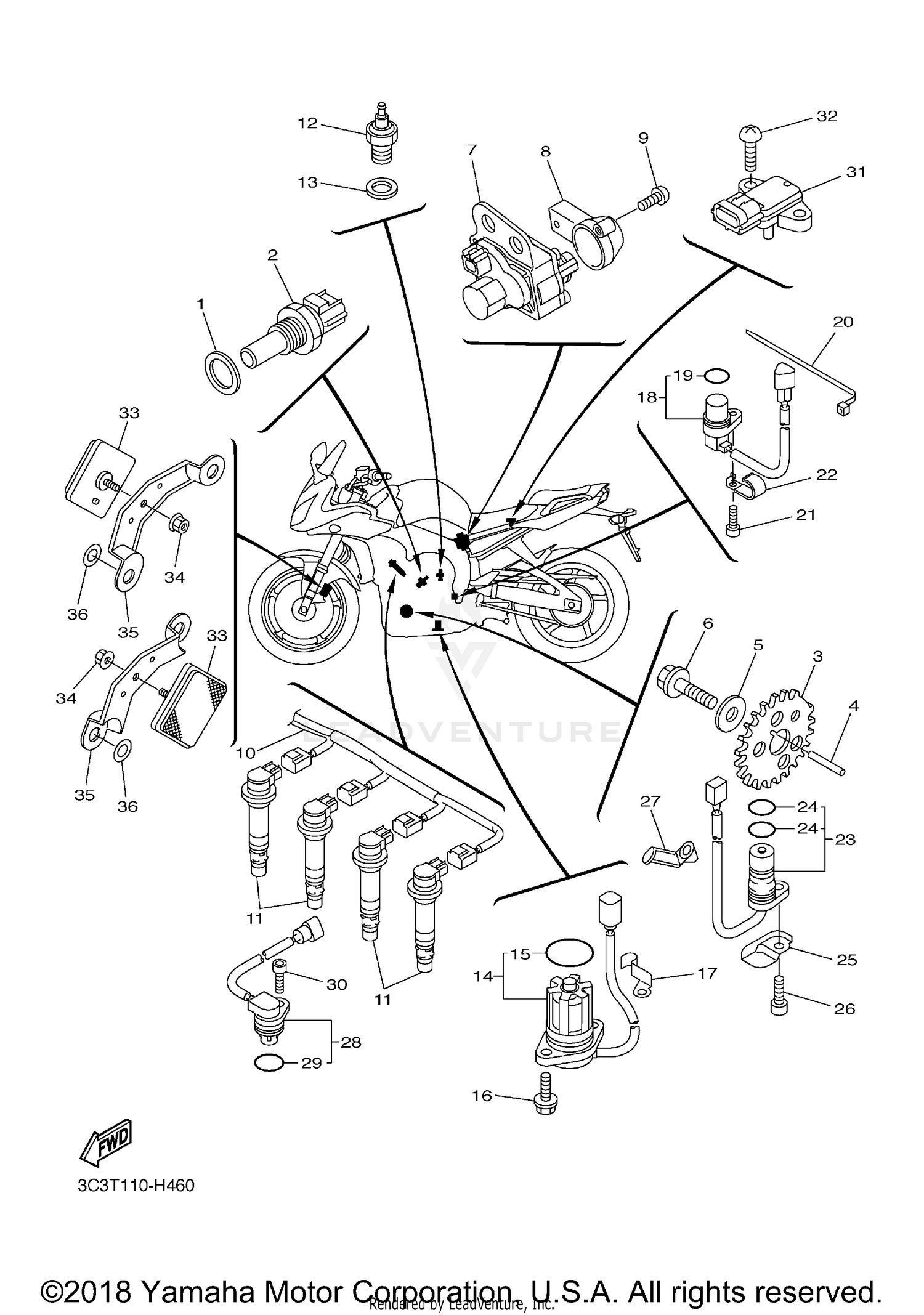

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, PLATE
90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMOSENSOR ASSY
8CC-85790-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROTOR
2D1-81673-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY, STRAIGHT
90282-03001-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10039-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-10290-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SERVO MOTOR ASSY
2D1-85820-00-00
Superseded by 2D1-85820-01-00
|
$430.99 | ||
|
Unavailable |
|||
|
#8
COVER, SERVO MOTOR
5VY-85829-00-00
Superseded by 5VY-85829-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, TAPPING
97702-50514-00
Superseded by 97780-50514-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
WIRE, SUB LEAD
2D1-82309-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
IGNITION COIL ASSY
5VY-82310-00-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL LEVEL GAUGE ASSY
5VY-85720-00-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
5VY-8A8E0-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90465-08053-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR, SPEED
4XV-83755-03-00
Superseded by 4XV-83755-04-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
4D9-81168-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-51001-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90462-08057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PICK-UP ASSY
23P-81670-00-00
Superseded by 23P-81670-01-00
|
$128.99 | ||
|
Unavailable |
|||
|
#24
O-RING 1
5VY-8A8E1-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE
5VY-15589-02-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Unavailable |
|||
|
#27
CLAMP
90465-08054-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SENSOR, CAM POSITION
5VY-85896-01-00
Superseded by 5VY-85896-02-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
4D9-81168-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#30
BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
SENSOR, PRESSURE
2C0-82380-00-00
Superseded by 1WS-82380-00-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, TAPPING
97702-60520-00
Superseded by 97707-60520-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
REFLECTOR ASSY
20G-85110-00-00
Superseded by 23V-85110-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET, REFLECTOR 1
4XV-85112-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-08759-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
