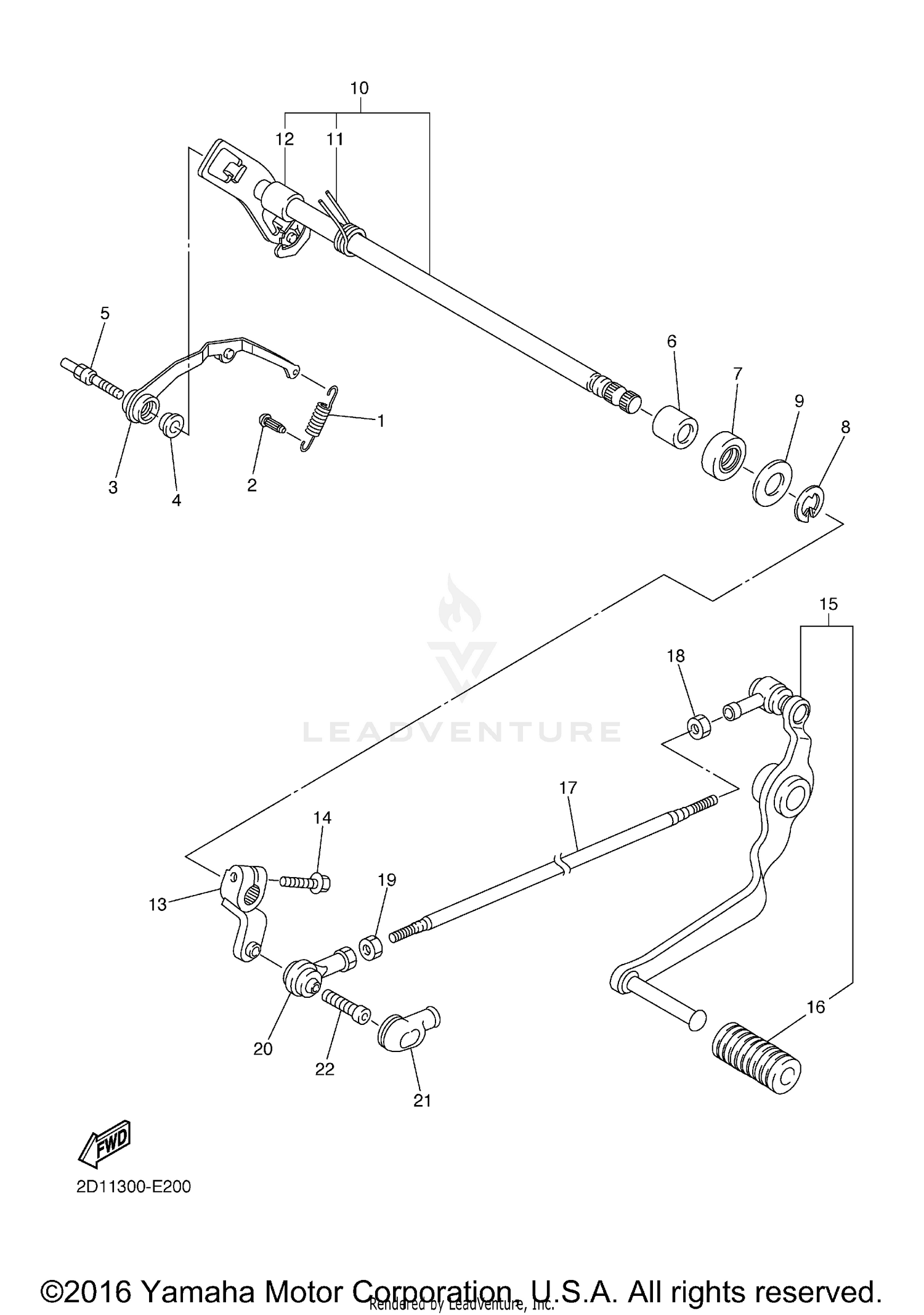

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANGER, SPRING
5VY-18144-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOOK, SPRING
132-16346-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER LEVER ASSY
5VY-18140-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-0804S-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
STOPPER, SCREW
5VY-18127-10-00
Superseded by 39P-18127-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93317-11295-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (SD 12-22-5 HS)
93101-12004-00
Superseded by 93102-12106-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
99002-10600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-12575-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFT SHAFT ASSY
2D1-18101-00-00
Superseded by 2D1-18101-02-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TORSION
90508-32020-00
Superseded by 90508-32141-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-1211D-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, SHIFT
2D1-18112-00-00
Superseded by 39P-18112-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95022-06020-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIFT PEDAL ASSY
2D1-18110-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, SHIFT PEDAL
5EB-18113-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, SHIFT
2D1-18115-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT (COUNTER CLOCKWISE)
90170-06228-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95304-06700-00
Superseded by 95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT, ROD 1
5VX-18116-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, DUST
5VX-18154-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, BUTTON HEAD
90111-06019-00
Superseded by 92017-06020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
