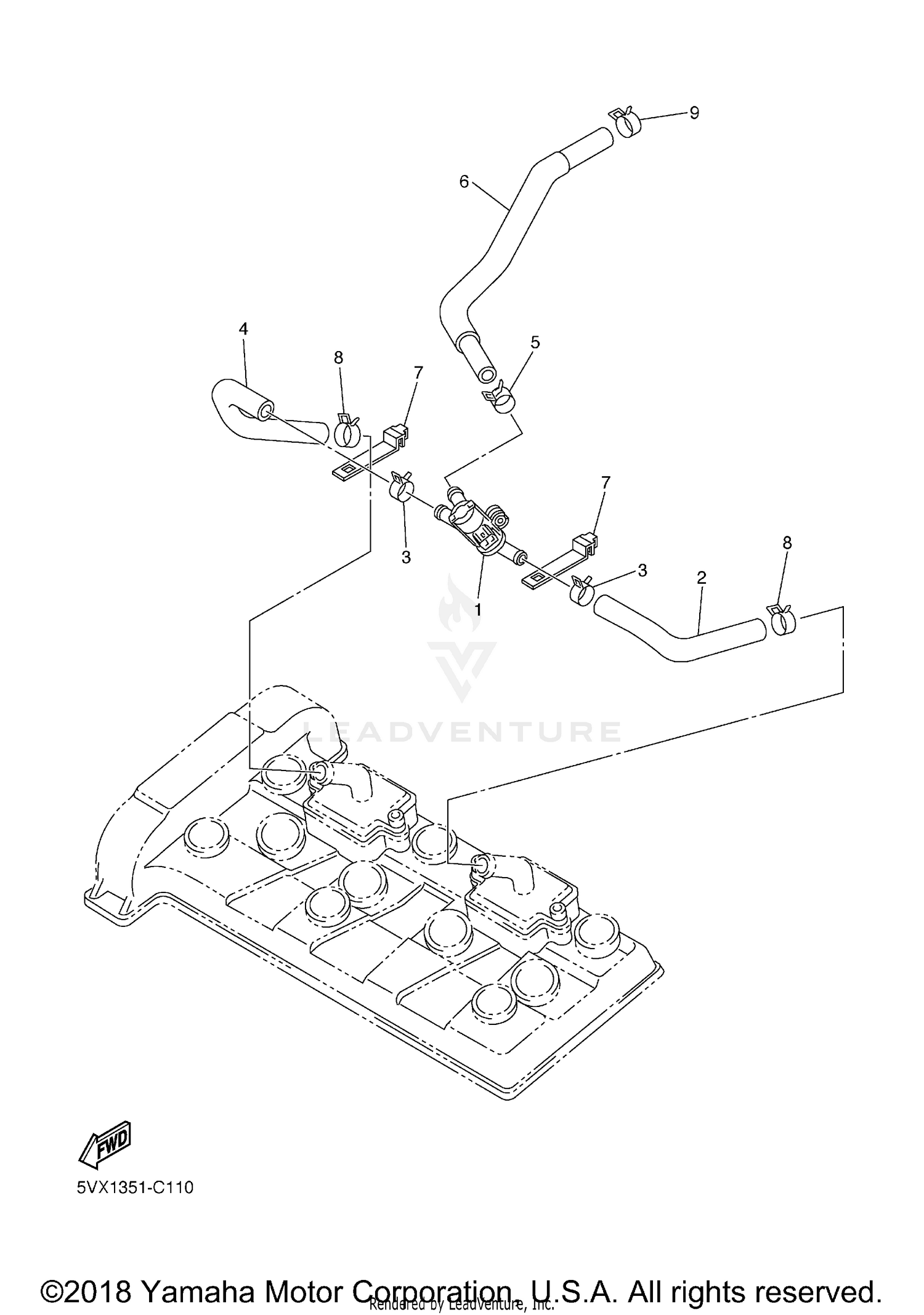

2004 Yamaha FZ 6 AIR INDUCTION SYSTEM OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AIR CUT VALVE ASSY
5VX-14840-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, BEND 1
5VX-14881-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, BEND 2
5VX-14882-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.49 | ||
|
Unavailable |
|||
|
#6
HOSE, BEND 3
5VX-14883-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER 1
5JW-14723-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90467-17003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
90467-17128-00
|
$7.49 | ||
|
Unavailable |
|||
