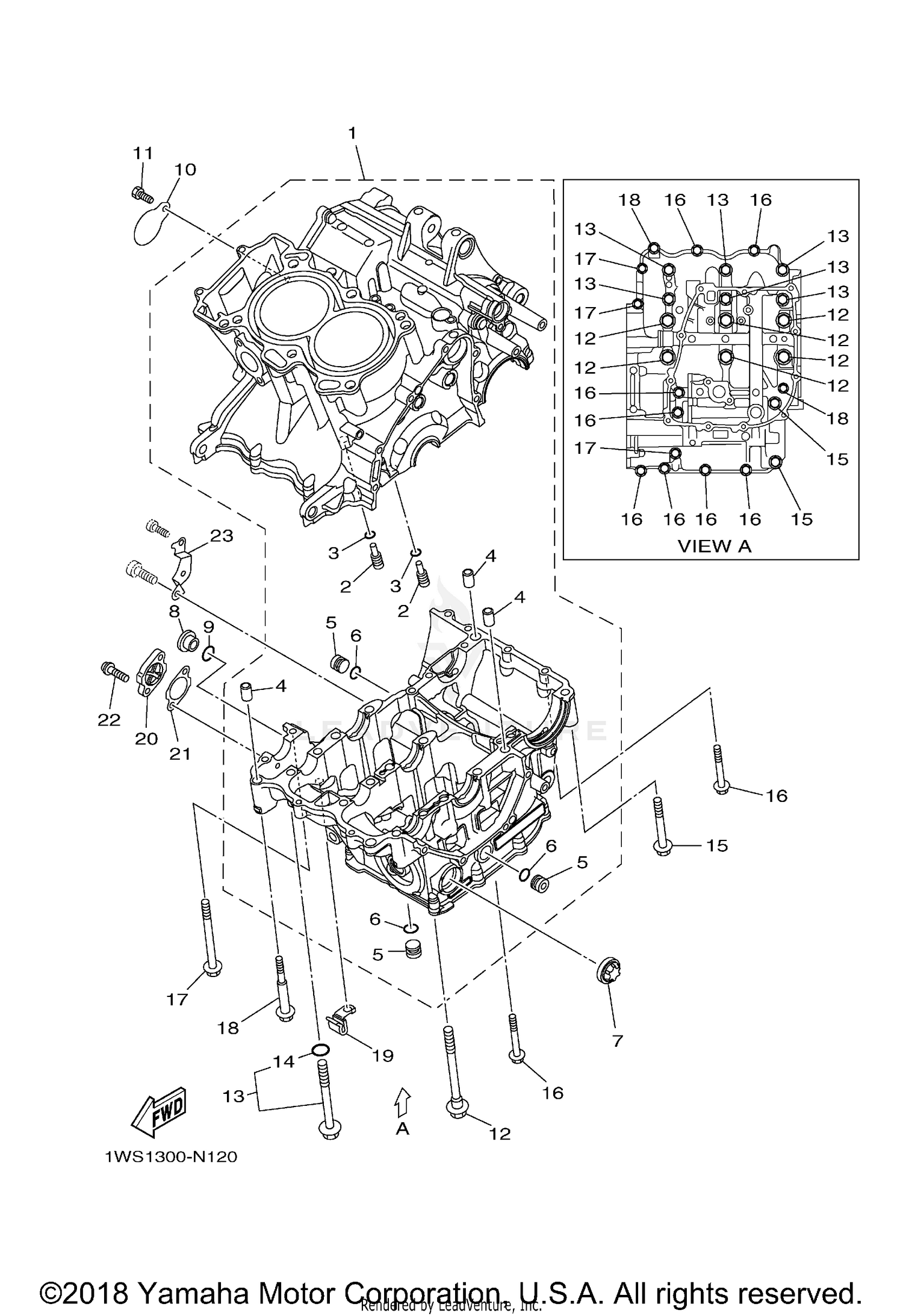

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY SET
1WS-15100-09-00
Superseded by 99999-04404-00
|
$1,651.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NOZZLE 3
5EB-15155-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-04092-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG
90338-16262-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-12790-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GAUGE, LEVEL
2H7-15361-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG
36Y-15189-00-00
Superseded by 36Y-15189-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#9
O-RING
93210-16325-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG
1WS-15189-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90101-06043-00
Superseded by 97012-06014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-09014-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CRANKCASE JOURNAL
1WS-15156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-07540-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95812-08065-00
Superseded by 95814-08065-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95812-06040-00
Superseded by 95817-06040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95812-06060-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90462-10064-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, OIL PUMP
1WS-15416-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, OIL PUMP C
1WS-15456-00-00
Superseded by 1WS-15456-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-06395-00
Superseded by 90110-06396-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER
1WS-15128-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
