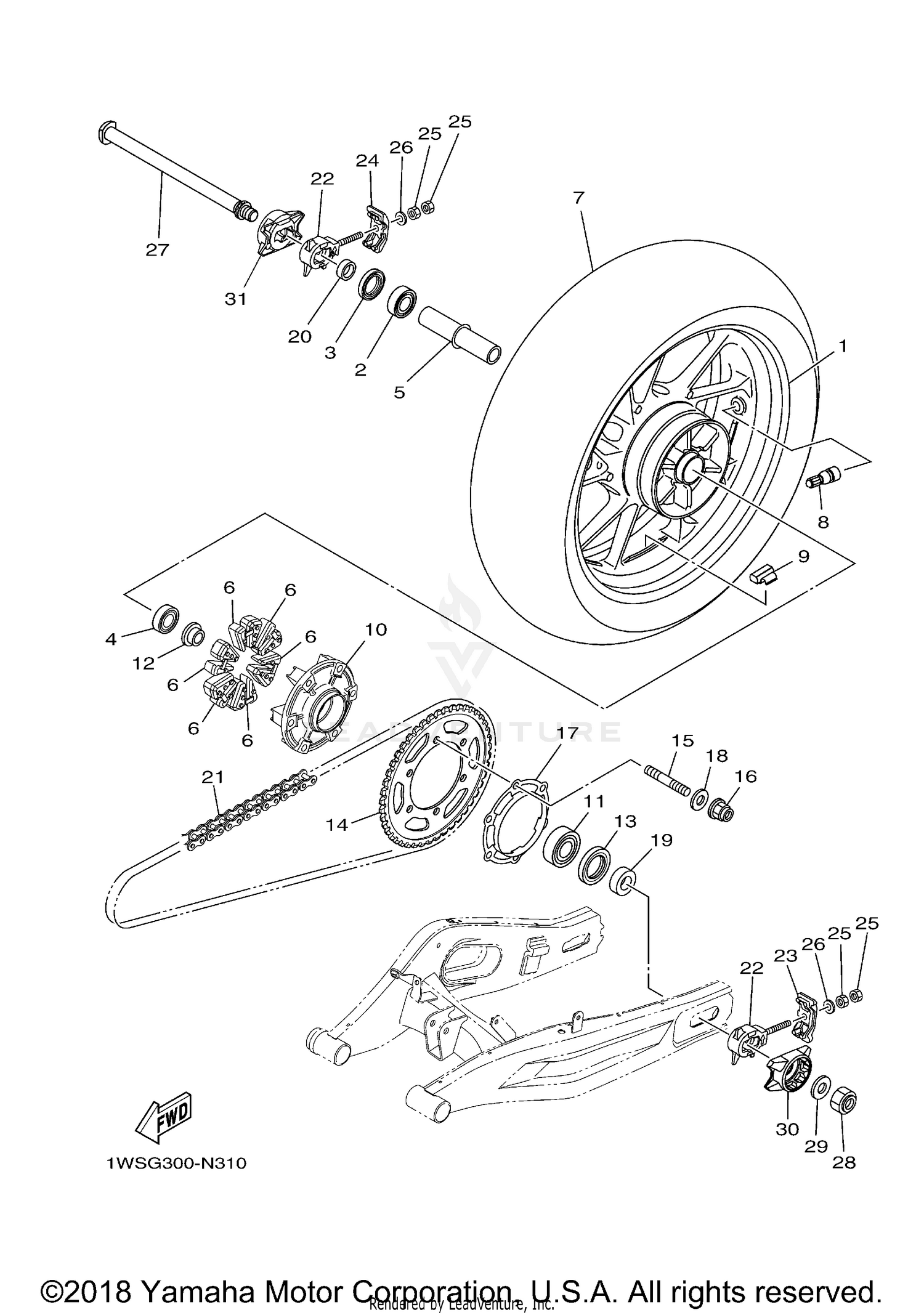

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
1RC-25338-00-98
|
$632.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
CAST WHEEL, REAR
1RC-25338-00-2X
|
$538.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-20480-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-28022-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-00416-00
Superseded by 93306-00444-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, BEARING
2PP-25317-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER
5SL-25364-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
TIRE (180/55ZR17 M/C 73W)
94118-17080-00
|
$346.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BALANCER, WHEEL (20G)
5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BALANCER, WHEEL (30G)
5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BALANCER, WHEEL (10G)
5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLUTCH, HUB
5JJ-25366-00-00
|
$447.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-205B5-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, WHEEL
1RC-25383-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93106-40013-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPROCKET, DRIVEN (43T)
1WS-25443-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD
90116-10048-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET 1
1WS-2537W-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-10045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-20036-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-20035-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CHAIN
94582-40108-00
Superseded by 94A40-21108-00
|
$182.99 | ||
|
Unavailable |
|||
|
#22
PULLER, CHAIN 1
1WS-25388-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
END 1
1WS-22174-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
END 1
1WS-22175-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEXAGON
95302-08600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92902-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHAFT, PIVOT
4FN-22141-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SELF-LOCKING
90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-18021-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, REAR AXLE 1
1WS-2538D-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, REAR AXLE 2
1WS-2538N-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
