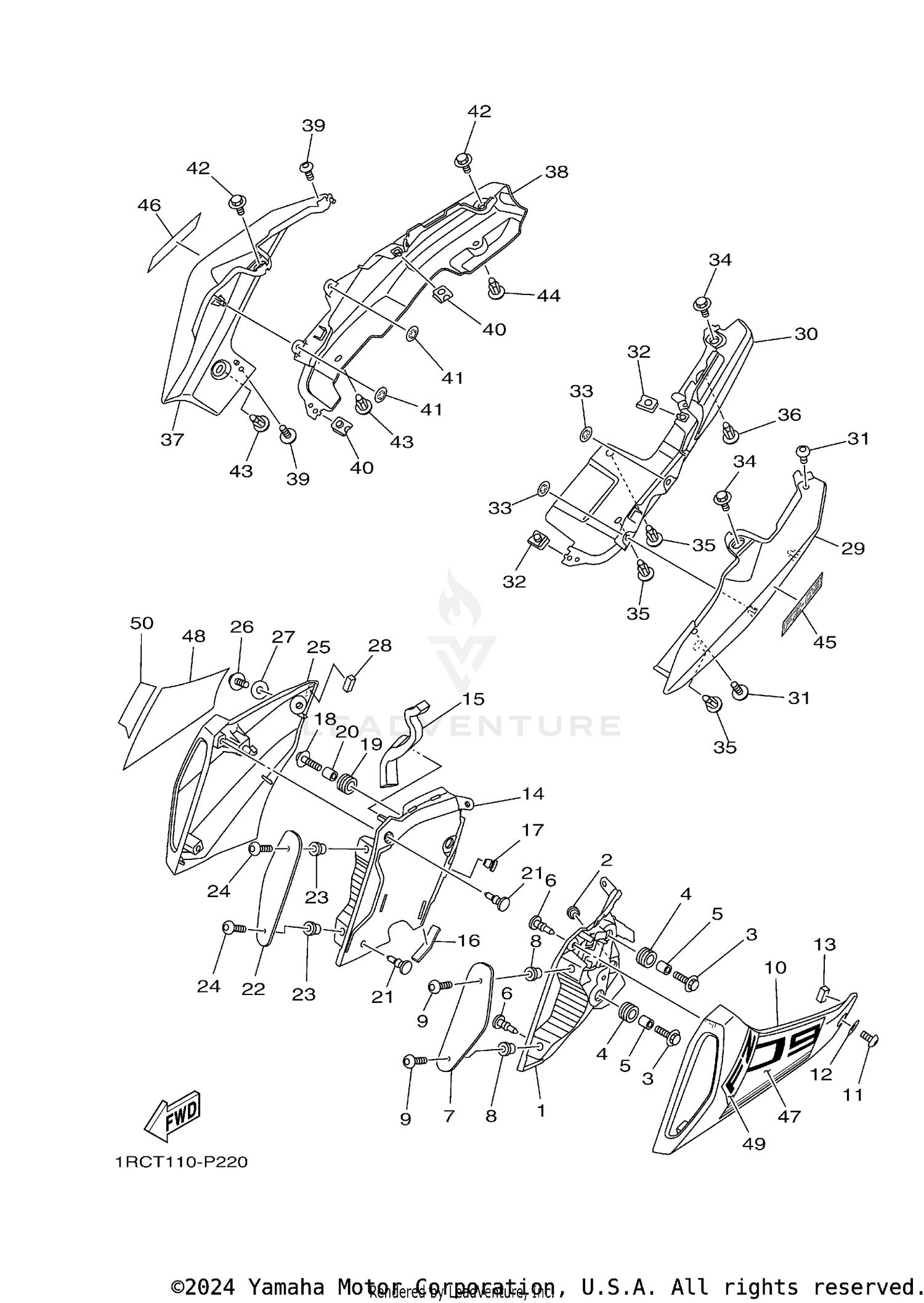

2015 Yamaha FZ -9 SIDE COVER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, SIDE COVER 1
1RC-2172E-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06267-00
Superseded by 90119-06118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-14003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-06057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIVET
90269-06001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRILL, AIR INTAKE 1
1RC-2837N-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90179-05523-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. SOCKET BUTTON
90111-05039-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCOOP, AIR 1
1RC-2137W-00-P0
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
1RC-21747-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, SIDE COVER 2
1RC-2174E-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, PLATE
90520-10022-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, PLATE
90520-10003-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
BOLT, WITH WASHER
90119-06267-00
Superseded by 90119-06118-00
|
$6.99 | ||
|
Unavailable |
|||
|
#19
GROMMET
90480-14003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
COLLAR
90387-06057-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
RIVET
90269-06001-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
GRILL, AIR INTAKE 1
1RC-2837N-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#23
NUT
90179-05523-00
|
$6.99 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. SOCKET BUTTON
90111-05039-00
|
$4.35 | ||
|
Unavailable |
|||
|
#25
SCOOP, AIR 2
1RC-2137X-00-P0
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$5.99 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Unavailable |
|||
|
#28
DAMPER
1RC-21747-00-00
|
$3.10 | ||
|
Unavailable |
|||
|
#29
COVER, SIDE 1
1RC-21711-00-P2
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, SIDE 1
1RC-21711-00-P4
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, SIDE 1
1RC-21711-00-P3
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, SIDE 3
1RC-21731-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$5.99 | ||
|
Unavailable |
|||
|
#32
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, SPRING
90183-05M02-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
90109-06174-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
RIVET
90269-07007-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
RIVET
90269-07014-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, SIDE 2
1RC-21721-00-P2
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, SIDE 2
1RC-21721-00-P4
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, SIDE 2
1RC-21721-00-P3
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER, SIDE 4
1RC-21741-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$5.99 | ||
|
Unavailable |
|||
|
#40
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$6.99 | ||
|
Unavailable |
|||
|
#41
NUT, SPRING
90183-05M02-00
|
$0.30 | ||
|
Unavailable |
|||
|
#42
BOLT
90109-06174-00
|
$8.49 | ||
|
Unavailable |
|||
|
#43
RIVET
90269-07007-00
|
$3.75 | ||
|
Unavailable |
|||
|
#44
RIVET
90269-07014-00
|
$2.00 | ||
|
Unavailable |
|||
|
#45
EMBLEM 1
1RC-2163G-30-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
EMBLEM 1
1RC-2163G-30-00
|
$7.49 | ||
|
Unavailable |
|||
|
#47
GRAPHIC 1
1RC-2173E-10-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
GRAPHIC 1
1RC-2173E-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
GRAPHIC 2
1RC-2173F-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
GRAPHIC 2
1RC-2173F-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
EMBLEM
1RC-21737-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
EMBLEM
1RC-21737-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
EMBLEM
1RC-21737-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#50
EMBLEM
1RC-21737-10-00
|
$14.49 | ||
|
Unavailable |
|||
