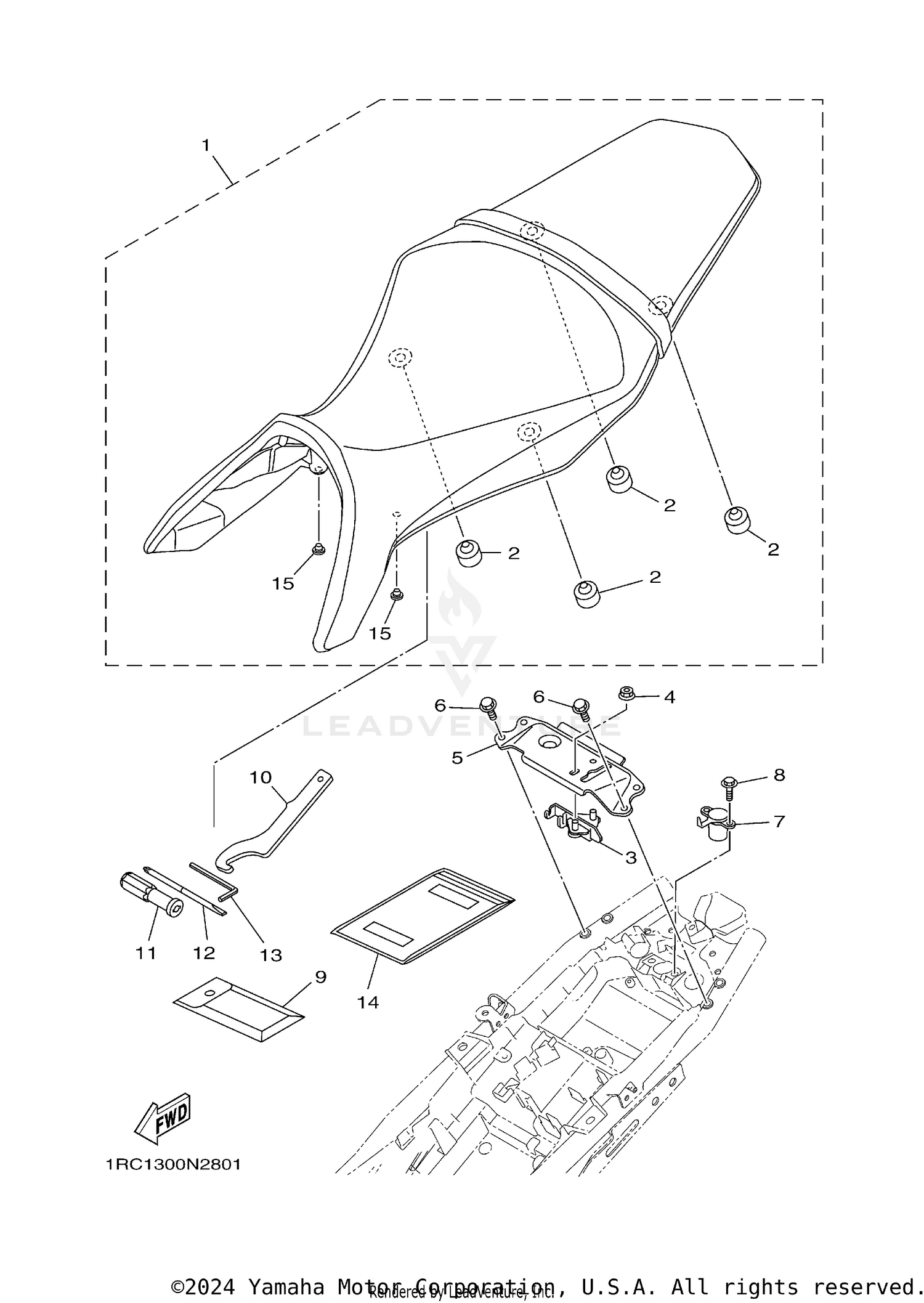

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSY
1RC-24730-00-00
Superseded by 1RC-24730-01-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STOPPER, MAIN STAND
4GL-27114-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT LOCK ASSY
4BP-24780-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT LOCK
1RC-2478X-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROTOR SET
1RC-W2470-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95022-06014-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
TOOL KIT
1RC-28100-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPANNER, SPECIAL
1RC-28135-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRIP, DRIVER
2H7-28151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DRIVER
2GV-28152-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WRENCH, HEXAGON 8
1L9-28165-00-00
Superseded by 23P-28164-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
POUCH
4KG-28186-10-00
Superseded by 4KG-28186-11-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG
90338-07157-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
