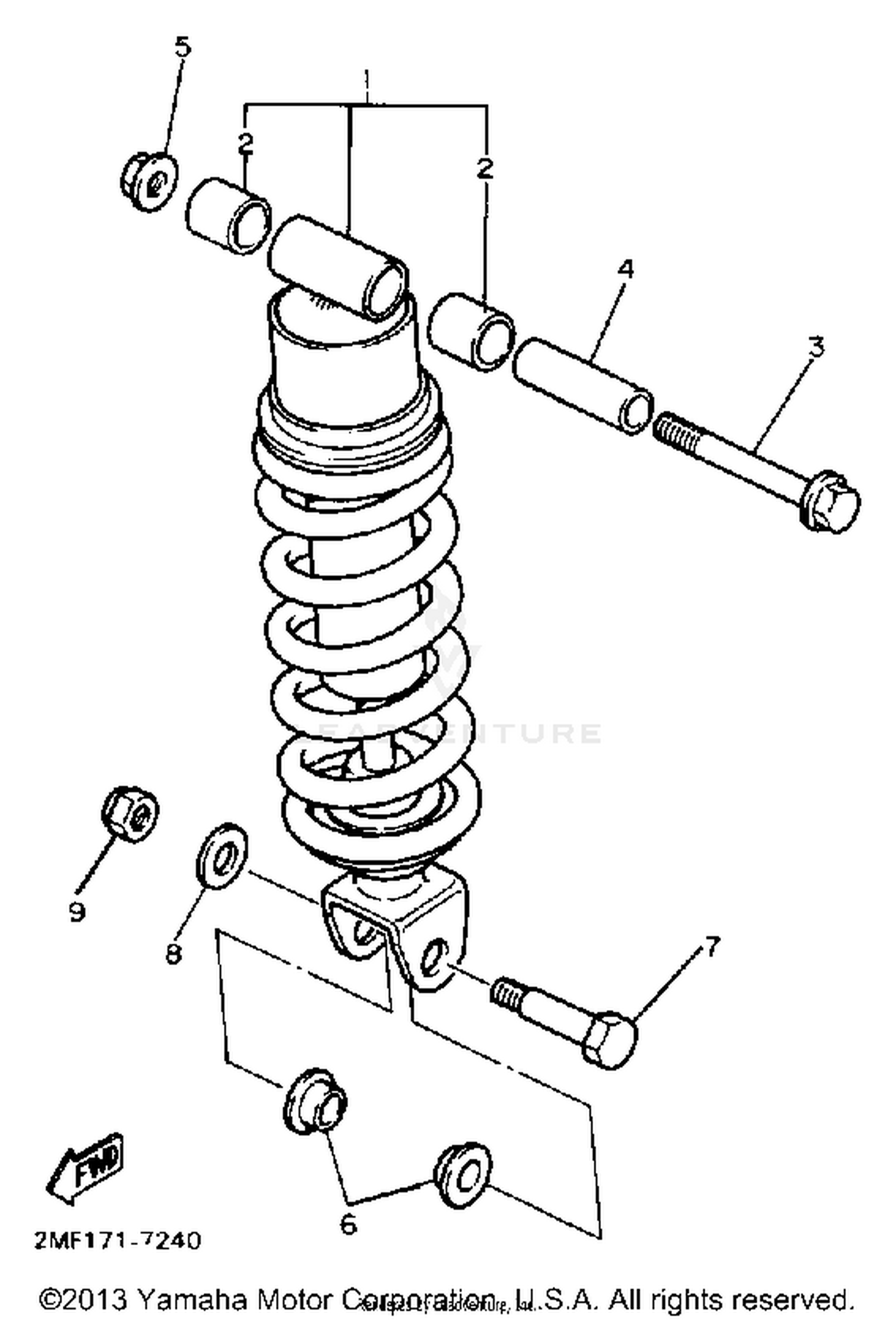

Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK\ABS ASSEMBLY, REAR
2KT-22210-01-00
|
$451.99 | ||
|
Unavailable |
|||
|
#2
BUSH, BIMETAL FORMED
90384-18157-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-12382-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-127H0-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
90185-12072-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-124L0-00
|
$14.49 | ||
|
Unavailable |
|||
|
#7
BOLT
90101-10659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-10437-00
Superseded by 90201-105R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U
95611-10100-00
Superseded by 95614-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
