1988 Yamaha FZ750U REAR WHEEL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+

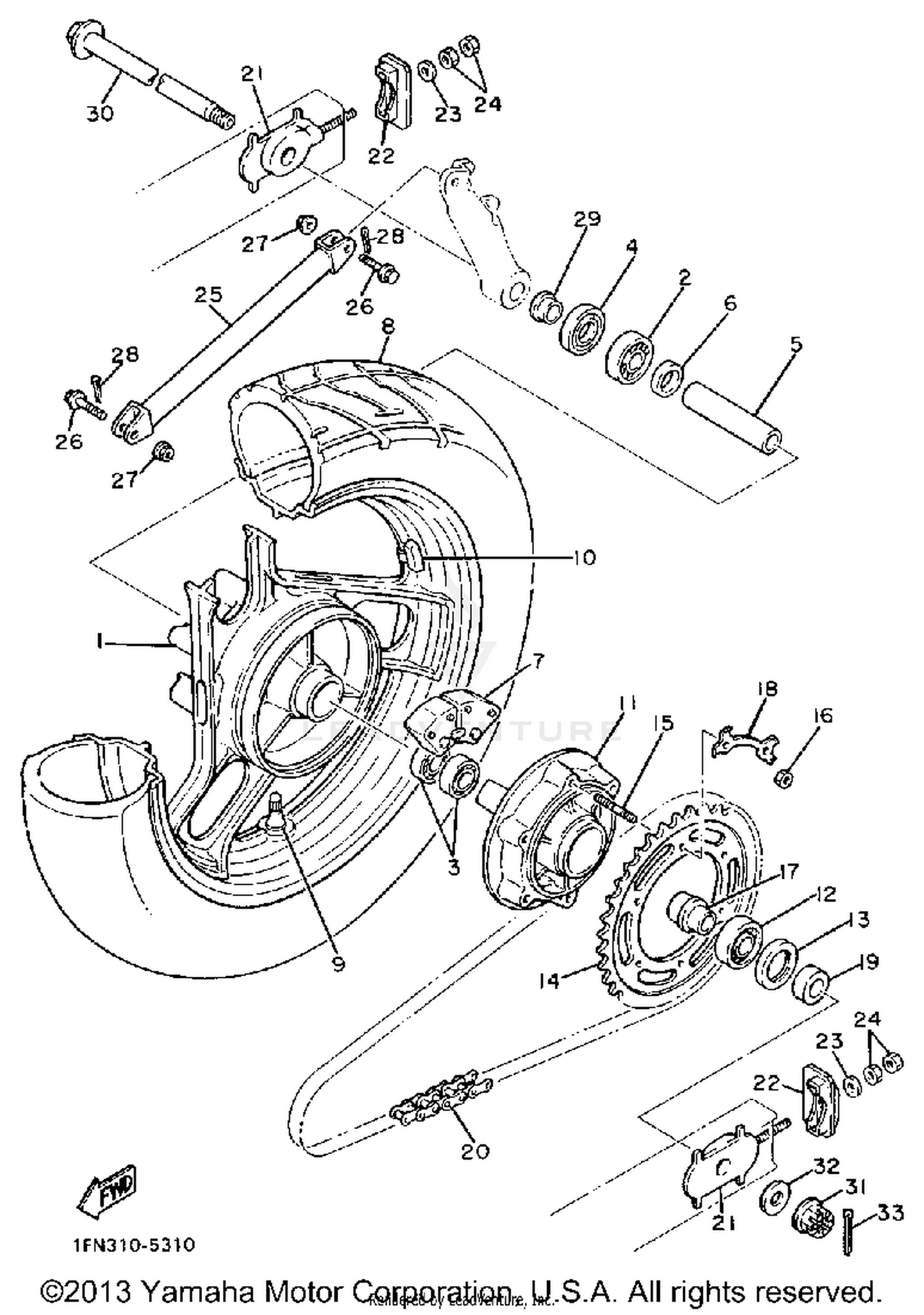

| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
1AE-25338-20-UA
|
$574.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-20310-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-25044-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-173M5-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLANGE, SPACER
146-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER
1UF-25364-00-00
Superseded by 4BP-25364-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
130/80-V18 V250DUN (130/80 V18-
94113-180R8-00
|
$115.99 | ||
|
Unavailable |
|||
|
#9
VALVE, RIM (TR412)
93900-00030-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH, HUB
1UF-25366-00-00
|
$176.99 | ||
|
Unavailable |
|||
|
#12
BEARING
93306-37203-00
Superseded by 93306-37207-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93105-42024-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPROCKET, DRVN43T (43T)
1UF-25443-20-00
|
$52.99 | ||
|
Unavailable |
|||
|
#15
BOLT, STUD
90116-10482-00
Superseded by 90116-10467-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-177K0-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
1UF-25412-00-00
Superseded by 2AK-25412-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-177K1-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CHAIN (DID50VA7-110L
94580-79110-00
Superseded by 94581-59110-00
|
$380.99 | ||
|
Available to order. Add to View Price |
|||
|
#
RK50-110L4F021
94570-98110-00
|
$163.99 | ||
|
Unavailable |
|||
|
#21
PULLER, CHAIN 1
46X-25388-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PULLER, CHAIN 2
36Y-25389-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95333-08600-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAR, TENSION
1AE-25371-00-00
Superseded by 1AE-25371-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
90105-08321-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-177Y4-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
AXLE, WHEEL
1AE-25381-00-00
Superseded by 1AE-25381-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#31
NUT, CASTLE
90171-16024-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-160F6-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
