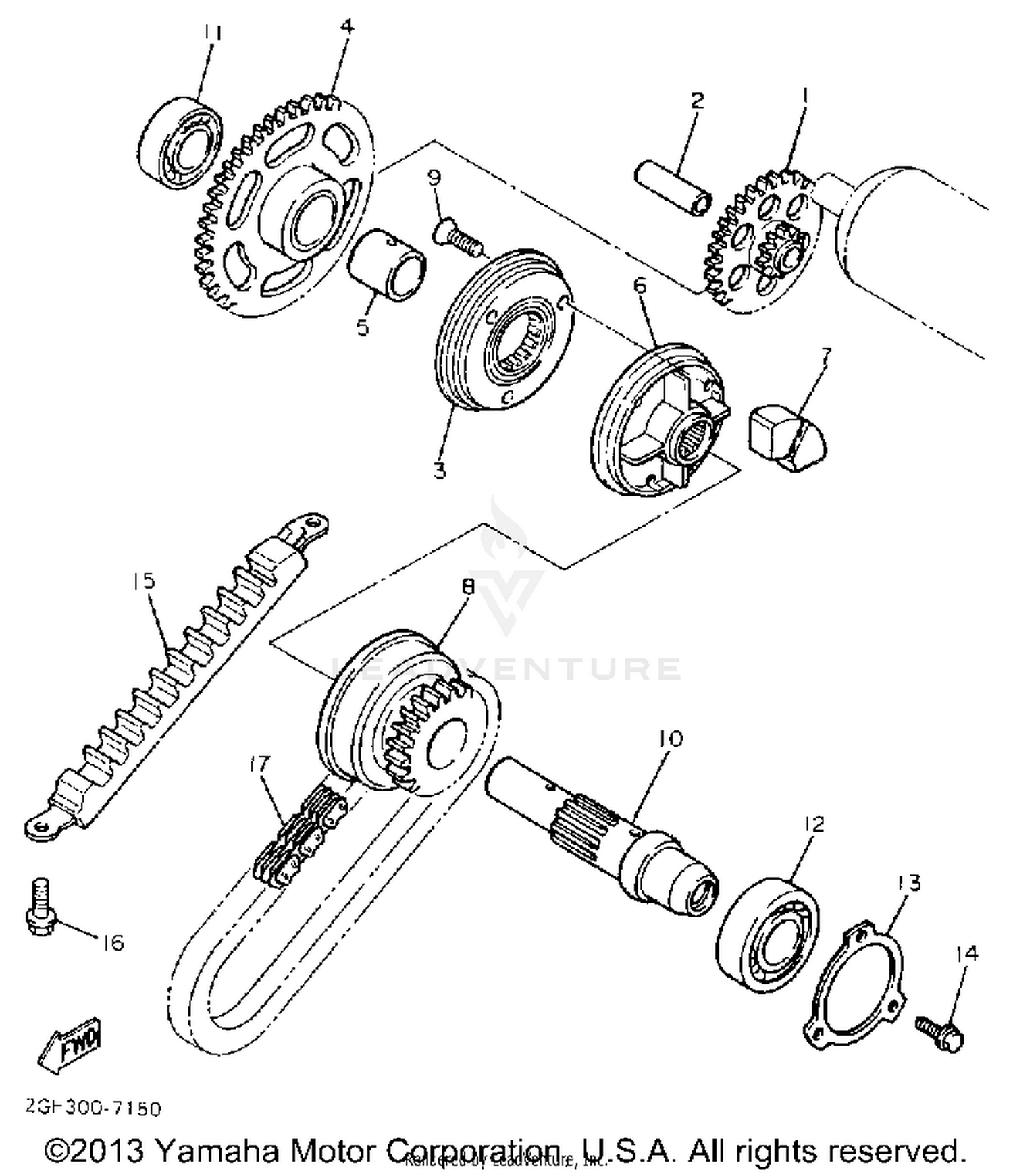

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1
2GH-15512-00-00
|
$46.28 | ||
|
Unavailable |
|||
|
#2
SHAFT 1
1AE-15521-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#3
STARTER CHAIN GUIDASS''Y
2GH-15590-00-00
|
$135.99 | ||
|
Unavailable |
|||
|
#4
GEAR, IDLER 2
2GH-15517-00-00
|
$89.94 | ||
|
Unavailable |
|||
|
#5
COLLAR
90387-202A7-00
|
$19.49 | ||
|
Unavailable |
|||
|
#6
WHEEL, STARTER
2GH-15524-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#7
ABSORBER 1
4H7-16155-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPROCKET, STARTER 2
2GH-15519-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#9
SCREW, COUNTERSUNK
90151-08022-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT 2
1AE-15522-01-00
|
$130.99 | ||
|
Unavailable |
|||
|
#11
BEARING
93306-00435-00
Superseded by 93306-00423-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING (B6205)
93306-20541-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, BEARING COVER
1AE-15381-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
95026-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, UPPER
1AE-11474-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95816-06014-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CHAIN, PRIMARY
36Y-11456-00-00
Superseded by 4FM-11456-00-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
