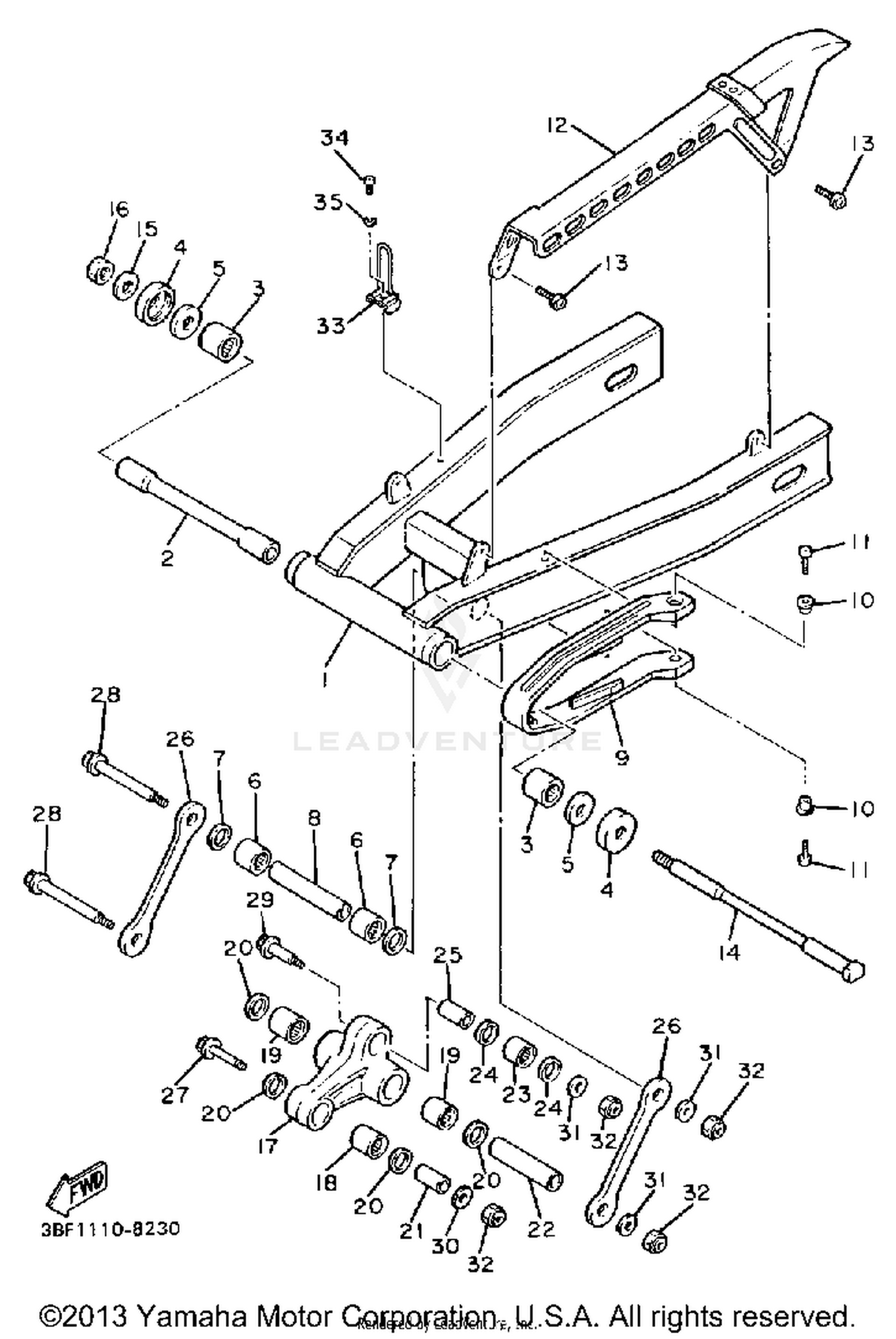

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
3FH-22110-00-00
|
$924.99 | ||
|
Unavailable |
|||
|
#2
BUSH
33M-22184-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93320-32403-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, THRUST 2
47X-22129-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-161J2-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93317-21746-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (SDO 17-24-4)
93109-17048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-122R5-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
UNAVAILABLE IN PRICE BOOK
1WG-21151-00-00
|
|||
|
Unavailable |
|||
|
#10
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CHAIN CASE ASSEMBLY
1WG-22310-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#13
SCREW, WITH WASHER
90159-06084-00
Superseded by 90159-06082-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, PIVOT
46X-22141-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-14740-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM, RELAY
1WG-2217A-00-00
|
$261.99 | ||
|
Unavailable |
|||
|
#18
BEARING
93317-31701-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93317-21746-00
|
$31.99 | ||
|
Unavailable |
|||
|
#20
OIL SEAL (SDO 17-24-4)
93109-17048-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
COLLAR
90387-102R4-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-122R5-00
|
$18.99 | ||
|
Unavailable |
|||
|
#23
BEARING
93399-99919-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93101-16131-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-124L0-00
|
$14.49 | ||
|
Unavailable |
|||
|
#26
ARM 1
1WG-2217M-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
90105-10376-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90101-10658-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90101-10659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, U
95611-10100-00
Superseded by 95614-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOLDER, BRKE HOSE 1
2GH-25875-50-00
|
$37.99 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
