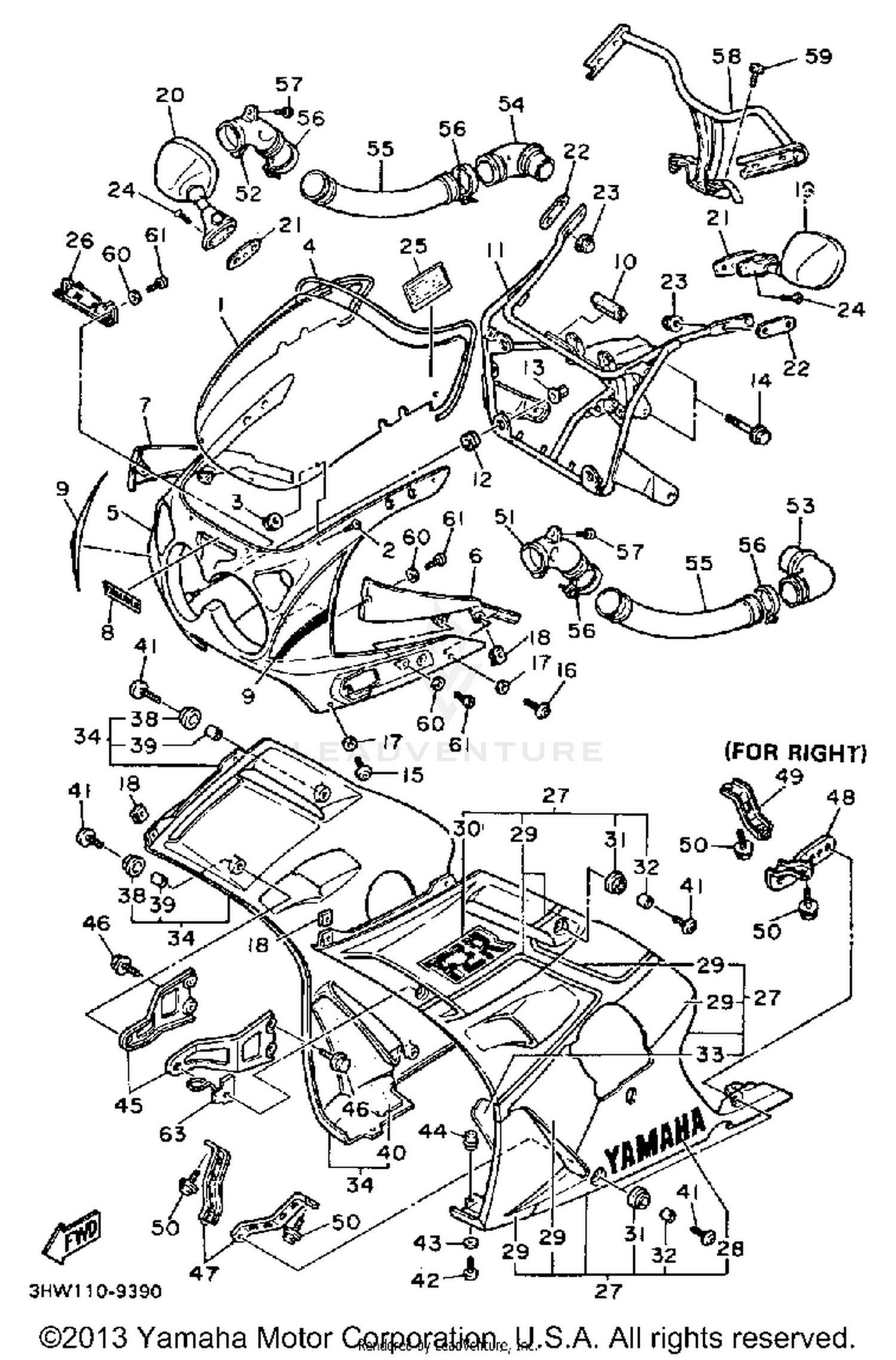

Cowling 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINDSHIELD
3HH-28381-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#2
SCREW, ROUND HEAD
90150-05020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, FLANGE
95706-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOLE 4
36Y-28348-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY, FRONT UPPER 1
3HE-2835G-00-GE
|
$447.99 | ||
|
Unavailable |
|||
|
#
BODY, FRONT UPPER 1
3HE-2835G-00-7M
|
$434.99 | ||
|
Unavailable |
|||
|
#6
PANEL 1
3EN-2835U-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#
PANEL 1
3EN-2835U-20-00
|
$53.99 | ||
|
Unavailable |
|||
|
#7
PANEL 2
3EN-2835V-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#
PANEL 2
3EN-2835V-20-00
|
$53.99 | ||
|
Unavailable |
|||
|
#8
EMBLEM, YAMAHA
99233-00020-00
Superseded by 99243-00080-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM, YAMAHA
99236-00020-00
Superseded by 99246-00080-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRPHC SET, COWLING
3HE-28390-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#10
DAMPER, HEADLIGHT (2XJ-84345-00
5X4-14462-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY 1
3HE-28356-10-00
|
$288.99 | ||
|
Unavailable |
|||
|
#12
GROMMET
90480-14229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95816-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,HEX. SOCKET BUT
90110-05079-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
REAR VIEW MIRROR ASSY (LEFT)
3HE-26280-00-00
Superseded by 3HE-26280-01-00
|
$163.99 | ||
|
Unavailable |
|||
|
#
REAR VIEW MIRROR ASSEMBLY (LEFT
3HE-26280-10-00
|
$87.99 | ||
|
Unavailable |
|||
|
#20
REAR VIEW MIRROR ASSEMBLY (RIGH
3HE-26290-00-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#
REAR VIEW MIRROR ASSEMBLY (RIGH
3HE-26290-10-00
|
$87.99 | ||
|
Unavailable |
|||
|
#21
PLATE, MIRROR FITTING 1
1AE-26298-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, MIRROR FITTING 1
3CV-26298-00-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, FLAT HEAD
98706-06025-00
Superseded by 98707-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
LABEL, CAUTION
3CK-2835Y-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#26
LID
3EN-28313-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#27
BODY, FRONT LOWER1
3HE-Y283J-01-2X
|
$353.99 | ||
|
Unavailable |
|||
|
#
BODY, FRONT LOWER1
3HE-Y283J-21-6G
|
$535.99 | ||
|
Unavailable |
|||
|
#28
EMBLEM
99233-00065-00
Superseded by 99233-00240-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM, YAMAHA
99236-00065-00
Superseded by 99246-00240-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GRAPHICSET3 COWLIN
3HE-2836V-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#
GRAPHICSET3 COWLIN
3HE-2836V-20-00
|
$62.99 | ||
|
Unavailable |
|||
|
#30
EMBLEM
3HE-28328-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#31
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-067K6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAT 2
3HE-2848K-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#34
BODY, FRONT LOWER2
3HE-Y283K-00-2X
|
$535.99 | ||
|
Unavailable |
|||
|
#
BODY, FRONT LOWER2
3HE-Y283K-21-6G
|
$535.99 | ||
|
Unavailable |
|||
|
#35
EMBLEM
99233-00065-00
Superseded by 99233-00240-00
|
$25.99 | ||
|
Unavailable |
|||
|
#
EMBLEM, YAMAHA
99236-00065-00
Superseded by 99246-00240-00
|
$19.49 | ||
|
Unavailable |
|||
|
#36
GRAPHICSET4 COWLIN
3HE-2836W-00-00
|
$91.99 | ||
|
Unavailable |
|||
|
#
GRAPHICSET4 COWLIN
3HE-2836W-20-00
|
$62.99 | ||
|
Unavailable |
|||
|
#37
EMBLEM
3HE-28338-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#38
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
COLLAR
90387-067K6-00
|
$9.49 | ||
|
Unavailable |
|||
|
#40
SEAT 3
3HE-2848L-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
90110-06078-00
Superseded by 90110-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW
90149-05224-00
Superseded by 90149-05299-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Unavailable |
|||
|
#44
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
STAY, SIDE 1
3HE-2831U-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#46
BOLT, FLANGE
91026-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#47
BRACKET 1
1WG-2836A-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#48
BRACKET 1
3EN-2836A-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#49
BRACKET 2
1WG-2836E-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#50
BOLT,FLANGE
91026-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#51
DUCT 1
3EN-2838N-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#52
DUCT 2
3EN-2838R-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#53
DUCT 3
3EN-2838T-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#54
DUCT 4
3EN-2838U-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#55
DUCT 5
3HE-2838J-01-00
|
$121.99 | ||
|
Unavailable |
|||
|
#56
CLAMP, HOSE
90460-49058-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
SCREW, BINDING
90154-06046-00
|
$0.85 | ||
|
Unavailable |
|||
|
#58
STAY, MIRROR 1
3HE-2831W-00-00
|
$138.71 | ||
|
Unavailable |
|||
|
#59
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#60
WASHER
92906-05200-00
Superseded by 92907-05200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#61
SCREW, TAPPING
97706-50614-00
Superseded by 97707-50614-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
EMBLEM 1REF. 27, 34
3HW-21781-20-00
|
$18.99 | ||
|
Unavailable |
|||
|
#63
HOLDER
3HE-21596-00-00
|
$28.99 | ||
|
Unavailable |
|||
