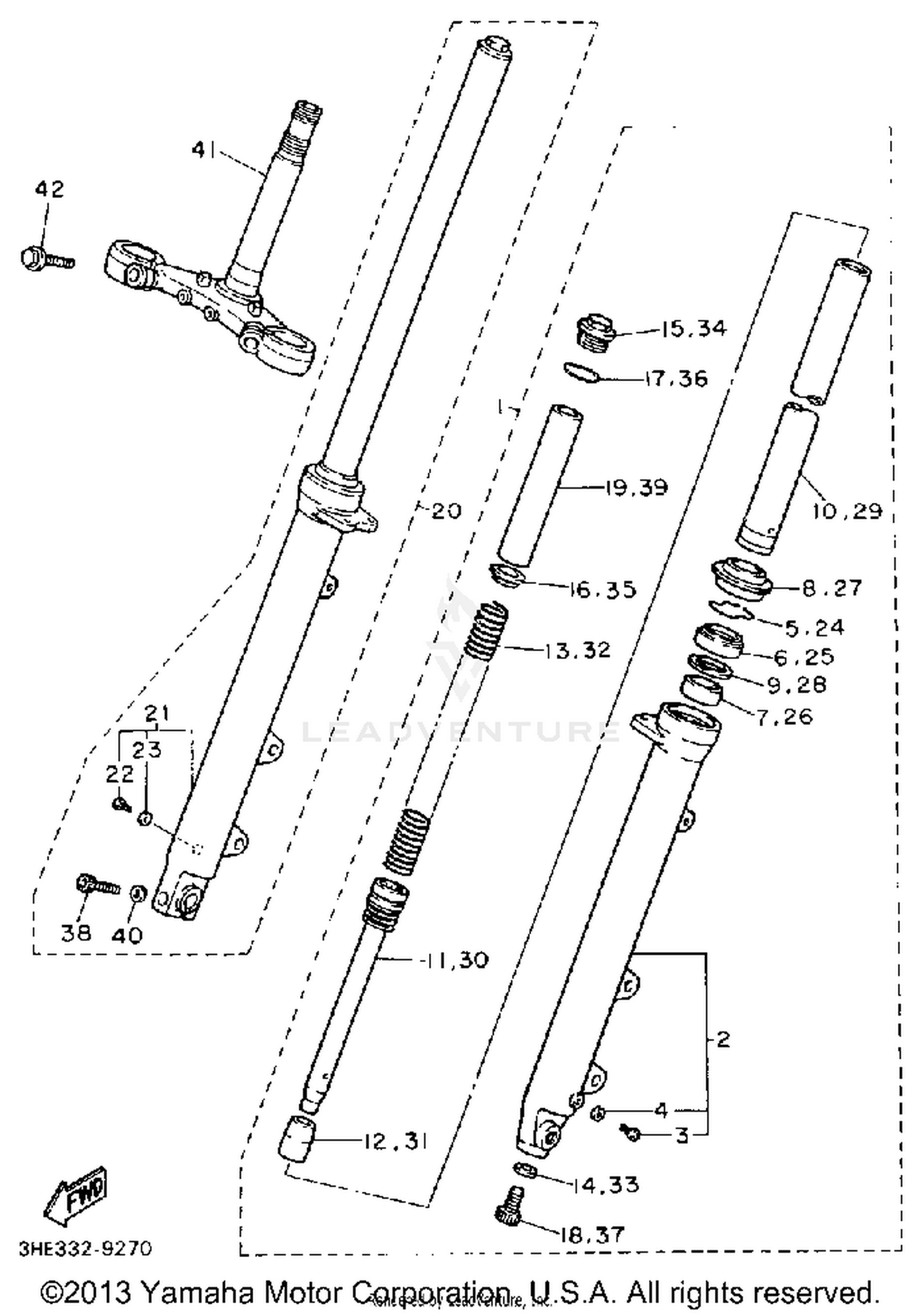

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY (L.H)
3HE-23102-10-00
Superseded by 3HE-23102-12-00
|
$751.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (LEFT)
3HE-23126-10-00
|
$572.99 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
3EN-23145-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
METAL, SLIDE 1
2YK-23125-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, DUST
3EN-23144-00-00
Superseded by 3EN-23144-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, OIL SEAL
4V2-23146-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
INNER TUBE COMP. 1
3BF-23110-50-00
|
$351.99 | ||
|
Unavailable |
|||
|
#11
CYLINDER COMP., FRONT FORK
3HE-23170-00-00
|
$254.99 | ||
|
Unavailable |
|||
|
#12
SPINDLE, TAPER
2YK-23173-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FRONT FORK
3HE-23141-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#14
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
3EN-23111-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAT, SPRING UPPER
1FK-23142-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
GASKET
1W4-23114-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
1WG-23118-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#20
FRONT FORK ASSEMBLY (R.H)
3HE-23103-10-00
Superseded by 3HE-23103-12-00
|
$751.99 | ||
|
Unavailable |
|||
|
#21
TUBE, OUTER (RIGHT)
3HE-23136-10-00
|
$738.99 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#23
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
OIL SEAL
3EN-23145-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#26
METAL, SLIDE 1
2YK-23125-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#27
SEAL, DUST
3EN-23144-00-00
Superseded by 3EN-23144-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#28
WASHER, OIL SEAL
4V2-23146-L0-00
|
$27.99 | ||
|
Unavailable |
|||
|
#29
INNER TUBE COMP. 1
3BF-23110-50-00
|
$351.99 | ||
|
Unavailable |
|||
|
#30
CYLINDER COMP., FRONT FORK
3HE-23170-00-00
|
$254.99 | ||
|
Unavailable |
|||
|
#31
SPINDLE, TAPER
2YK-23173-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#32
SPRING, FRONT FORK
3HE-23141-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#33
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#34
BOLT, CAP
3EN-23111-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#35
SEAT, SPRING UPPER
1FK-23142-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
GASKET
1W4-23114-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#38
BOLT, HEXAGON SOCKET HEAD
1WG-23128-00-00
Superseded by 91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPACER
1WG-23118-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90201-08085-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
UNDER BRACKET COMP.
1WG-23340-00-00
Superseded by 1WG-23340-01-00
|
$357.99 | ||
|
Unavailable |
|||
|
#42
BOLT 2
2NX-23356-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
