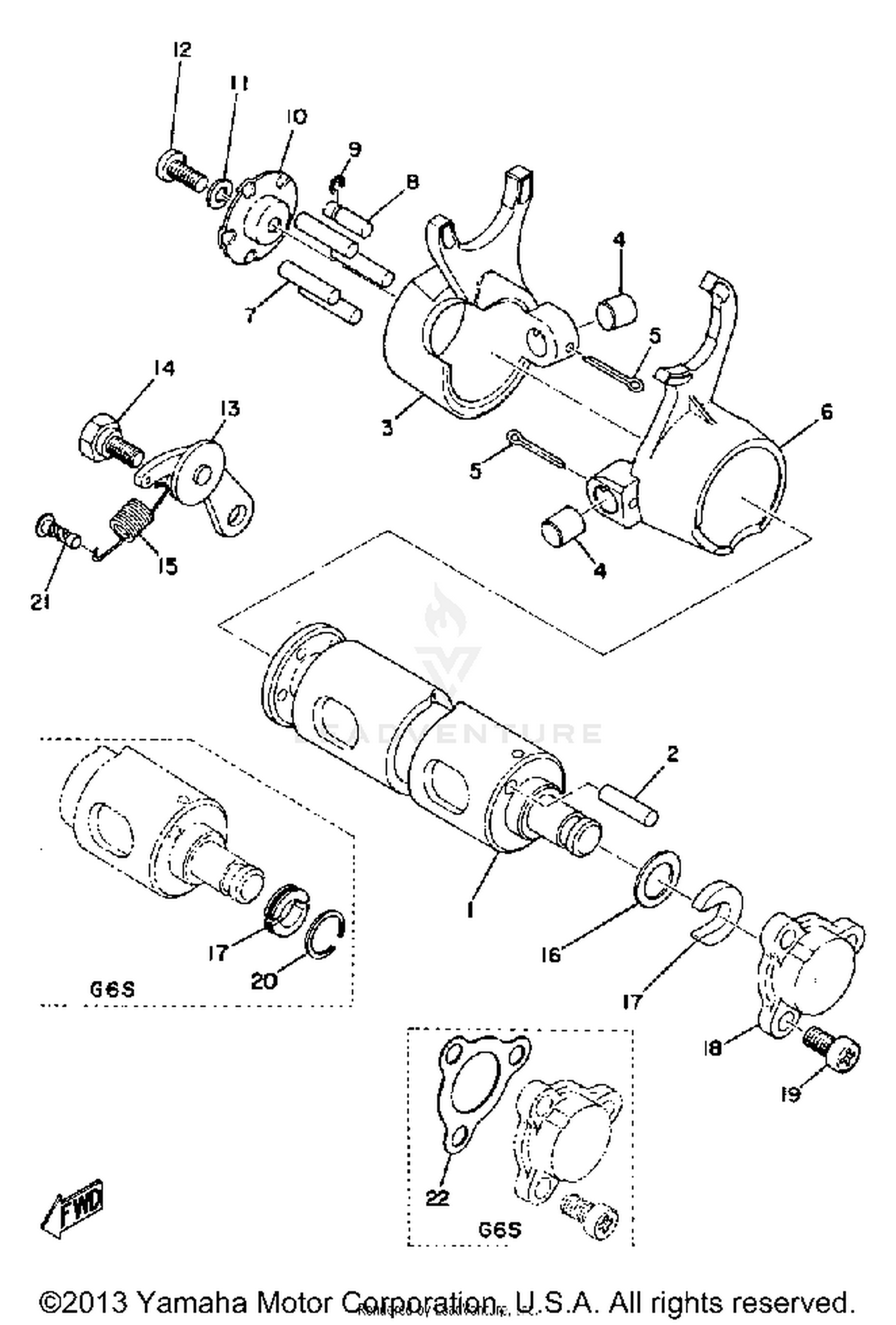

1972 Yamaha G7S SHIFTER A OEM Parts Diagram
Air & Fuel
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFTER ASSEMBLY
166-18500-63-00
|
$47.99 | ||
|
Unavailable |
|||
|
#
CAM, SHIFT
166-W1854-63-00
|
$17.49 | ||
|
Unavailable |
|||
|
#2
UNAVAILABLE IN PRICE BOOK
93065-20043-00
|
|||
|
Unavailable |
|||
|
#3
FORK, SHIFT 2
164-18512-00-00
|
$13.78 | ||
|
Unavailable |
|||
|
#4
PIN, STRAIGHT
90250-10020-00
|
$1.65 | ||
|
Unavailable |
|||
|
#5
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
FORK, SHIFT 1
164-18511-00-00
|
$13.78 | ||
|
Unavailable |
|||
|
#7
PIN, DOWEL
93604-22050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SPEC''L SHAPE (174-18544
90249-04039-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP, E-TYPE
93430-03014-00
|
$2.25 | ||
|
Unavailable |
|||
|
#10
PLATE, SIDE 1
164-18561-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-05012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STOPPER LEVER ASSEMBLY
132-18140-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-06001-00
Superseded by 90109-06239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TENSION
90506-09112-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-12166-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, SHIFT CAM
307-18571-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#
HOLDER, SHIFT CAM
164-18571-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, BLIND
164-18589-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93440-15012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOOK, SPRING
132-16346-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, PLUG BLIND
4Y2-18579-00-00
Superseded by 4EG-18579-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
