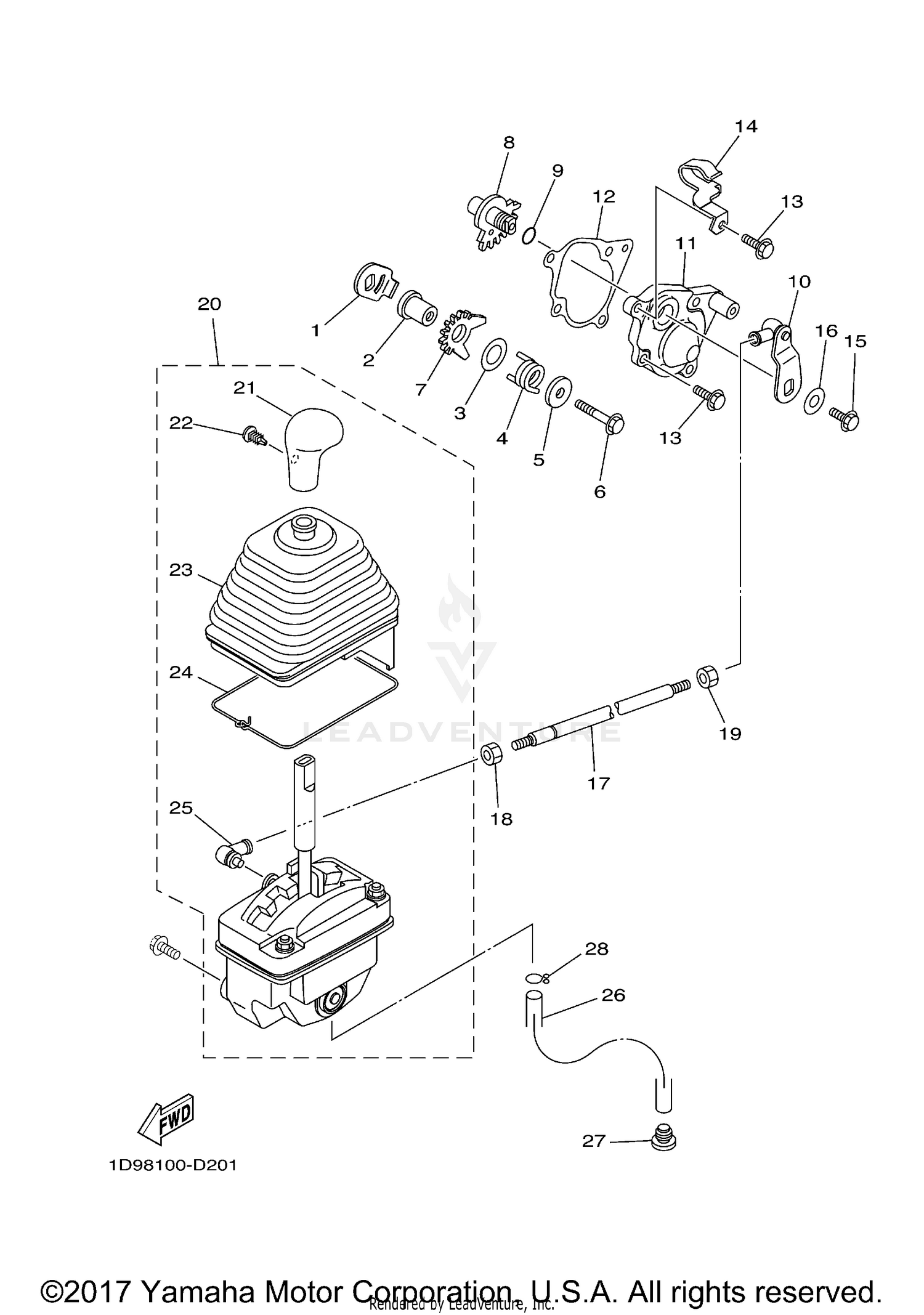

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER
4SH-18198-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-0613B-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-132G5-00
Superseded by 90201-13013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-35764-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06036-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95812-06035-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER
5KM-18191-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT
5GH-18197-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-11073-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFT GUIDE COMP.
5GH-18104-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SHIFT SHAFT
5GH-18129-01-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
5GH-18146-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97080-06020-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90465-08336-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,WASHER BASED
90105-06176-00
Superseded by 90105-06175-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-06036-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
ROD, SHIFT
5GH-18115-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90170-08358-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95302-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIFTER ASSY
5GH-18300-02-00
Superseded by 5GH-18300-03-00
|
$327.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
KNOB, SHIFT LEVER
5GH-18174-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RIVET
90269-05055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOOT, SEALING
5GH-18131-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
STOPPER,RUBBER
5GH-18617-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT 2
1KT-18157-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE (L90)
90446-16001-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG, DRAIN
5ND-E4191-10-00
|
$0.50 | ||
|
Unavailable |
|||
|
#28
CLIP
90467-150A2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
