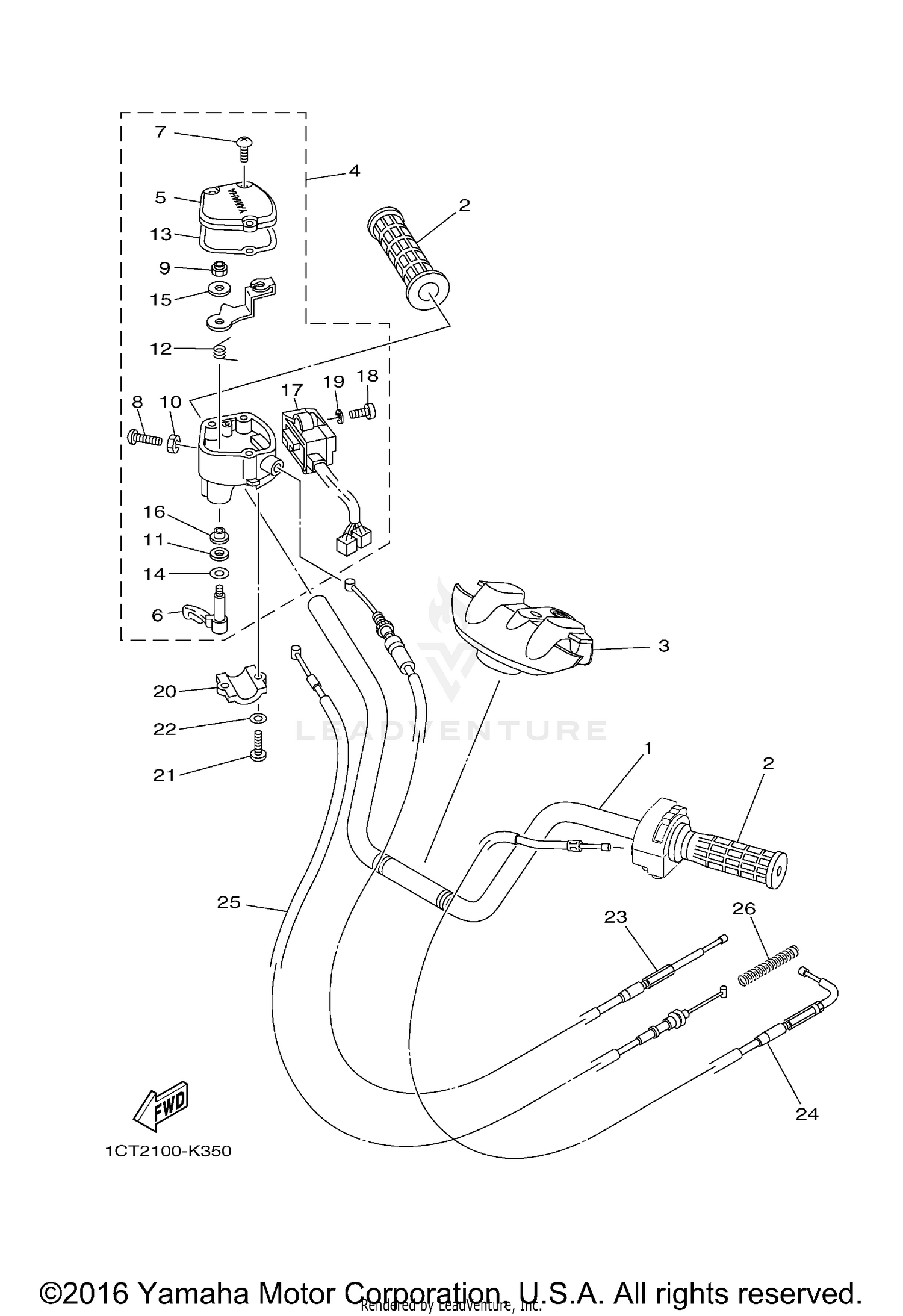

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
5FU-F6111-10-00
Superseded by 5FU-F6111-12-00
|
$66.99 | ||
|
Unavailable |
|||
|
#2
GRIP
5FU-F6241-10-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, HANDLEBAR
5ND-F6124-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
THROTTLE LEVER ASSY
5KM-26250-21-00
Superseded by 5KM-26250-23-00
|
$232.99 | ||
|
Unavailable |
|||
|
#5
CAP, GEAR
4KB-2628F-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER, THROTTLE
1NV-2625G-01-00
Superseded by 1NV-2625G-02-00
|
$60.99 | ||
|
Unavailable |
|||
|
#7
SCREW
90149-04278-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U
95602-05100-00
Superseded by 95617-05100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95307-05700-00
Superseded by 95317-05700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93104-09025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
1NV-26304-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
4KB-2628G-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
1NV-26129-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL
1NV-26398-00-00
Superseded by 53L-83909-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#16
COLLAR
1NV-2625K-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH, HANDLE 1
5KM-83976-20-00
Superseded by 5KM-83976-23-00
|
$117.99 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98502-04016-00
Superseded by 98580-04014-00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98502-05020-00
Superseded by 98517-05020-00
|
$4.16 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE, THROTTLE 1
5GH-26311-10-00
Superseded by 5GH-26311-11-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE,STARTER 1
5VH-F6331-00-00
Superseded by 5VH-F6331-01-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WIRE, BRAKE 1
1CT-F6341-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, COMPRESSION
90501-10782-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
