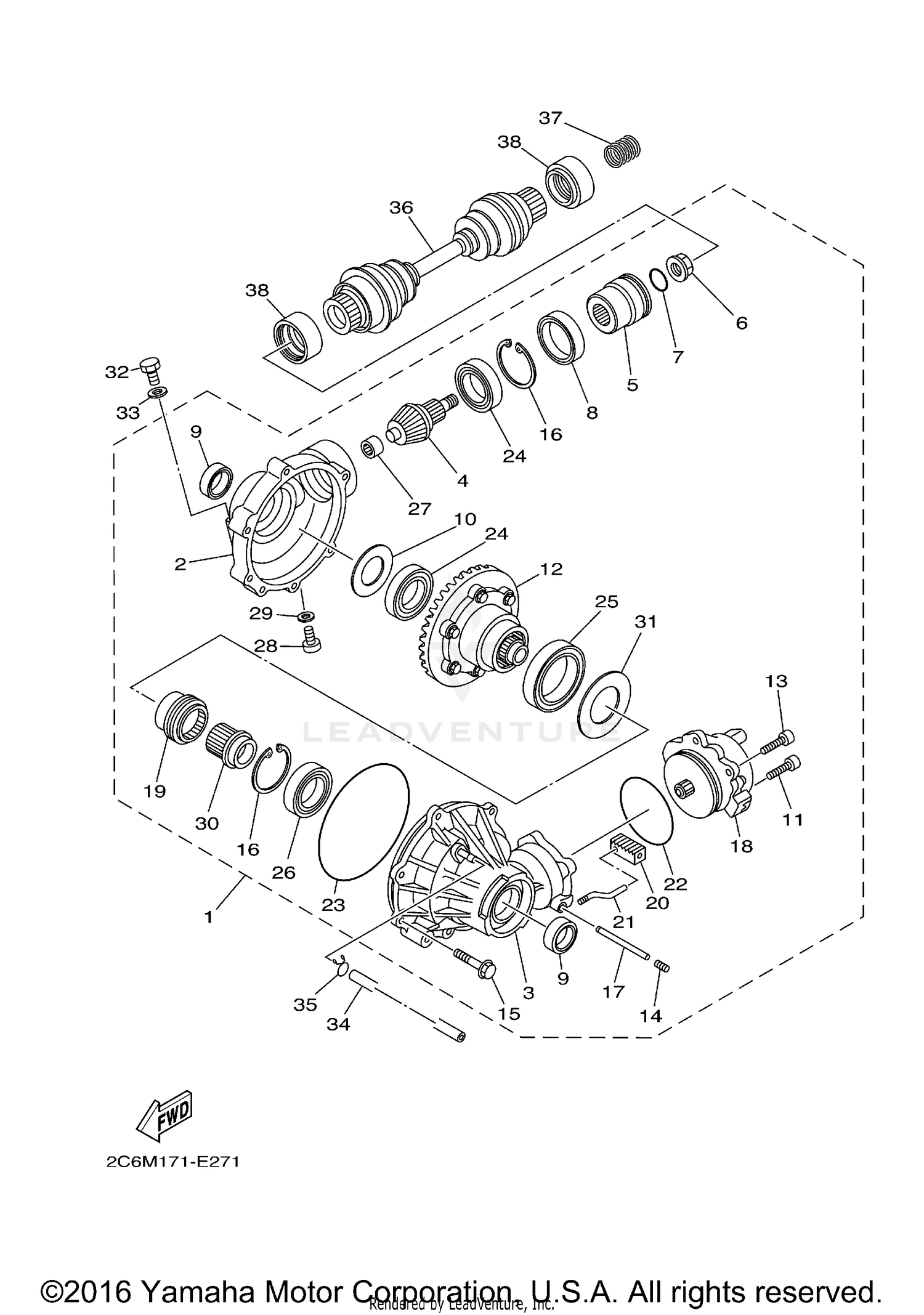

Front Differential Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT AXLE GEAR CASE
5KM-46160-14-00
Superseded by 5KM-46160-15-00
|
$1,472.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOUSING, SHAFT DRIVE 2
5KM-46161-00-00
|
$215.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, BEARING 2
5KM-46162-00-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PINION, DRIVE 2
5KM-46141-13-00
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUPLING
5KM-67839-01-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT 1
4WV-46145-10-00
Superseded by 4WV-46145-11-00
|
$11.49 | ||
|
Unavailable |
|||
|
#7
O-RING
93210-14359-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93105-46001-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, OIL 1
93102-24034-00
Superseded by 3B4-46163-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, THRUST (1.0T)
4WV-46119-51-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.5T)
4WV-46119-41-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.4T)
4WV-46119-31-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.3T)
4WV-46119-21-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.2T)
4WV-46119-11-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.1T)
4WV-46119-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT 1
5KM-46155-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LIMITED SLIP DIFF. ASSY
5KM-46470-12-00
Superseded by 5KM-46470-13-00
|
$893.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. SOCKET HEAD
91317-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SET
90113-08004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT 3
4WV-46159-00-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, HOLE SNAP 2
5KM-46143-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT
5KM-42752-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SERVO MOTOR COMP
5KM-4616A-02-00
|
$609.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLUTCH, DRIVEN
5KM-46441-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHAFT 2
5KM-18319-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FORK, SHIFT 4
5KM-18514-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-82001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93211-40040-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-00709-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93306-91201-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING
93316-00702-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING 4
4WV-46167-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG, STRAIGHT SCREW
90340-10001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
90430-10003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
ADAPTER
5KM-46451-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHIM, THRUST (1.5T)
5KM-46119-61-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (1.0T)
5KM-46119-51-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.5T)
5KM-46119-41-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.2T)
5KM-46119-11-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.3T)
5KM-46119-21-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.4T)
5KM-46119-31-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.1T)
5KM-46119-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG, STRAIGHT SCREW
90340-14029-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE (L310)
90445-07371-00
Superseded by 90445-072G8-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90467-07029-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#36
SHAFT, DRIVE 2
5KM-46173-10-00
|
$662.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, COMPRESSION
90501-200A0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SEAL 1
5KM-22358-01-00
Superseded by 5KM-22358-02-00
|
$5.49 | ||
|
Unavailable |
|||
