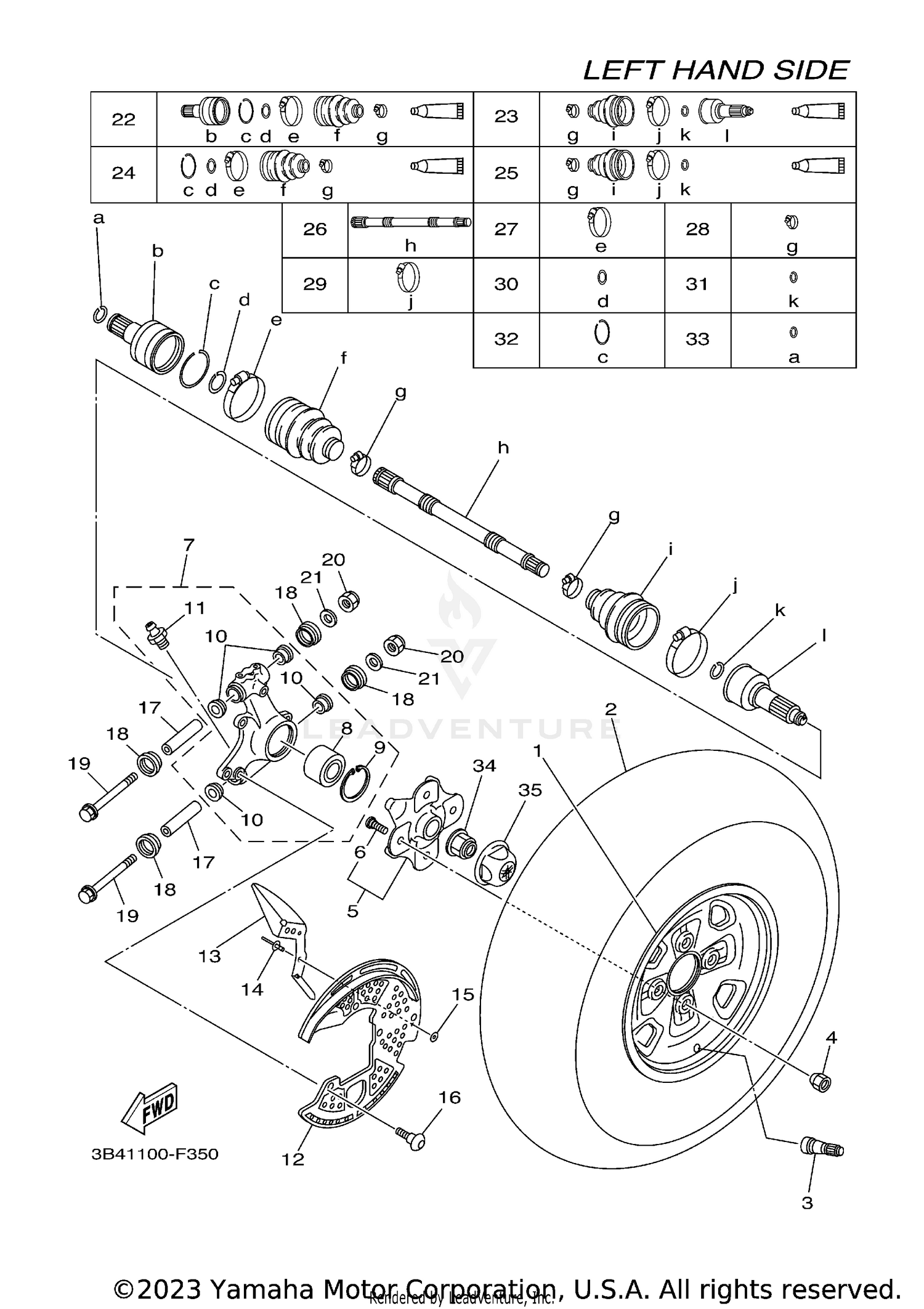

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
3B4-25390-10-00
Superseded by 2BG-F5390-10-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (AT25X10-12 MU20**TL)
94110-12012-00
Superseded by 94110-12814-00
|
$227.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-10007-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB ASSY 2
3B4-25111-00-00
Superseded by B16-F510D-03-00
|
$44.99 | ||
|
Unavailable |
|||
|
#6
BOLT, SERRATION
90114-10010-00
Superseded by 90114-10014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
REAR KNUCKLE ASSY
3B4-2530F-00-00
|
$475.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93305-00602-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99009-55500-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, SOLID
90381-17067-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NIPPLE, GREASE
93700-06004-00
Superseded by 93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, WHEEL 1
3B4-2514A-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE 1
3B4-2539F-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RIVET, BLIND (4.7X16.4 BLACK)
90267-47187-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-04325-00
Superseded by 90201-04027-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, BINDING
90154-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
5KM-23448-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, THRUST 1
2NL-23517-00-00
Superseded by 3JN-23517-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WASHER BASED
90105-10480-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DOUBLE OFF SET JOINT
3B4-2530V-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL JOINT SET
3B4-2510F-00-00
|
$479.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOOT SET (DOUBLE OFFSET JOINT)
3B4-2510H-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOOT SET (BALL JOINT)
3B4-2510G-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHAFT
3B4-2518E-10-00
|
$180.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOOT BAND(DOUBLE OFFSET JOINT)
3B4-2511H-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOOT BAND (SMALL)
3B4-2512G-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOOT BAND (BALL JOINT)
3B4-2511G-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SNAP RING
3B4-2512J-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCLIP
3B4-2512H-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
3B4-25182-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP, SPRING
3B4-2536E-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
90179-20006-00
Superseded by 90179-20016-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAP, WHEEL
3B4-2512A-00-00
Superseded by 1HP-F512A-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
