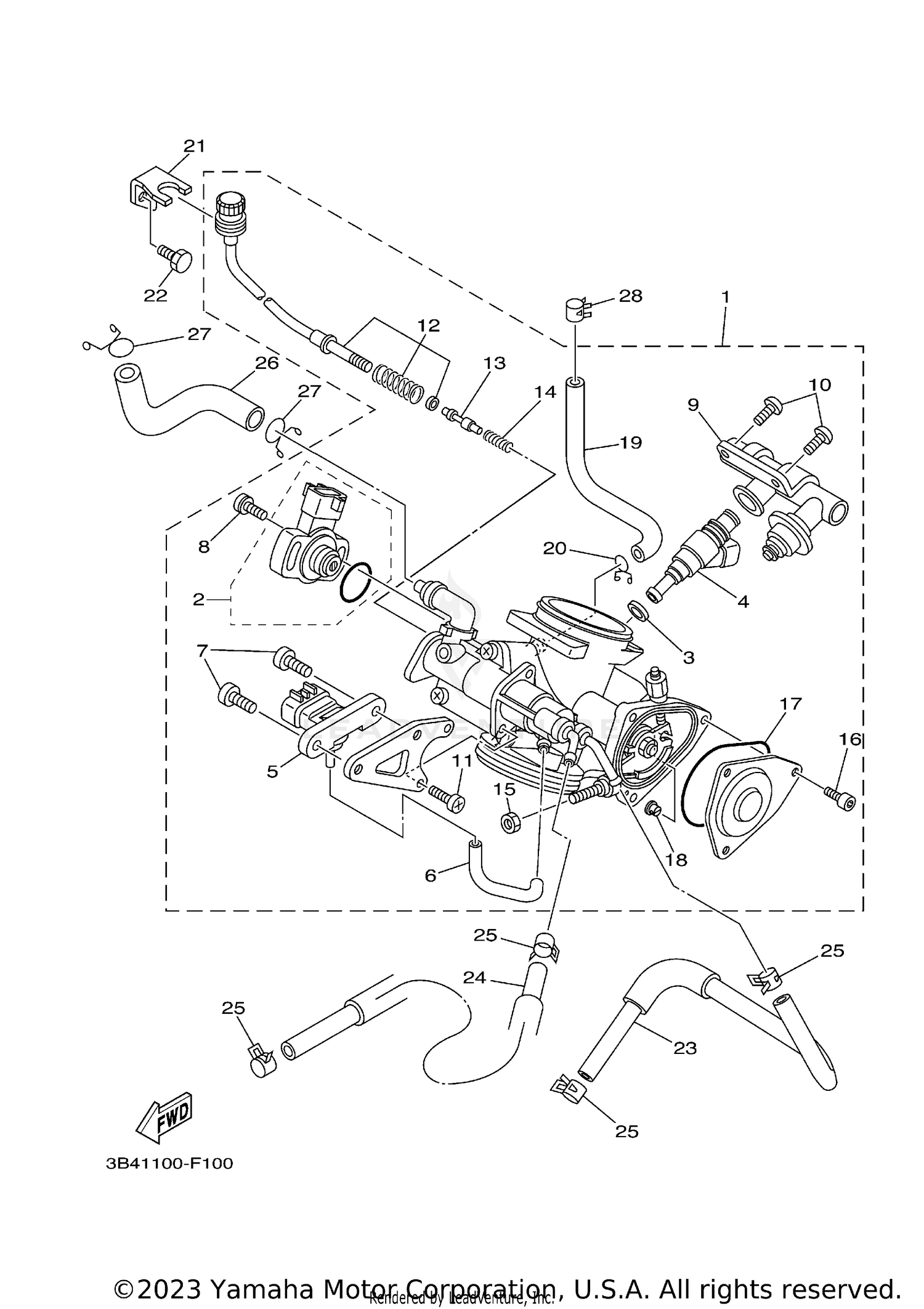

Throttle Body Assy 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY ASSY
3B4-13750-00-00
Superseded by 3B4-13750-03-00
|
$835.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
THROTTLE SENSOR ASSY
3B4-W8588-00-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, INJECTOR
8FP-13556-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
INJECTOR
3B4-13761-00-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SENSOR, PRESSURE
1C7-82380-00-00
|
$176.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE 1
5JW-14348-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98507-06010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
8CC-14216-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DELIVERY PIPE ASSY 1
3B4-13160-00-00
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
ADJUST SCREW SET
3B4-14503-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUNGER
1S3-13493-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, AIR ADJUSTING
4BH-14134-00-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CABLE ADJUSTING
1S3-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91312-04006-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
5LP-14147-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, CABLE END
1UY-14155-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, AIR
3B4-13543-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY
3B4-14413-00-00
|
$2.65 | ||
|
Unavailable |
|||
|
#22
BOLT
97002-06012-00
Superseded by 97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE 1
3B4-1243A-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (L630)
90445-12006-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-110A2-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE 1
3B4-13545-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-140A4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-090A3-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
