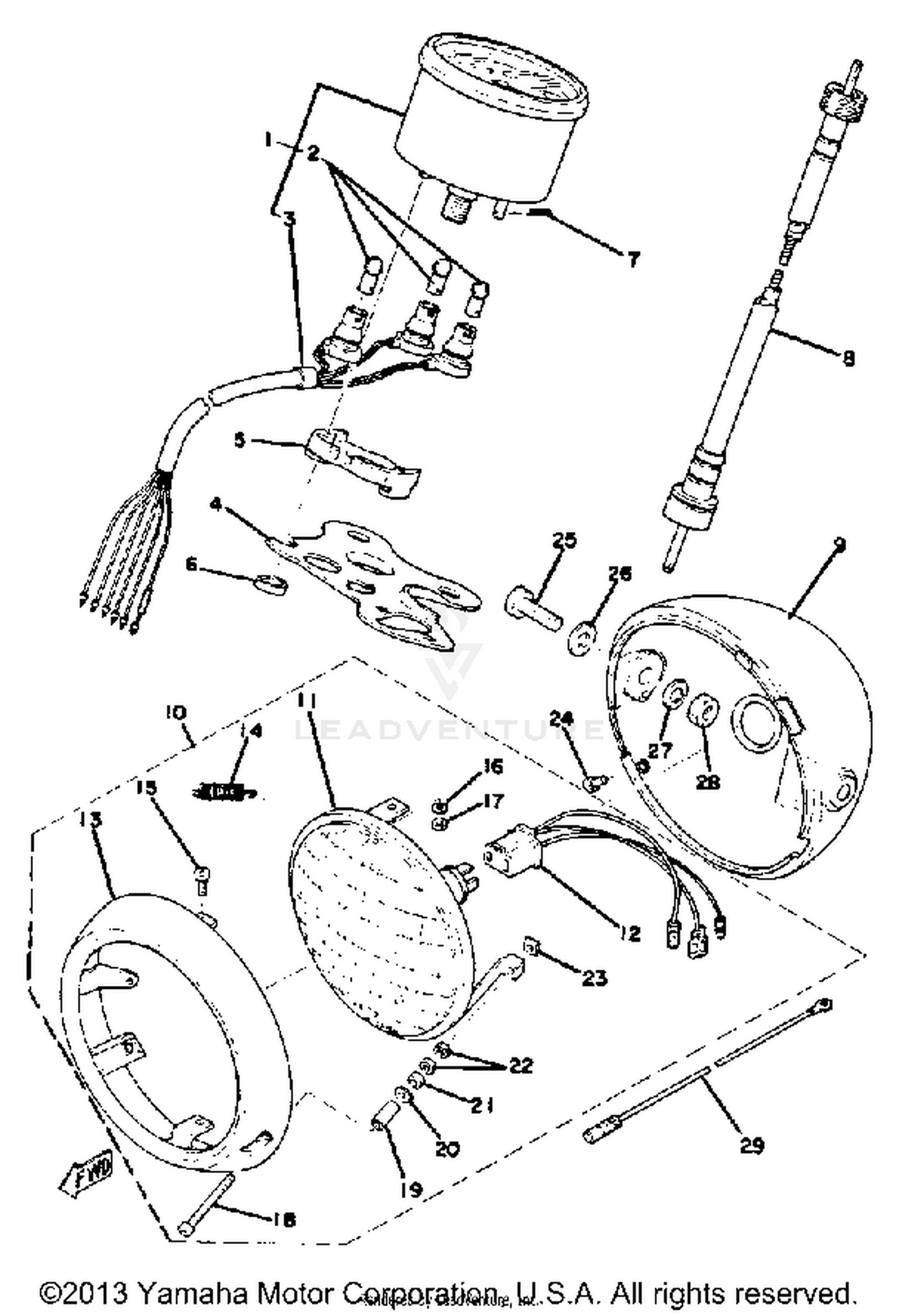

Head Lamp - Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
393-83510-30-00
|
$103.99 | ||
|
Unavailable |
|||
|
#2
BULB
122-83516-10-00
Superseded by 122-83516-10-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
SOCKET CORD ASSEMBLY
393-83520-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, METER
477-83519-00-35
|
$5.86 | ||
|
Unavailable |
|||
|
#5
DAMPER
237-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPEC''L SHAP (214-83524
90209-05029-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPEEDOMETER CABLE
166-83550-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#9
BODY ASSEMBLY, HEADLIGHT
393-84130-61-20
|
$33.99 | ||
|
Unavailable |
|||
|
#11
LENS ASSEMBLY
388-84120-61-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SOCKET
371-84312-60-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RIM, HEADLIGHT
261-84315-61-00
|
$31.41 | ||
|
Unavailable |
|||
|
#14
SPRING
132-84335-60-00
|
$3.05 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95301-04700-00
Superseded by 95380-04700-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, RIM ADJUSTING
198-84331-60-00
|
$3.16 | ||
|
Unavailable |
|||
|
#19
COLLAR, SCREW
233-84133-60-00
|
$3.10 | ||
|
Unavailable |
|||
|
#20
WASHER, PLAIN
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
132-84328-60-00
|
$4.58 | ||
|
Unavailable |
|||
|
#22
NUT
95301-04700-00
Superseded by 95380-04700-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, COUNTERSUNK
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON
97304-08025-00
|
$0.99 | ||
|
Unavailable |
|||
|
#26
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
WIRE, EARTH
393-84313-00-00
|
$0.95 | ||
|
Unavailable |
|||
