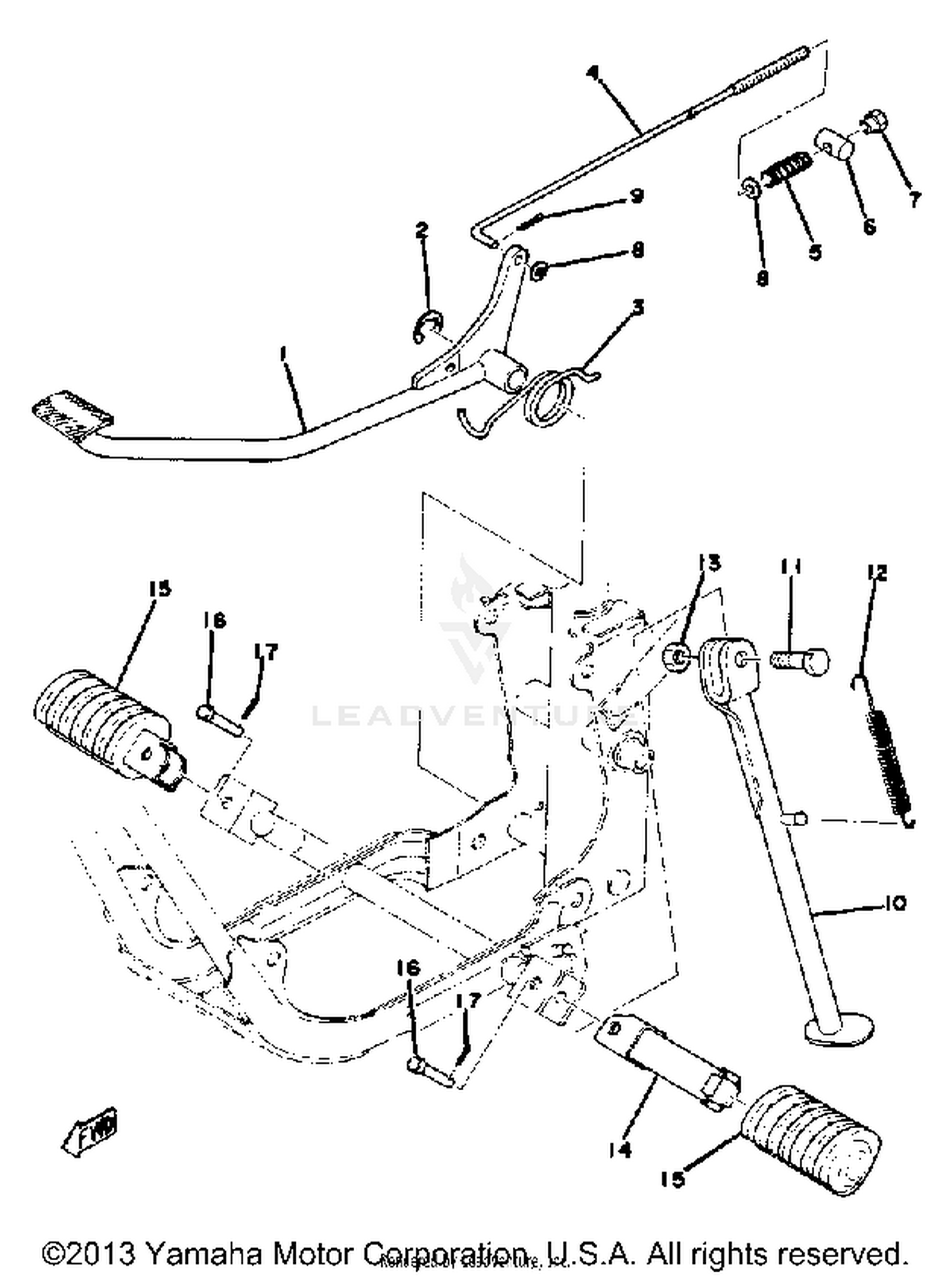

Stand - Footrest - Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
2F4-27211-00-R4
|
$35.99 | ||
|
Unavailable |
|||
|
#2
CIRCLIP
93430-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-32056-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, BRAKE
288-27231-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAND, SIDE
367-27311-02-R4
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-08031-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TENSION
90506-29052-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SELF-LOCKING
90185-08055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FOOTREST 2
214-27421-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, FOOTREST
214-27413-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN
91701-08038-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
