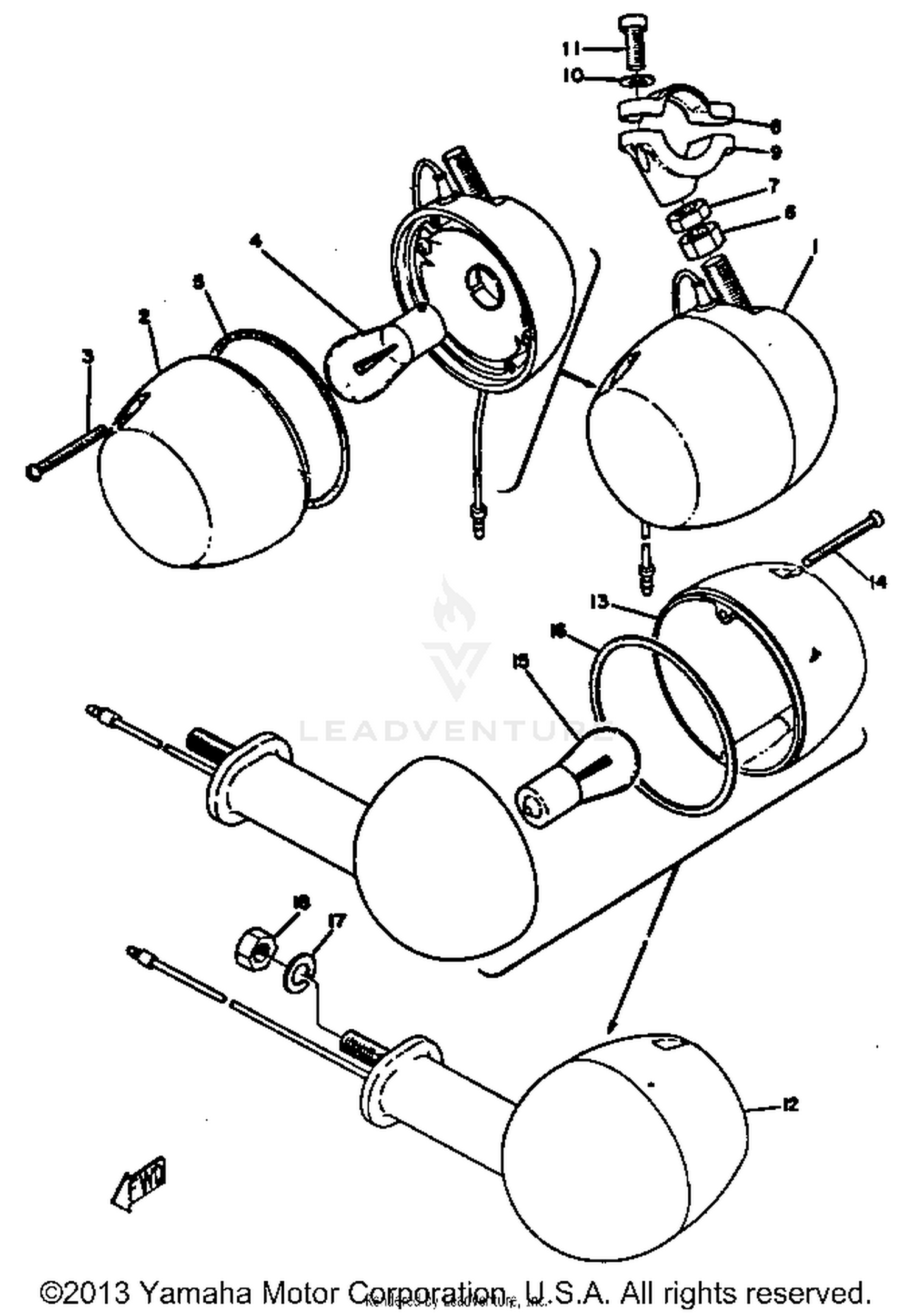

Flasher Lamp (ht1-b) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FLSHR LITE ASSEMBLY
277-83310-60-93
|
$29.99 | ||
|
Unavailable |
|||
|
#2
LENS, FLASHER
183-83312-70-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
UNAVAILABLE IN PRICE BOOK
183-83337-10-0
|
|||
|
Unavailable |
|||
|
#4
BULB 6V21CP(1129)
115-83311-60-00
Superseded by 115-83311-60-XX
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, FLSHR LENS
183-83313-70-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, FLASHER 1
275-83318-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#9
STAY, FLASHER 2
275-83328-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
R FLSHR LITE ASSEMBLY
277-83330-66-93
|
$13.99 | ||
|
Unavailable |
|||
|
#13
LENS, FLASHER
211-83332-75-00
|
$3.75 | ||
|
Unavailable |
|||
|
#14
SCREW, LENS FITTING
183-83333-71-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BULB 6V21CP(1129)
115-83311-60-00
Superseded by 115-83311-60-XX
|
$2.80 | ||
|
Unavailable |
|||
|
#16
GASKET, FLSHR LENS
183-83313-70-00
|
$8.99 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
95333-08600-00
|
$2.44 | ||
|
Unavailable |
|||
