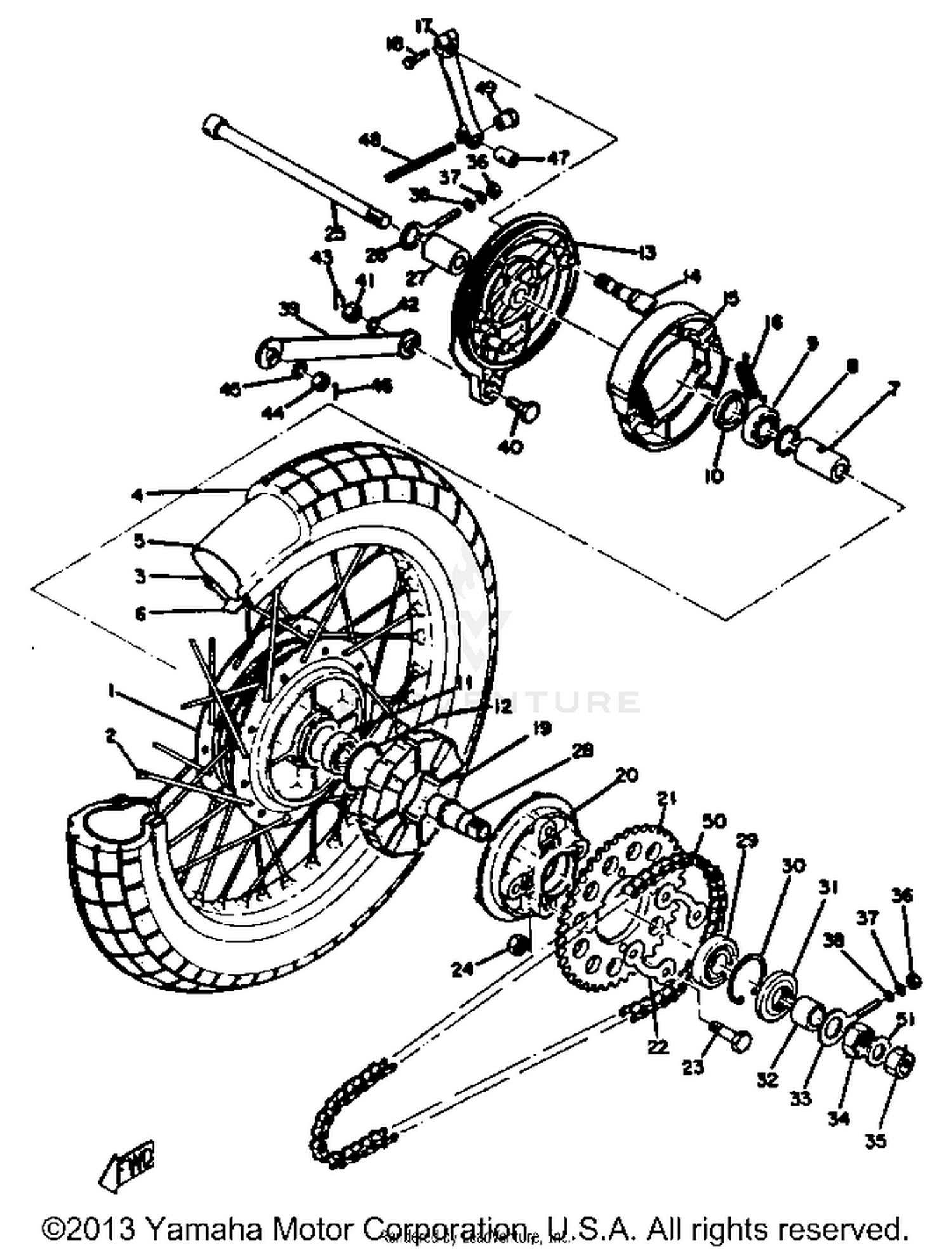

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
195-25311-00-38
|
$102.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
183-25304-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPOKE SET, OUTER 2
183-25397-90-00
|
$7.46 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 2
183-25396-90-00
|
$2.44 | ||
|
Unavailable |
|||
|
#3
RIM 1.60X18
94416-18018-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#
RIM (1.40-18)
94414-18007-00
Superseded by 94414-18545-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
300X18 YOKO Y620
94130-18322-00
|
$24.99 | ||
|
Unavailable |
|||
|
#
325X18 YOKO Y620
94132-18320-00
|
$30.99 | ||
|
Unavailable |
|||
|
#5
TUBE
94230-18084-00
Superseded by 94227-18195-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-12108-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, SPACER
109-25315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30101-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, SO-TYPE
93104-18006-00
|
$6.99 | ||
|
Unavailable |
|||
|
#11
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-42101-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, BRAKE SHOE
276-25321-00-00
|
$23.72 | ||
|
Unavailable |
|||
|
#14
CAMSHAFT
183-25351-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#15
BRAKE SHOE SET
183-W2536-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#16
SPRING, TENSION
90506-17328-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, CAMSHAFT
341-25355-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#18
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER
304-25364-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLUTCH, HUB
58K-25366-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#21
SPROCKET, DRIVN 49T (49T)
276-25449-10-00
|
$85.99 | ||
|
Unavailable |
|||
|
#
STD (HT1BM) PN302SPROCKET, DRIV
276-25452-10-00
|
$49.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRVN45T (45T)
183-25446-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
102-25412-00-00
Superseded by 4AW-25412-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90101-08672-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
AXLE, WHEEL
167-25381-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#26
PULLER, CHAIN
102-25389-00-00
Superseded by 3AC-2538G-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-12103-00
|
$1.75 | ||
|
Unavailable |
|||
|
#28
AXLE, SPROCKET
205-25387-00-00
|
$11.02 | ||
|
Unavailable |
|||
|
#29
BEARING
93306-00406-00
Superseded by 93306-00438-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP
99009-42500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93106-30004-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR (276-25386-00)
90387-20172-00
|
$5.49 | ||
|
Unavailable |
|||
|
#33
PULLER, CHAIN
1NX-25388-00-00
Superseded by 4GL-2538A-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
90170-18165-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, HEXAGON
90170-12063-00
|
$1.65 | ||
|
Unavailable |
|||
|
#36
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#39
BAR, TENSION
195-25371-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#40
BOLT
90109-08063-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#45
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Unavailable |
|||
|
#47
PIN
90249-12008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SPRING, COMPRESSION
90501-10245-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT
90179-06411-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
428 STD 108L
94504-28108-00
|
$21.99 | ||
|
Unavailable |
|||
|
#
428 STD 106L
94504-28106-00
|
$17.86 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
50A---
|
|||
|
Unavailable |
|||
|
#51
WASHER, PLAIN
92990-12200-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
