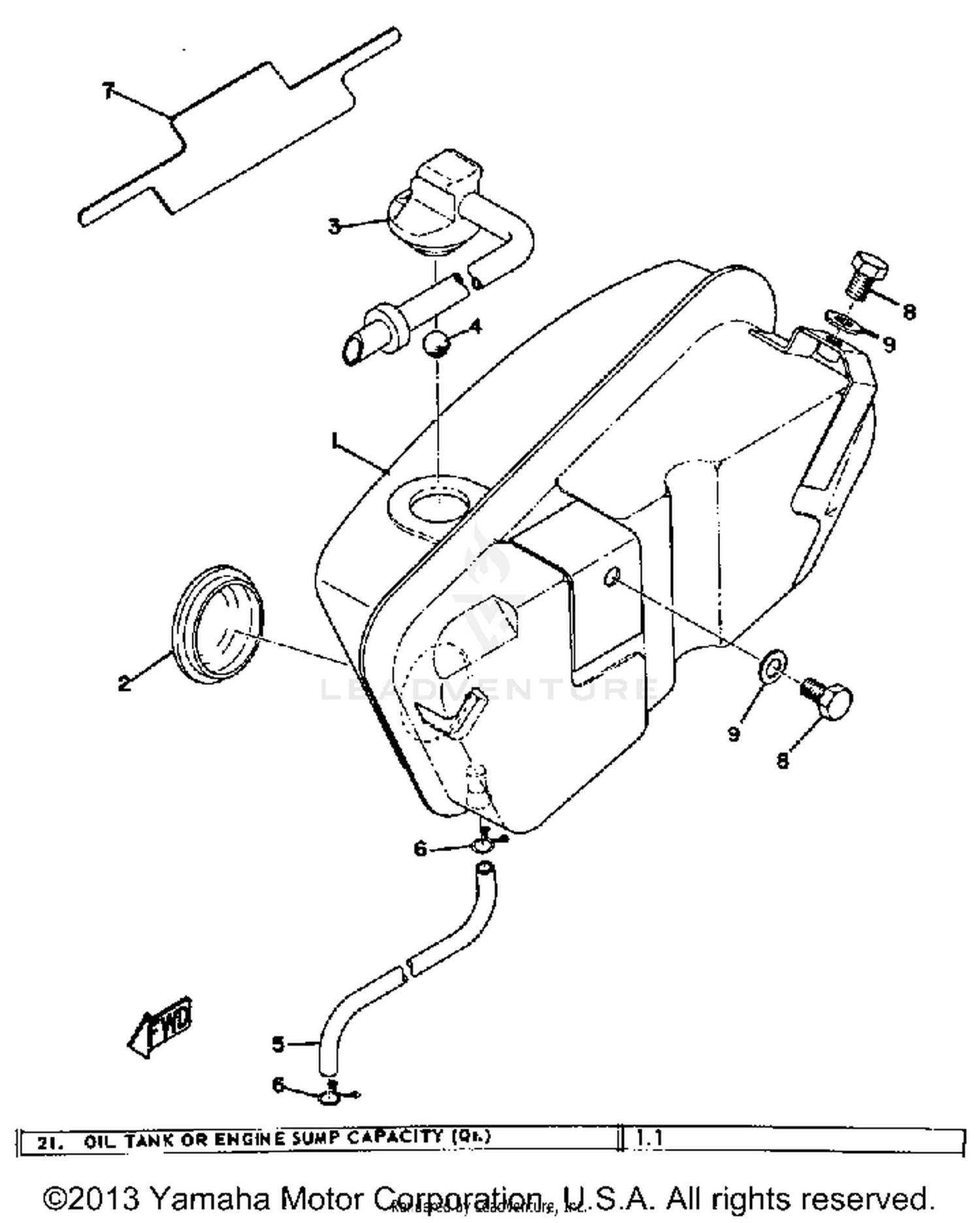

Oil Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL TANK ASSEMBLY
288-21705-00-26
|
$36.99 | ||
|
Unavailable |
|||
|
#2
GAUGE, LEVEL
214-21761-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY, CAP
288-21771-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#4
BALL
288-24684-00-00
|
$2.85 | ||
|
Unavailable |
|||
|
#5
PIPE, FUEL 1
132-24319-01-00
Superseded by 3YR-24312-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
EMBLEM 7
288-21787-00-00
|
$1.18 | ||
|
Unavailable |
|||
|
#8
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
