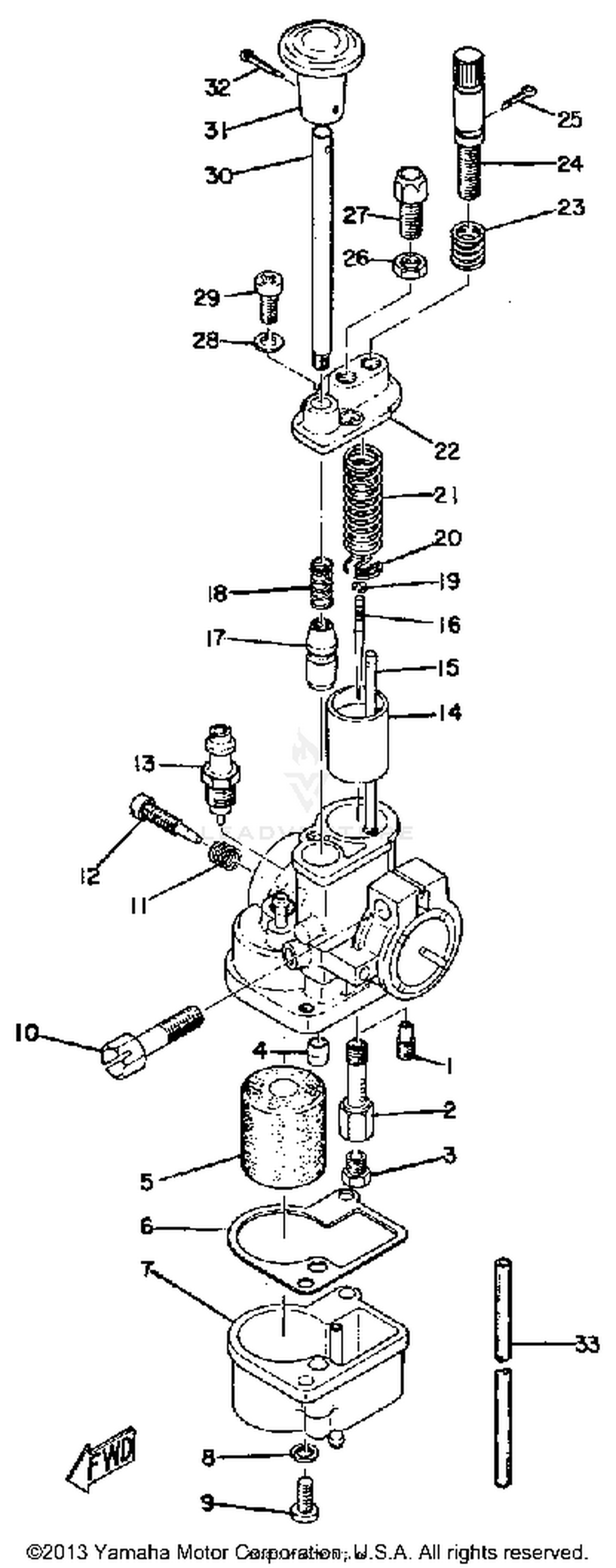

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
288-14301-60-00
|
$129.99 | ||
|
Unavailable |
|||
|
#
JET, PILOT #38
288-14342-38-00
|
$4.35 | ||
|
Unavailable |
|||
|
#2
NOZZLE, MAIN
288-14341-01-00
|
$6.26 | ||
|
Unavailable |
|||
|
#3
JET, MAIN #82
288-14343-41-00
|
$4.95 | ||
|
Unavailable |
|||
|
#
JET, MAIN #78
288-14343-39-00
|
$11.99 | ||
|
Unavailable |
|||
|
#
JET, MAIN #80
288-14343-40-00
|
$11.99 | ||
|
Unavailable |
|||
|
#4
JET, STARTER #50
288-14344-25-00
|
$4.84 | ||
|
Unavailable |
|||
|
#5
FLOAT
288-14385-00-00
|
$14.20 | ||
|
Unavailable |
|||
|
#6
GASKET, FLOAT CHMBR
288-14384-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#7
BODY, FLOAT CHAMBER
288-14381-00-00
|
$17.38 | ||
|
Unavailable |
|||
|
#8
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, CABLE ADJUSTING
288-14124-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#11
SPRING, AIR ADJUSTING
288-14334-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#12
SCREW, THROTTLE
288-14321-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#13
NEEDLE VALVE ASSEMBLY
288-14390-10-00
|
$19.72 | ||
|
Unavailable |
|||
|
#14
VALVE, THROTTLE 1
288-14312-15-00
|
$19.08 | ||
|
Unavailable |
|||
|
#15
VALVE, THROTTLE 1
288-14312-15-00
|
$19.08 | ||
|
Unavailable |
|||
|
#16
NEEDLE
288-14336-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#17
PLUNGER, STARTER
288-14371-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#18
SPRING, THRTL VALVE
288-14331-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#19
CLIP
288-14137-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
CLIP
288-14137-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#21
SPRING, THRTL VALVE
288-14331-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#22
GASKET, INSULATING
367-14156-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#23
SPRING, THRTL STOP
288-14333-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#24
SCREW, THROTTLE
288-14321-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#25
PIN. COTTER
91490-12012-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, CABLE ADJUSTING
288-14161-00-00
Superseded by 85L-14161-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, CABLE ADJUSTING
288-14124-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#28
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
PLUNGER, STARTER
288-14371-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#31
KNOB STARTER
288-14118-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#32
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE
90445-05016-00
|
$1.95 | ||
|
Unavailable |
|||
