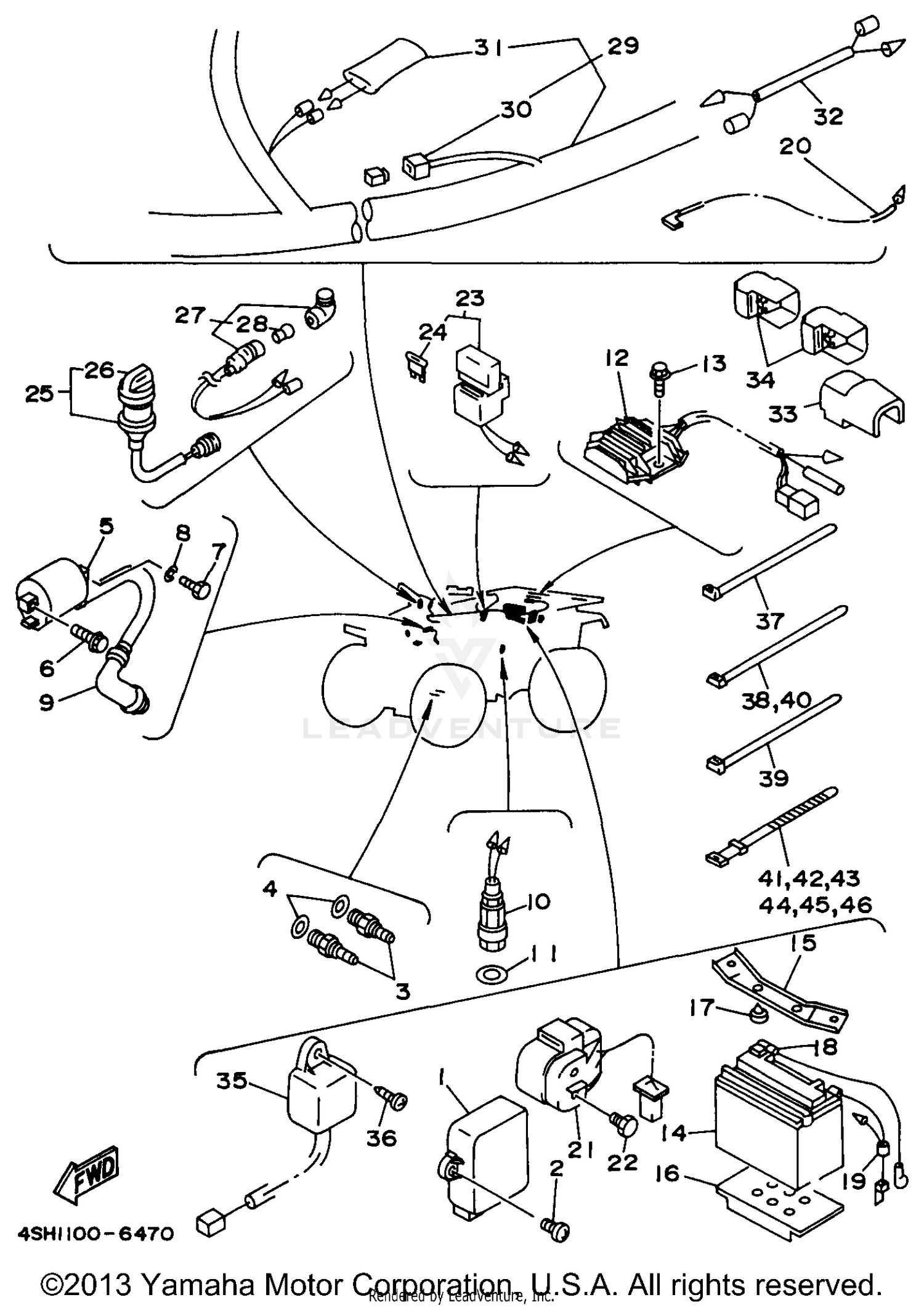

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
4SH-85540-00-00
Superseded by 4KB-85540-30-00
|
$636.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, BIND
98907-06016-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEUTRAL SWITCH ASSY
3GB-82540-00-00
Superseded by 3GB-82540-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-10171-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
IGNITION COIL ASSY
3GD-82310-10-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90109-06723-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97017-06020-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG CAP ASSY
371-82370-00-00
Superseded by 4VW-82370-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
THERMO UNIT
4GB-83591-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90201-12172-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
RECTIFIER & REGULATOR ASSY
4KB-81960-01-00
Superseded by 4KB-81960-02-00
|
$287.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95817-06020-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#14
YTX20LBS YUASA BATT
4SH-82100-00-00
Superseded by YTX-20LBS-00-00
|
$165.99 | ||
|
Unavailable |
|||
|
#15
BRACKET, BATTERY
4SH-82128-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#16
DAMPER 2
4SH-21639-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, SEAT
4G0-24723-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#18
WIRE, PLUS LEAD
4SH-82115-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#19
WIRE, MINUS LEAD
4SH-82116-00-00
Superseded by 4WV-82116-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#20
WIRE, LEAD
3HN-82541-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
STARTER RELAY ASSY (RC19-013)
4KB-81940-00-00
Superseded by 4KB-81940-01-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95027-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE HOLDER ASSY
4KB-82150-00-00
Superseded by 5EH-82150-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE (30A-BL)
1AE-82151-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
MAIN SWITCH ASSY
4GB-82510-00-00
Superseded by 4GB-82510-12-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP, KEY
3HN-82579-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PILOT LIGHT ASSY
2HR-83530-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BULB (12V-3.4W)
123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
WIRE HARNESS ASSY
4SH-82590-00-00
Superseded by 4SH-82590-21-00
|
$361.99 | ||
|
Unavailable |
|||
|
#30
DIODE ASSY
3WP-81980-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCUIT BREAKER ASSY
4GB-82180-00-00
Superseded by 5GT-82180-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WIRE, LEAD
59V-82541-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#33
RELAY ASSY (1UY-92)
1UY-81950-92-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
RELAY ASSY (29U-93)
29U-81950-93-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
MOTOR CONTROL UNIT ASSY
4SH-86510-00-00
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, BIND
98907-06016-00
|
$8.99 | ||
|
Unavailable |
|||
|
#37
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BAND
80L-26397-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#40
BAND
80L-26397-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#41
BAND, SWITCH CORD
437-83936-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BAND, SWITCH CORD
437-83936-11-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#43
BAND, SWITCH CORD
437-83936-11-00
|
$4.63 | ||
|
Unavailable |
|||
|
#44
BAND, SWITCH CORD
437-83936-11-00
|
$4.63 | ||
|
Unavailable |
|||
|
#45
BAND, SWITCH CORD
437-83936-11-00
|
$4.63 | ||
|
Unavailable |
|||
|
#46
BAND, SWITCH CORD
437-83936-11-00
|
$4.63 | ||
|
Unavailable |
|||
|
#47
BLANK KEY (A-TYPE)
90890-56001-00
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#48
BLANK KEY (B-TYPE)
90890-56002-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
