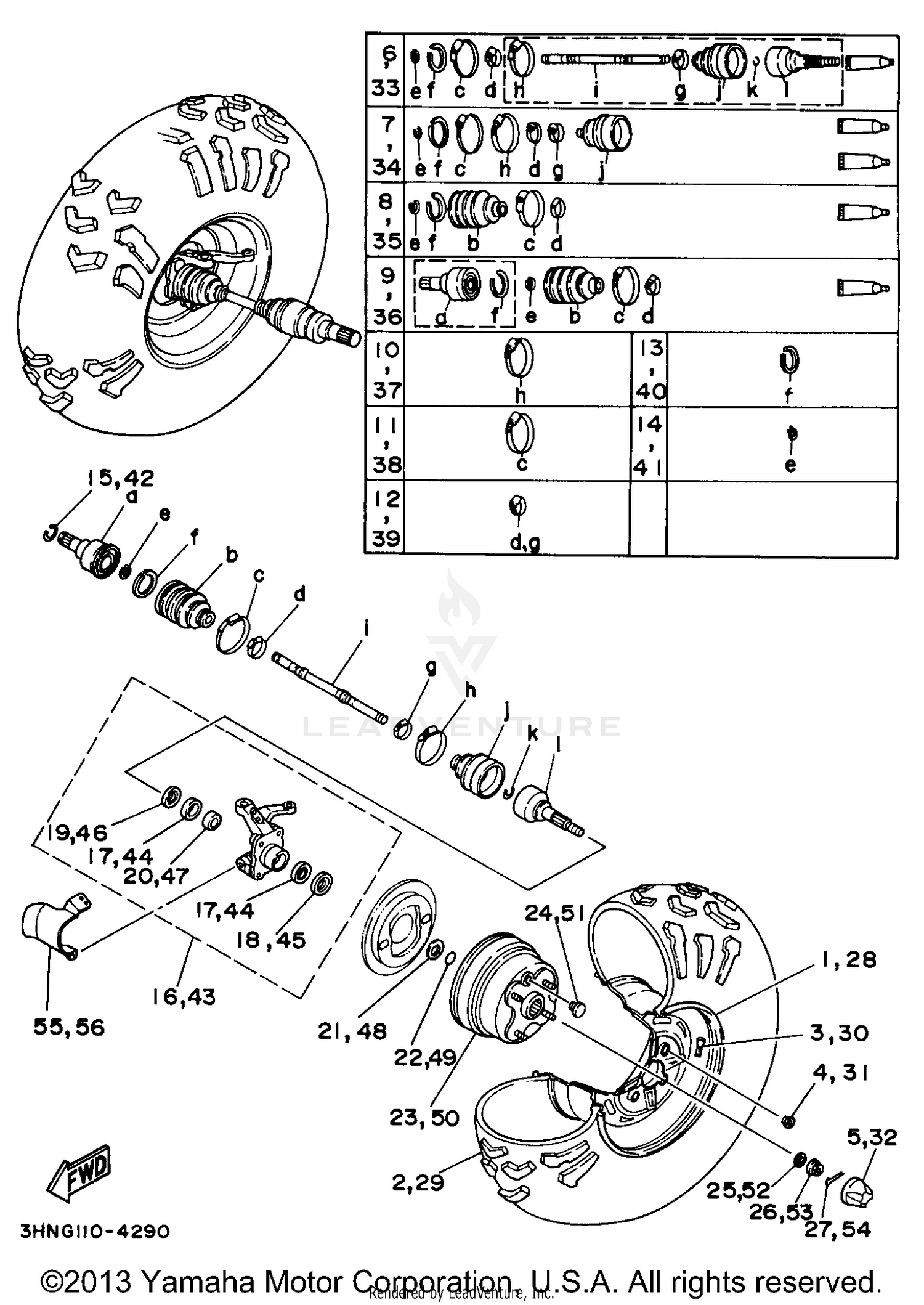

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
3HN-25180-00-MA
|
$211.99 | ||
|
Unavailable |
|||
|
#2
TIRE (AT25X8-12 KT402)
94108-126Y6-00
|
$98.99 | ||
|
Unavailable |
|||
|
#3
VALVE, RIM (TR412)
93900-00030-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-10540-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, WHEEL
52H-2512A-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALL JOINT SET
3HN-2510F-01-00
|
$446.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT SET (BALL JOINT)
3HN-2510G-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT SET(DOUBLE OFFSET JOINT)
3HN-2510H-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DOUBLE OFFSET JOINT
3HN-2510J-00-00
|
$386.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT BAND (DOUBLE OFFSET JOINT
3HN-2511H-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT BAND (SMALL)
3HN-2512G-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
2HR-2512H-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SNAP RING
2HR-2512J-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93450-22119-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
STEERING,KNUCKLE (L)
3HN-23501-01-00
Superseded by 3HN-23501-02-00
|
$288.99 | ||
|
Unavailable |
|||
|
#17
BEARING
93306-00612-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93102-38383-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93102-38417-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER
90560-30325-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-281V8-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-26662-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HUB, FRONT
3HN-25111-02-00
|
$302.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP
2NL-25335-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-163M0-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, CASTLE
90171-16048-00
Superseded by 90171-16001-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WHEEL COMP.
3HN-25180-00-MA
|
$211.99 | ||
|
Unavailable |
|||
|
#29
TIRE (AT25X8-12 KT402)
94108-126Y6-00
|
$98.99 | ||
|
Unavailable |
|||
|
#30
VALVE, RIM (TR412)
93900-00030-00
|
$16.49 | ||
|
Unavailable |
|||
|
#31
NUT
90179-10540-00
|
$5.49 | ||
|
Unavailable |
|||
|
#32
CAP, WHEEL
52H-2512A-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#33
BALL JOINT SET
3HN-2510F-01-00
|
$446.99 | ||
|
Unavailable |
|||
|
#34
BOOT SET (BALL JOINT)
3HN-2510G-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#35
BOOT SET(DOUBLE OFFSET JOINT)
3HN-2510H-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#36
DOUBLE OFFSET JOINT
3HN-2510J-00-00
|
$386.99 | ||
|
Unavailable |
|||
|
#37
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
|
$17.49 | ||
|
Unavailable |
|||
|
#38
BOOT BAND (DOUBLE OFFSET JOINT
3HN-2511H-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#39
BOOT BAND (SMALL)
3HN-2512G-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#40
CIRCLIP
2HR-2512H-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#41
SNAP RING
2HR-2512J-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#42
CIRCLIP
93450-22119-00
|
$7.99 | ||
|
Unavailable |
|||
|
#43
STEERING,KNUCKLE (R)
3HN-23502-01-00
Superseded by 3HN-23502-02-00
|
$423.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING
93306-00612-00
|
$46.99 | ||
|
Unavailable |
|||
|
#45
OIL SEAL
93102-38383-00
|
$17.49 | ||
|
Unavailable |
|||
|
#46
OIL SEAL
93102-38417-00
|
$17.49 | ||
|
Unavailable |
|||
|
#47
SPACER
90560-30325-00
|
$12.99 | ||
|
Unavailable |
|||
|
#48
COLLAR
90387-281V8-00
|
$34.99 | ||
|
Unavailable |
|||
|
#49
O-RING
93210-26662-00
|
$6.99 | ||
|
Unavailable |
|||
|
#50
HUB, FRONT
3HN-25111-02-00
|
$302.99 | ||
|
Unavailable |
|||
|
#51
CAP
2NL-25335-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#52
WASHER, PLATE
90201-163M0-00
|
$12.99 | ||
|
Unavailable |
|||
|
#53
NUT, CASTLE
90171-16048-00
Superseded by 90171-16001-00
|
$21.99 | ||
|
Unavailable |
|||
|
#54
PIN, COTTER
91490-30030-00
|
$7.99 | ||
|
Unavailable |
|||
|
#55
COVER, RING
4GB-2331M-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#56
COVER, RING
4GB-2331N-00-00
|
$51.99 | ||
|
Unavailable |
|||
