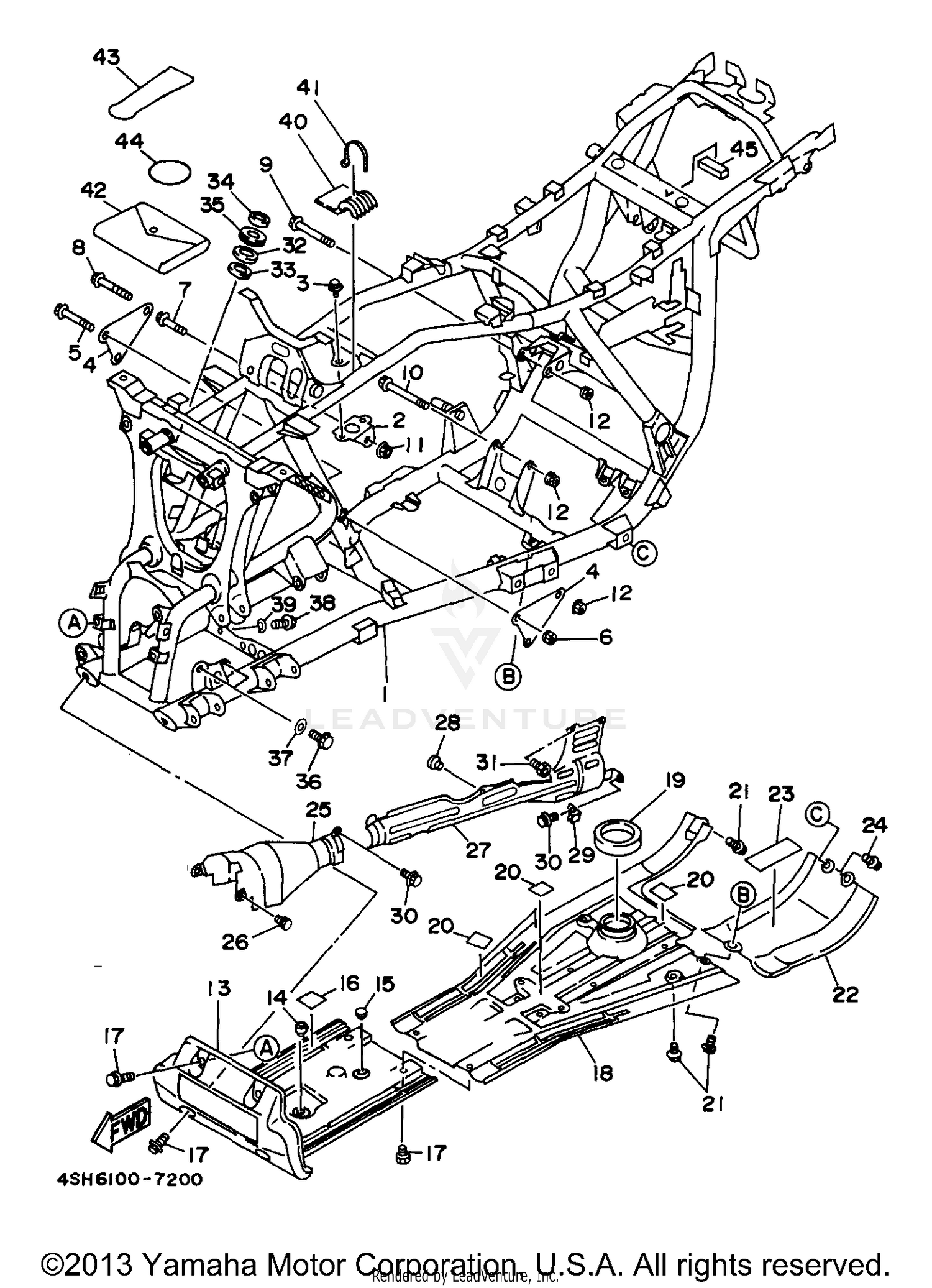

Frame 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
4SH-21110-01-33
|
$1,675.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, ENGINE 2
4GB-21315-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, ENGINE 3
3HN-21316-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
95817-08070-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SELF-LOCKING
95617-08200-00
Superseded by 90185-08169-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95817-08055-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-10323-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-10480-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-10409-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
95617-08200-00
Superseded by 90185-08169-00
|
$7.99 | ||
|
Unavailable |
|||
|
#12
NUT, U FLANGE
95617-10200-00
Superseded by 95607-10200-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUARD, ENGINE 1
2HR-2147A-00-00
|
$226.99 | ||
|
Unavailable |
|||
|
#14
STOPPER, MAIN STAND
116-27114-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, MAIN STAND
128-27114-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, LOCATING 1
27V-24181-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
PROTECTOR, ENGINE
3HN-21471-00-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, MAIN STAND
3HN-27114-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#20
DAMPER, LOCATING 1
27V-24181-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
STAY, TRANSFER
2HR-2147H-00-00
|
$124.99 | ||
|
Unavailable |
|||
|
#23
DAMPER 2
38V-21486-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
COVER, SHAFT 1
3HN-2147J-01-00
Superseded by 3HN-2147J-10-00
|
$51.99 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE
95817-06012-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, SHAFT 2
3HN-2147K-01-00
|
$117.99 | ||
|
Unavailable |
|||
|
#28
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90465-10164-00
|
$2.17 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE
95817-06012-00
|
$1.40 | ||
|
Unavailable |
|||
|
#31
BOLT
91317-06050-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING
93306-20331-00
Superseded by 93306-20348-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL
93102-25099-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL
93102-25081-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOLDER, BEARING
2GU-23872-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95817-10025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90201-08759-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
97017-08045-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
90201-083P5-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
DAMPER, LOCATING 1
2HR-24181-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#41
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#42
TOOL KIT (24W-28100-00)
59V-28100-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#43
GAUGE, AIR
1NV-2811A-00-00
Superseded by 1NV-2811A-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING
93210-41041-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
DAMPER
1YW-21638-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
