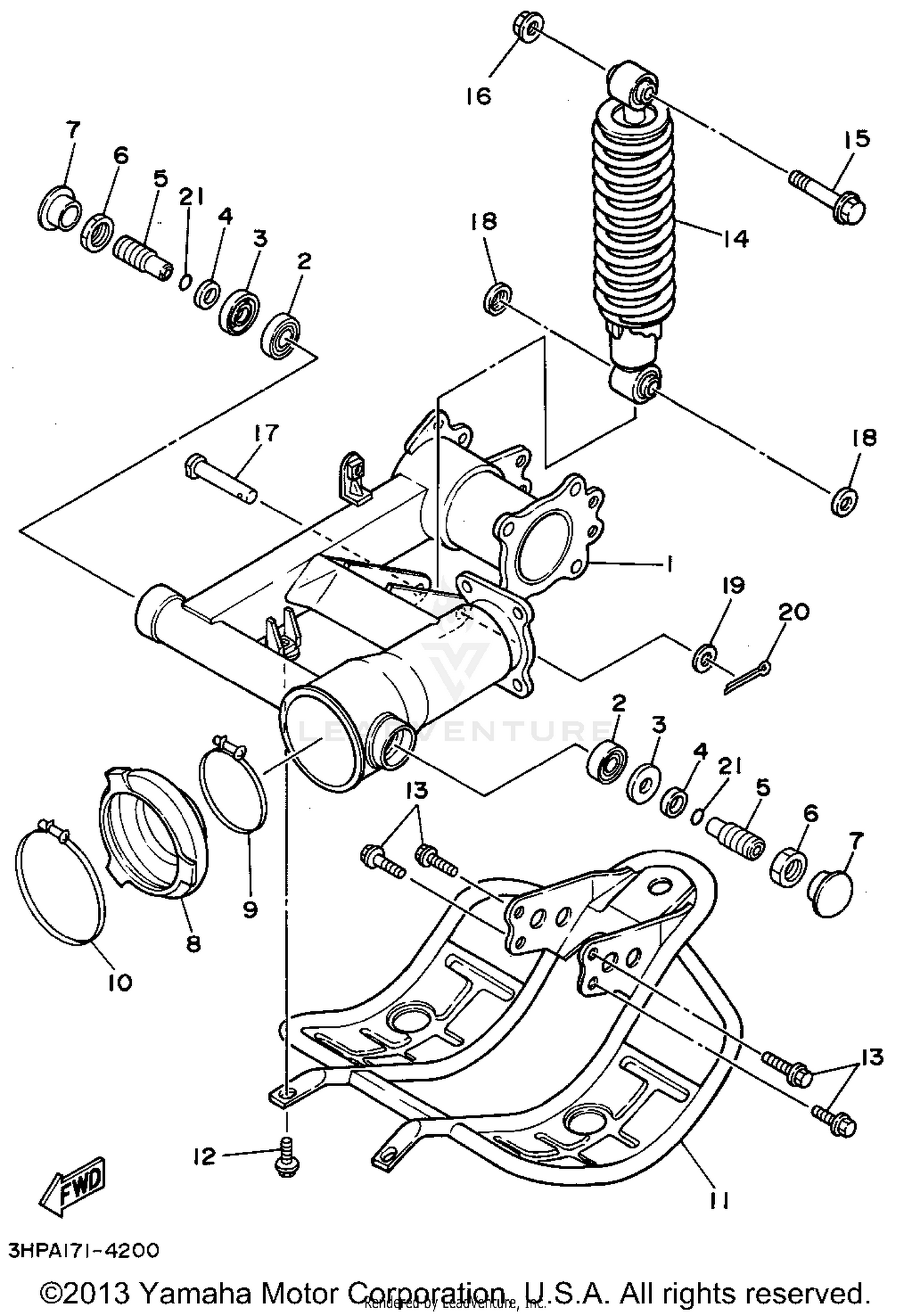

Rear Arm - Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
1YW-22110-00-33
|
$683.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93332-00010-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-25017-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-1701D-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, PIVOT
29U-22141-00-00
Superseded by 4WV-22141-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
1J7-22143-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG
90338-34069-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, RUBBER (1YW-22189-00-00)
59V-22189-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HOSE
90460-99289-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90460-99278-00
Superseded by 90450-99013-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER
1YW-2219X-01-00
|
$246.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95811-10016-00
Superseded by 95817-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHOCK ABSORBER ASSEMBLY, REAR
3HP-22210-00-33
|
$595.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
90105-12425-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCKING
90185-12072-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, CLEVIS
90240-12092-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, THRUST 1
1W1-22128-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92990-12600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-17718-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
