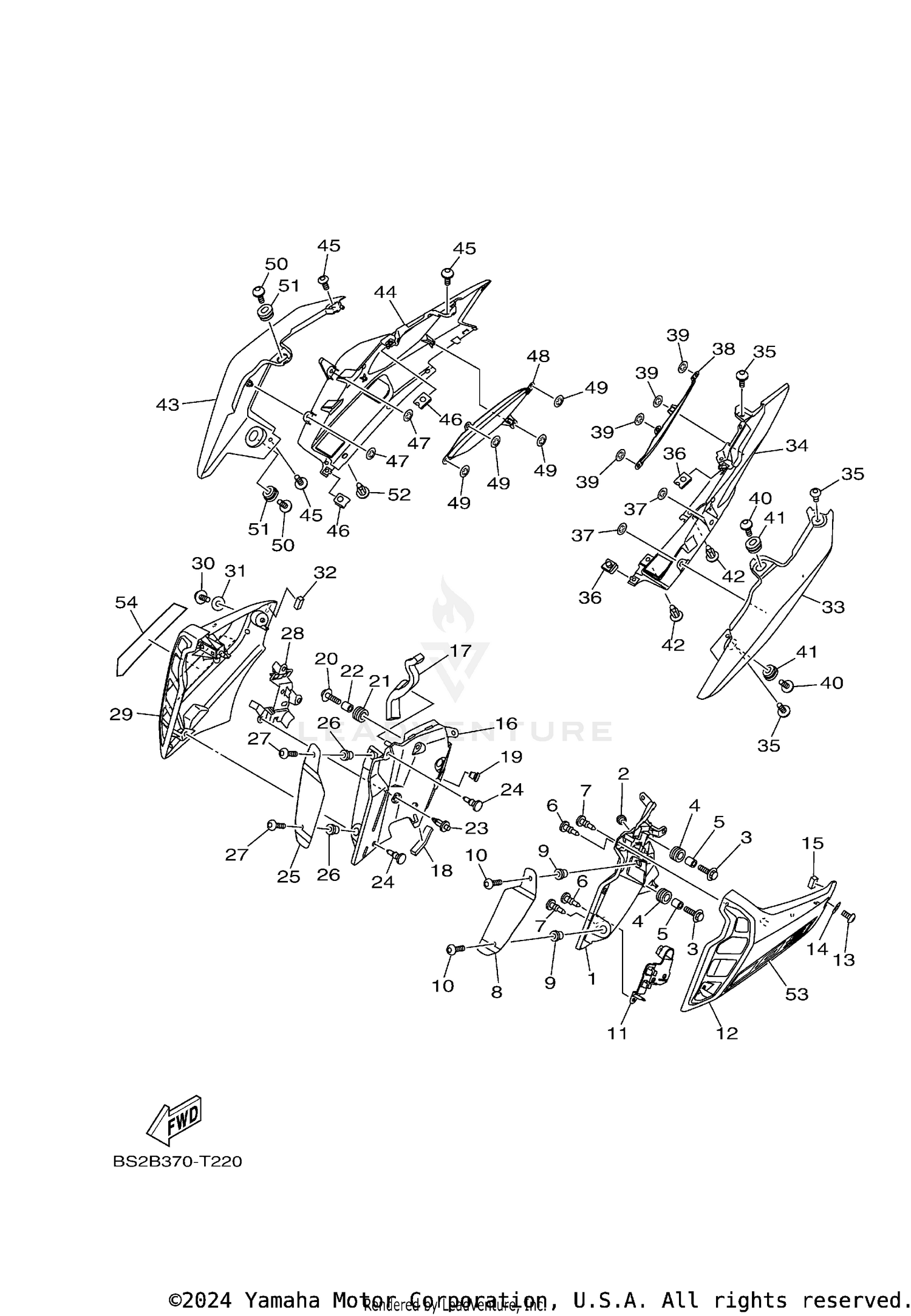

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, SIDE COVER 1
BS2-2172E-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06267-00
Superseded by 90119-06118-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-14003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-06057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIVET
90269-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIVET
90269-06001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRILL, AIR INTAKE 1
BS2-2837N-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-06520-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET BUTTON
90111-06146-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER 1
BS2-8336T-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCOOP, AIR 1
BS2-2137W-00-P0
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER
1RC-21747-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, SIDE COVER 2
BS2-2174E-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, PLATE
90520-10022-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, PLATE
90520-10003-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
BOLT, WITH WASHER
90119-06267-00
Superseded by 90119-06118-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
GROMMET
90480-14003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
COLLAR
90387-06057-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
RIVET
90269-06008-00
|
$8.49 | ||
|
Unavailable |
|||
|
#24
RIVET
90269-06001-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
GRILL, AIR INTAKE 2
BS2-2837R-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-06520-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
BOLT, HEX. SOCKET BUTTON
90111-06146-00
|
$2.05 | ||
|
Unavailable |
|||
|
#28
HOLDER
BS2-8336U-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCOOP, AIR 2
BS2-2137X-00-P0
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$6.49 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Unavailable |
|||
|
#32
DAMPER
1RC-21747-00-00
|
$3.15 | ||
|
Unavailable |
|||
|
#33
COVER, SIDE 1
BS2-21711-00-33
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, SIDE 1
BS2-21711-00-P7
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, SIDE 1
BS2-21711-00-P0
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, SIDE 3
BS2-21731-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$6.49 | ||
|
Unavailable |
|||
|
#36
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, SPRING
90183-05M02-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#38
GRILLE, SIDE COVER 1
BS2-2171Y-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, SPRING
90183-05M02-00
|
$0.30 | ||
|
Unavailable |
|||
|
#40
BOLT
90109-06037-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
GROMMET
90480-01559-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#42
RIVET
90269-07007-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER, SIDE 2
BS2-21721-00-33
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER, SIDE 2
BS2-21721-00-P7
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER, SIDE 2
BS2-21721-00-P0
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
COVER, SIDE 4
BS2-21741-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$6.49 | ||
|
Unavailable |
|||
|
#46
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#47
NUT, SPRING
90183-05M02-00
|
$0.30 | ||
|
Unavailable |
|||
|
#48
GRILLE, SIDE COVER 2
BS2-2172Y-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT, SPRING
90183-05M02-00
|
$0.30 | ||
|
Unavailable |
|||
|
#50
BOLT
90109-06037-00
|
$6.49 | ||
|
Unavailable |
|||
|
#51
GROMMET
90480-01559-00
|
$4.95 | ||
|
Unavailable |
|||
|
#52
RIVET
90269-07007-00
|
$3.85 | ||
|
Unavailable |
|||
|
#53
GRAPHIC 1
BS2-2173E-40-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
GRAPHIC 1
BS2-2173E-70-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
GRAPHIC 1
BS2-2173E-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
GRAPHIC 2
BS2-2173F-40-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
GRAPHIC 2
BS2-2173F-70-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
GRAPHIC 2
BS2-2173F-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
