1980 Yamaha MX100 Lighting (optional Parts) OEM Parts

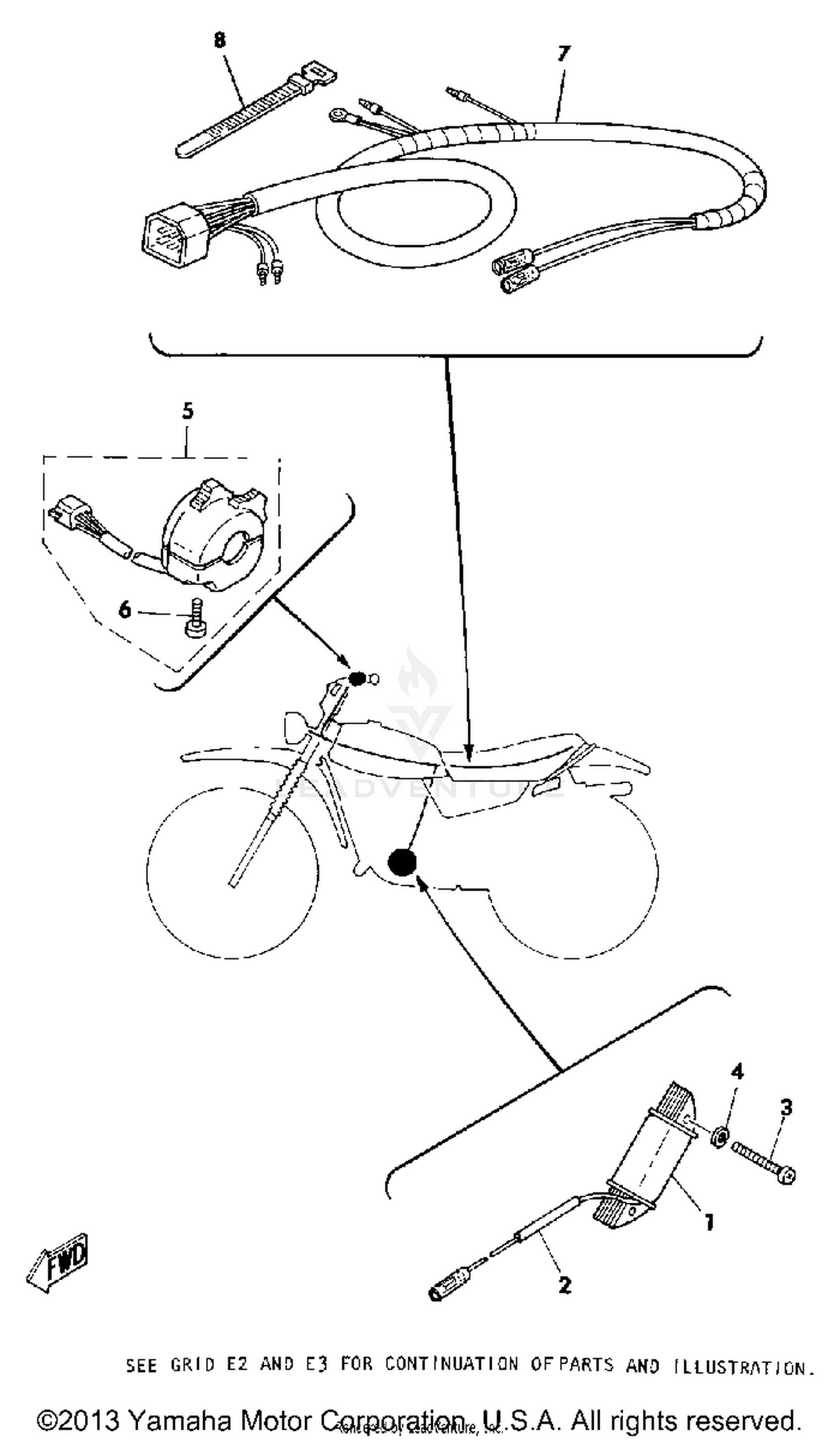

Lighting (optional Parts) Diagram

Item	MSRP	Qty
#1 COIL, LIGHTING 1 3M2-85513-20-00	$38.68
Unavailable
#2 LEAD WIRE ASSEMBLY 3M2-85515-21-00	$14.20
Unavailable
#3 SCREW, PAN HEAD 98511-04030-00 Superseded by 98507-04030-00	$1.55
Available to order. Add to View Price
#4 WASHER, SPRING 92901-04100-00 Superseded by 92990-04100-00	$0.80
Available to order. Add to View Price
#5 SWITCH, HANDLE 3 1W2-83973-00-98	$150.99
Unavailable
#6 SCREW, PAN HEAD 98580-05020-00	$1.40
Available to order. Add to View Price
#7 WIRE HARNESS ASSEMBLY 3T0-82590-90-00	$9.48
Unavailable
#8 BAND, SWITCH CORD 437-83936-01-00	$7.49
Available to order. Add to View Price
#9 UNAVAILABLE IN PRICE BOOK 1W2-84110-60-00
Unavailable
#10 RIM, HEADLIGHT 1W2-84115-60-00	$18.02
Unavailable
#11 COVER, HEADLIGHT 1W2-84144-60-00	$16.54
Unavailable
#12 LENS ASSEMBLY 3R8-84120-60-00	$15.49
Unavailable
#13 BULB, HL 6V25/25W 527-84114-09-XX	$6.49
Available to order. Add to View Price
#14 SOCKET 1W2-84112-60-00	$15.88
Unavailable
#15 SPRING, REFLECTOR 1W2-84324-60-00	$8.99
Unavailable
#16 BODY ASSEMBLY, HEADLIGHT 1W2-84130-60-00	$63.99
Unavailable
#17 COLLAR, BODY FTNG 1W2-84145-60-00	$2.58
Unavailable
#18 COLLAR, BODY FTNG 1L9-84338-60-00	$5.49
Unavailable
#19 DAMPER, HDLT STAY 1W2-84143-00-00	$18.49
Unavailable
#20 WASHER, SPRING 92990-08100-00	$5.49
Available to order. Add to View Price
# WASHER, SPRING 92902-08100-00 Superseded by 92907-08100-00	$7.49
Available to order. Add to View Price
#21 NUT 95333-08600-00	$2.35
Available to order. Add to View Price
#22 STAY, HEADLIGHT 1 3M1-84118-00-00	$7.26
Unavailable
#23 STAY, HEADLIGHT 2 3M1-84119-00-00	$7.26
Unavailable
#24 SCREW, PAN HEAD 98580-06020-00	$7.49
Available to order. Add to View Price
#25 WASHER, SPRING 92995-06100-00	$3.20
Available to order. Add to View Price
#26 WASHER, PLATE 92901-06600-00 Superseded by 92990-06600-00	$2.60
Available to order. Add to View Price
#27 WASHER, PLATE 92901-08600-00 Superseded by 92990-08600-00	$2.45
Available to order. Add to View Price
#28 WASHER, SPRING 92990-08100-00	$5.49
Unavailable
#29 NUT (CROWN) (93501-08800-00) 95303-08800-00	$8.49
Available to order. Add to View Price
#30 SCREW, PAN HEAD 98580-05016-00 Superseded by 97885-05016-00	$4.25
Available to order. Add to View Price
#31 WASHER, SPRING 92990-05100-00	$0.30
Available to order. Add to View Price
#32 TAILLIGHT ASSEMBLY 434-84500-64-00	$123.99
Unavailable
#33 LENS, TAILLIGHT 434-84521-69-00	$34.99
Available to order. Add to View Price
#34 RIM,TAILLIGHT 434-84515-61-00 Superseded by 5AU-83323-01-00	$12.99
Available to order. Add to View Price
#35 BULB 6V21CP(1154) 122-84514-30-00 Superseded by 122-84514-30-XX	$2.40
Available to order. Add to View Price
#36 CORD, TAILLIGHT 434-84517-61-00	$55.99
Unavailable
#37 WASHER, PLATE 434-84522-62-00 Superseded by 90201-05029-00	$7.49
Available to order. Add to View Price
#38 SCREW, LENS FITTING 434-84524-61-00	$2.97
Unavailable
#39 BRACKET, TAILLIGHT 434-84519-64-00	$106.99
Unavailable
#40 TAILLIGHT ASSEMBLY 434-84500-64-00	$123.99
Unavailable
#41 COLLAR 434-84557-60-00	$2.30
Unavailable
#42 WASHER, PLATE 90201-05031-00 Superseded by 90201-05725-00	$8.49
Available to order. Add to View Price
#43 WASHER, SPRING 92990-05100-00	$0.30
Unavailable
#44 NUT 95380-05600-00	$7.49
Available to order. Add to View Price
#45 CLAMP 90462-08003-00	$0.99
Unavailable
#46 GROMMET 90480-15058-00	$7.49
Available to order. Add to View Price
