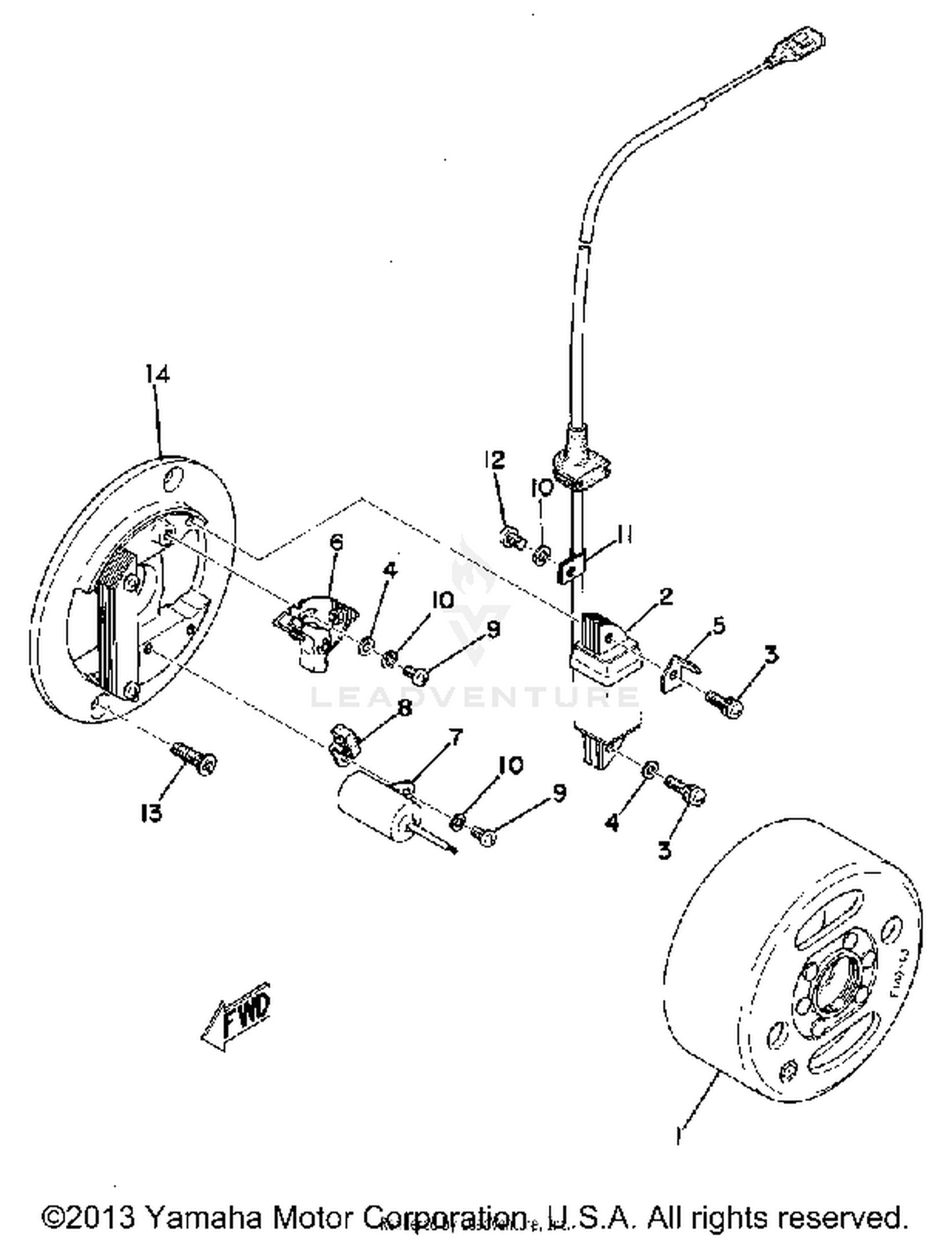

Flywheel Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWHL MAGNETO ASSEMBLY
427-81300-11-00
|
$254.99 | ||
|
Unavailable |
|||
|
#
ROTOR ASSEMBLY
427-81350-11-00
|
$186.99 | ||
|
Unavailable |
|||
|
#2
COIL, SOURCE
296-81312-10-00
|
$48.21 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
296-81348-11-00
|
$3.05 | ||
|
Unavailable |
|||
|
#4
WASHER, PLAIN
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
UNAVAILABLE IN PRICE BOOK
296-81333-21-00
|
|||
|
Unavailable |
|||
|
#6
CONTACT BRKR ASSEMBLY
207-81321-90-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONDENSER 2
207-81326-90-00
|
$25.99 | ||
|
Unavailable |
|||
|
#8
LUBRICATOR
207-81331-10-00
|
$6.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
110-81346-21-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
288-81328-10-00
|
$0.68 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#14
BASE, MAGNETO
427-81309-10-00
|
$26.17 | ||
|
Unavailable |
|||
