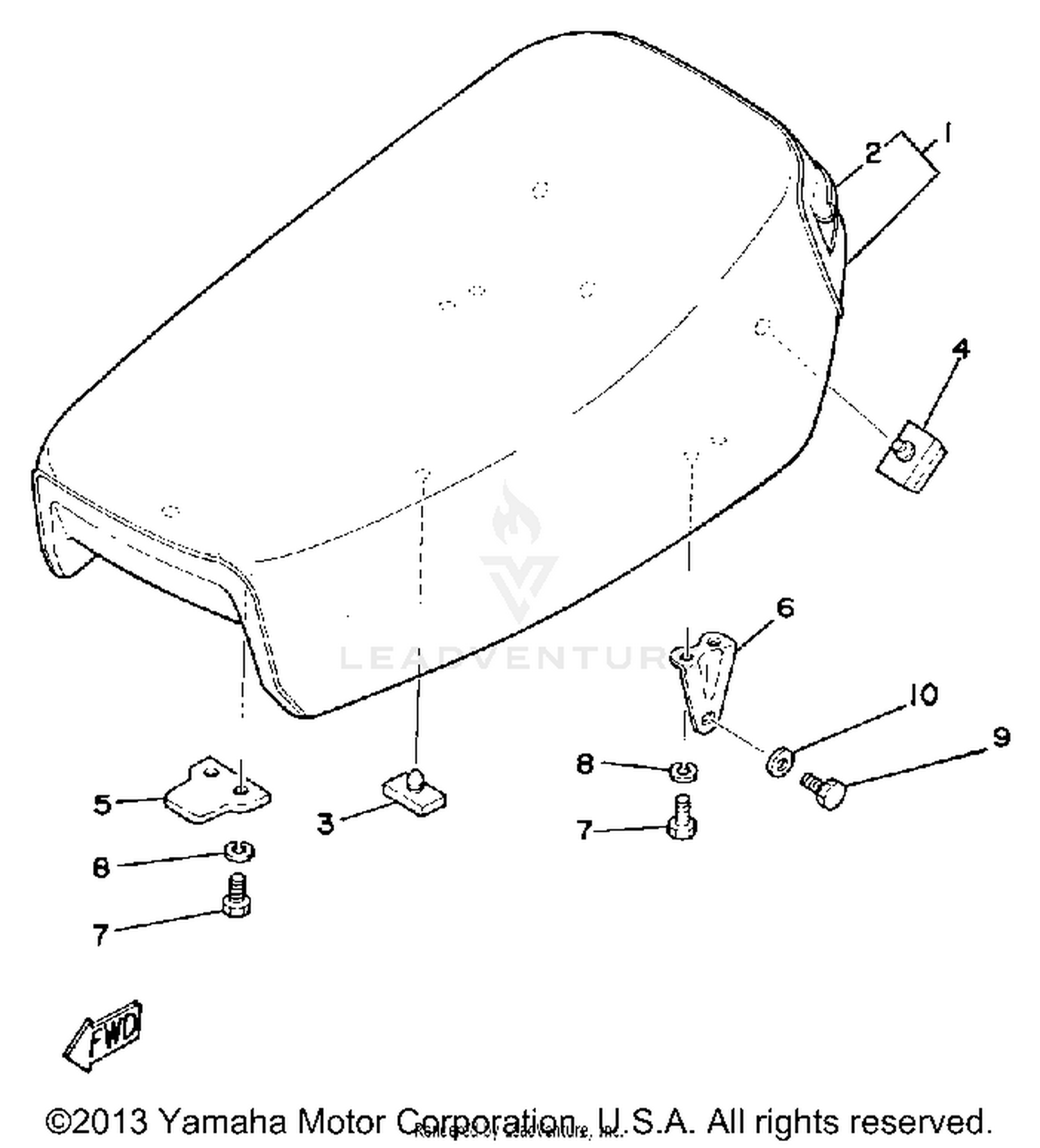

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEMI-DBL-SEAT ASSEMBLY (2N4-247
2N4-W2473-00-00
|
$210.99 | ||
|
Unavailable |
|||
|
#2
COVER, SM-DBL SEAT
3M2-24771-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#3
DAMPER, SEAT
509-24724-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, SEAT
214-24724-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT
1M1-24748-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#6
BRACKET, SEAT
2A6-24738-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
