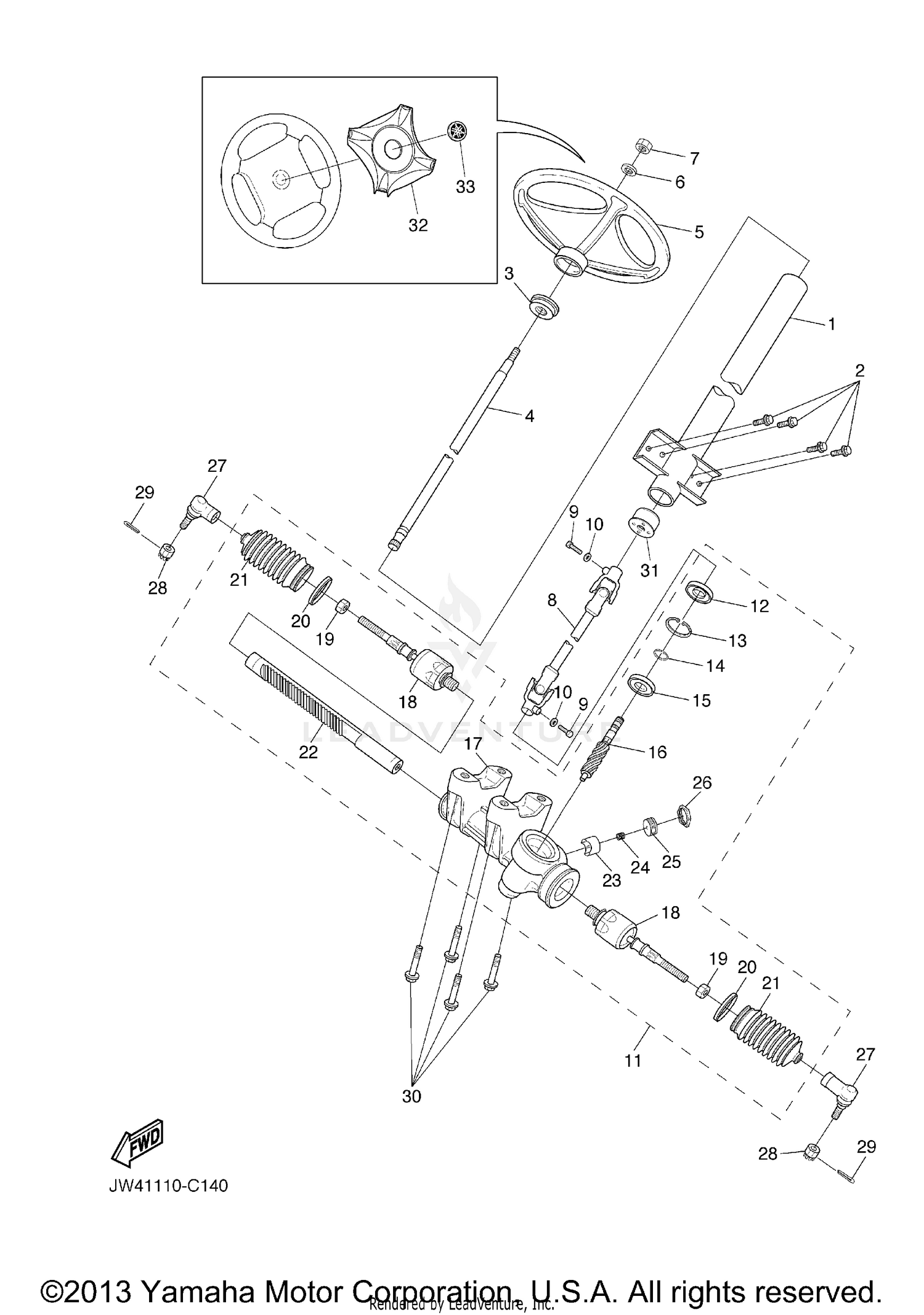

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLUMN, STEERING
JU0-F3811-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#2
BOLT,FLANGE (JN5)
9581P-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER,HANDLE UPPER
JN3-F3814-00-00
Superseded by JN3-F3814-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD,STEERING
JU0-F3828-00-00
Superseded by JU0-F3828-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WHEEL, STEERING
JN3-F3838-00-00
Superseded by JN3-F3838-09-00
|
$61.27 | ||
|
Unavailable |
|||
|
#6
WASHER, PLAIN
9290P-12200-00
Superseded by 92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-12061-00
Superseded by 90185-12119-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT 1
JU0-F3822-00-00
|
$547.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97017-08030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
STEERING ASSY
JU7-F3400-00-00
|
$462.99 | ||
|
Unavailable |
|||
|
#12
SEAL
JU0-F3844-00-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, STOPPER
JU0-F387J-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#14
CIRCLIP
JU0-F3183-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
JU0-F339Y-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, PINION
JU0-F387A-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#17
HOUSING COMP.
JU0-F620A-01-00
|
|||
|
Unavailable |
|||
|
#18
ROD, TIE 2
JU7-F3837-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#19
NUT 1
JU0-F3833-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#20
CLAMP
JU0-F1338-00-00
|
$1.99 | ||
|
Unavailable |
|||
|
#21
BOOT
JU0-F3848-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#22
GEAR, RACK
JU0-F387E-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#23
PAD, PRESSURE
JU0-F387F-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, PRESSURE
JU0-F387K-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, ADJUST
JU0-F387G-00-00
|
$2.99 | ||
|
Unavailable |
|||
|
#26
NUT 2
JU0-F3834-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#27
JOINT, UNIVERSAL 1
JU0-F3841-00-00
Superseded by JW8-23841-01-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SELF-LOCKING
95607-12200-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
90105-10810-00
Superseded by 90105-10847-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOLDER
JU0-F3857-00-00
Superseded by JU0-F3857-20-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER, STEERING
5UG-F3818-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
TUNING FORK MARK
5FU-F175B-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
