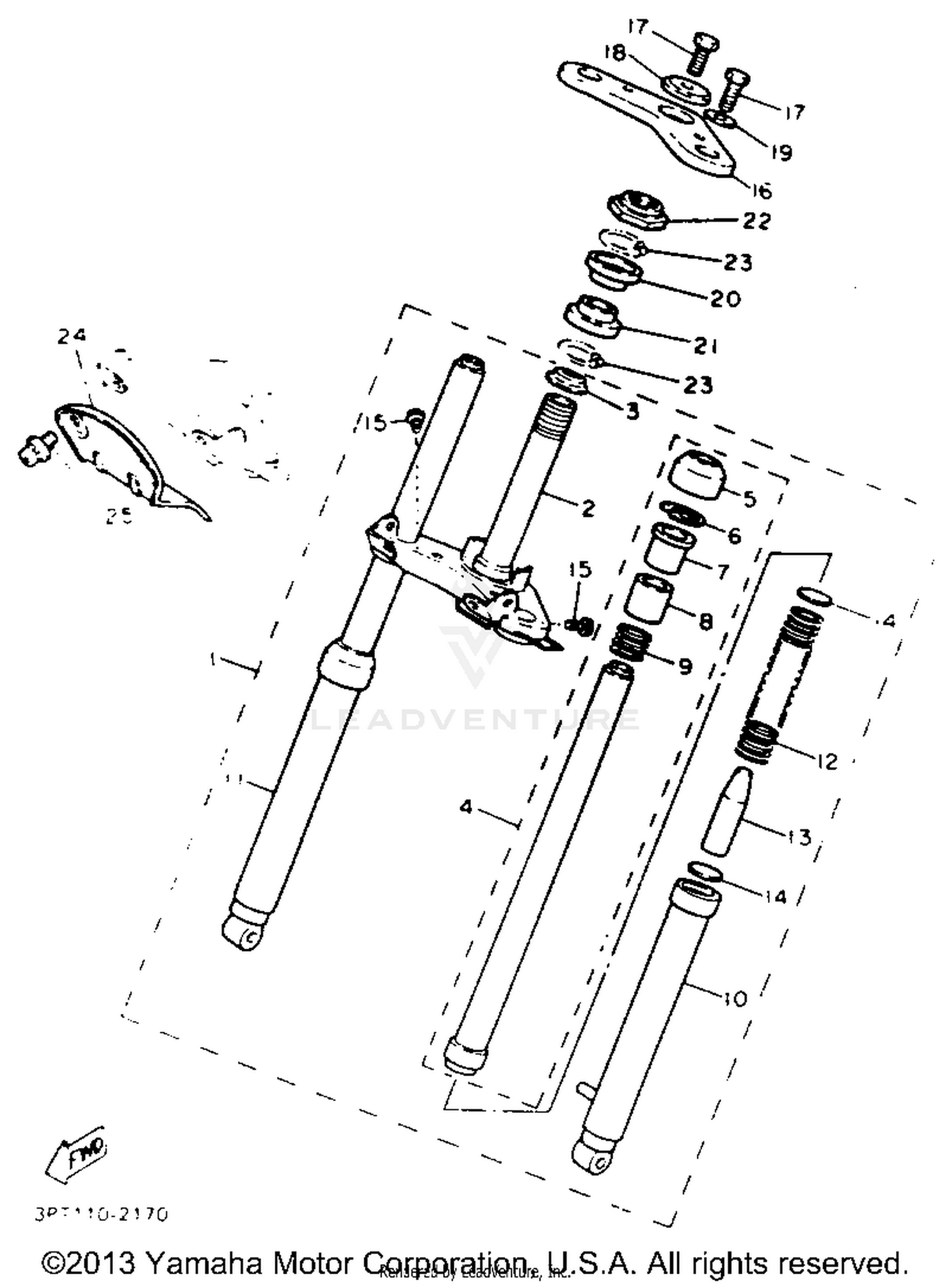

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY
4X4-23100-02-P0
Superseded by 3PT-23100-11-P1
|
$377.99 | ||
|
Unavailable |
|||
|
#2
UNDER BRACKET COMP.
4X4-23340-02-33
Superseded by 3PT-23340-10-00
|
$343.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, BALL 4
3YJ-23414-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
INNER TUBE COMP.1
4X4-23110-00-00
Superseded by 3PT-23110-00-00
|
$160.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, DUST
2E9-23144-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
93450-30057-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
METAL, SLIDE 1
54V-23125-00-00
Superseded by 54V-23125-02-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
2E9-23113-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, REBOUND
36R-23151-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
OUTER TUBE LH (L.H)
4X4-23106-00-P0
|
$85.99 | ||
|
Unavailable |
|||
|
#11
OUTER TUBE RH (R.H)
4X4-23107-00-P0
|
$83.98 | ||
|
Unavailable |
|||
|
#12
SPRING, FRONT FORK
4X4-23141-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER
3L6-23195-00-00
Superseded by 3L6-23195-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
SEAT, SPRING LOWER
2E9-23143-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
CROWN, HANDLE
4X4-23435-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-10006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
90209-10021-00
Superseded by 90209-10160-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-10742-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
RACE, BALL 2
2E9-23412-00-00
Superseded by 2SA-23412-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RACE, BALL 3
2E9-23413-01-00
Superseded by 2SA-23413-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RACE, BALL 1
3PT-23411-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL
93505-32002-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE 1
4X4-21543-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, WITH WASHER
90159-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
