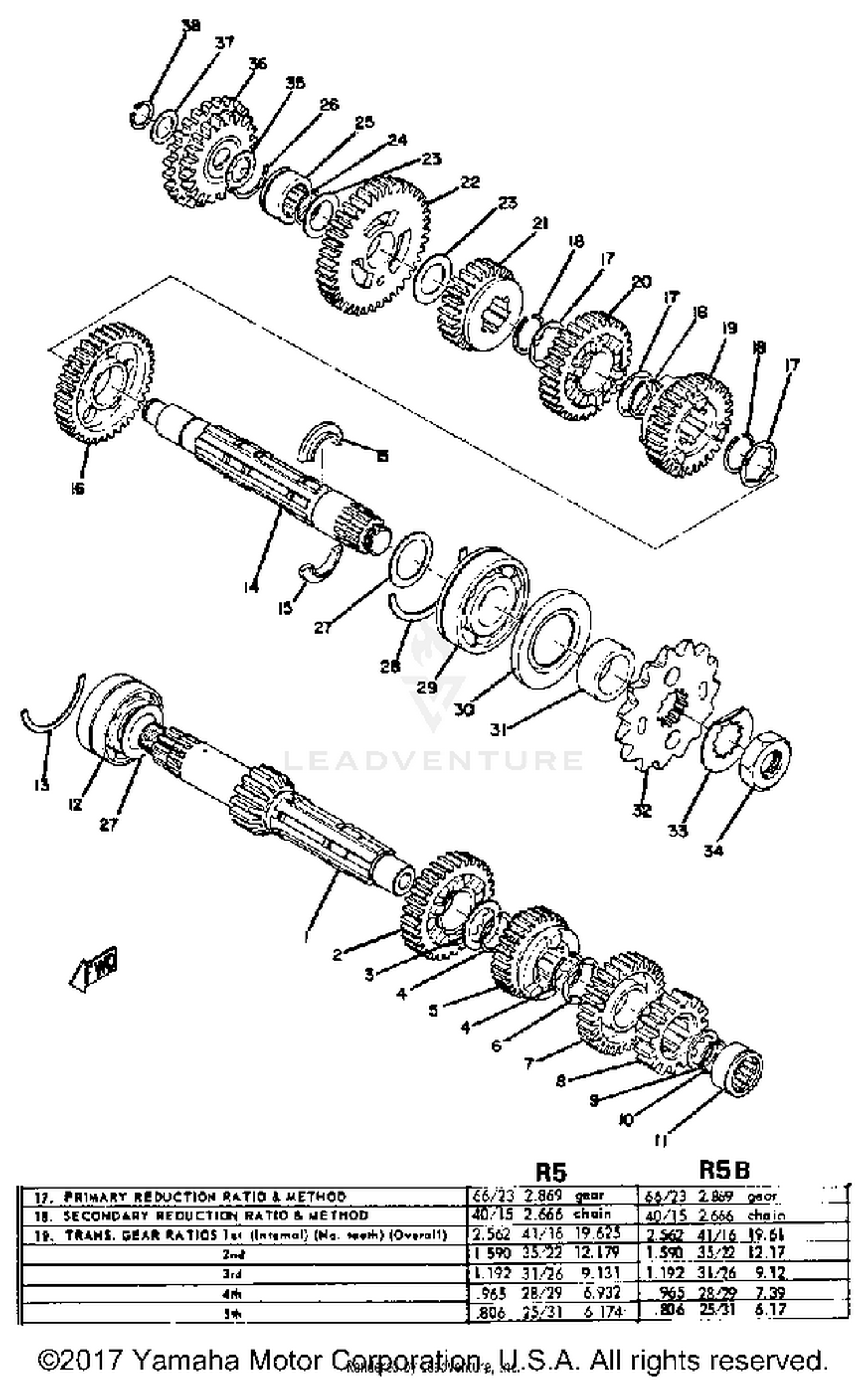

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
278-17411-00-00
|
$86.04 | ||
|
Unavailable |
|||
|
#2
GEAR, 5TH PINION
278-17151-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-25490-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
278-17131-00-00
|
$64.78 | ||
|
Unavailable |
|||
|
#6
WASHER, SPEC''L SHAP
90209-21081-00
|
$1.45 | ||
|
Unavailable |
|||
|
#
WASHER, SPEC''L SHAP
90209-21106-00
|
$4.40 | ||
|
Unavailable |
|||
|
#7
GEAR, 4TH PINION
278-17141-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
278-17121-00-00
|
$35.92 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CYL.#11
93311-22027-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93305-20502-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
278-17414-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#
CLIP
278-17414-09-00
|
$4.75 | ||
|
Unavailable |
|||
|
#14
AXLE, DRIVE
278-17421-00-00
|
$63.46 | ||
|
Unavailable |
|||
|
#15
SPACER, DRIVE AXLE
156-17429-00-00
|
$7.94 | ||
|
Unavailable |
|||
|
#16
GEAR, 2ND WHEEL
278-17221-00-00
|
$53.90 | ||
|
Unavailable |
|||
|
#17
WASHER, SPEC''L SHAP
90209-21081-00
|
$1.45 | ||
|
Unavailable |
|||
|
#
WASHER, SPEC''L SHAP
90209-21106-00
|
$4.40 | ||
|
Unavailable |
|||
|
#18
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
GEAR, 4TH WHEEL
278-17241-00-00
|
$55.52 | ||
|
Unavailable |
|||
|
#20
GEAR, 5TH PINION
278-17151-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#21
GEAR, 5TH WHEEL
278-17251-00-00
|
$71.86 | ||
|
Unavailable |
|||
|
#22
GEAR, 1ST WHEEL
278-17211-00-00
|
$64.78 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
BEARING, CYL.#11
93311-42045-00
|
$30.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP 2
278-17425-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#28
CIRCLIP 1
278-17424-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING
93306-30506-00
Superseded by 93306-30504-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL, SD-TYPE
93102-35109-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-25192-00
Superseded by 90387-253M9-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPROCKET DRIVE (15T)
9384E-15155-00
|
$21.99 | ||
|
Unavailable |
|||
|
#33
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, LOCK
90179-18020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, WAVE
90206-15021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
IDLE GEAR ASSEMBLY
278-15650-00-00
|
$72.94 | ||
|
Unavailable |
|||
|
#37
SHIM 1 (1.0T)
164-17417-00-10
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
