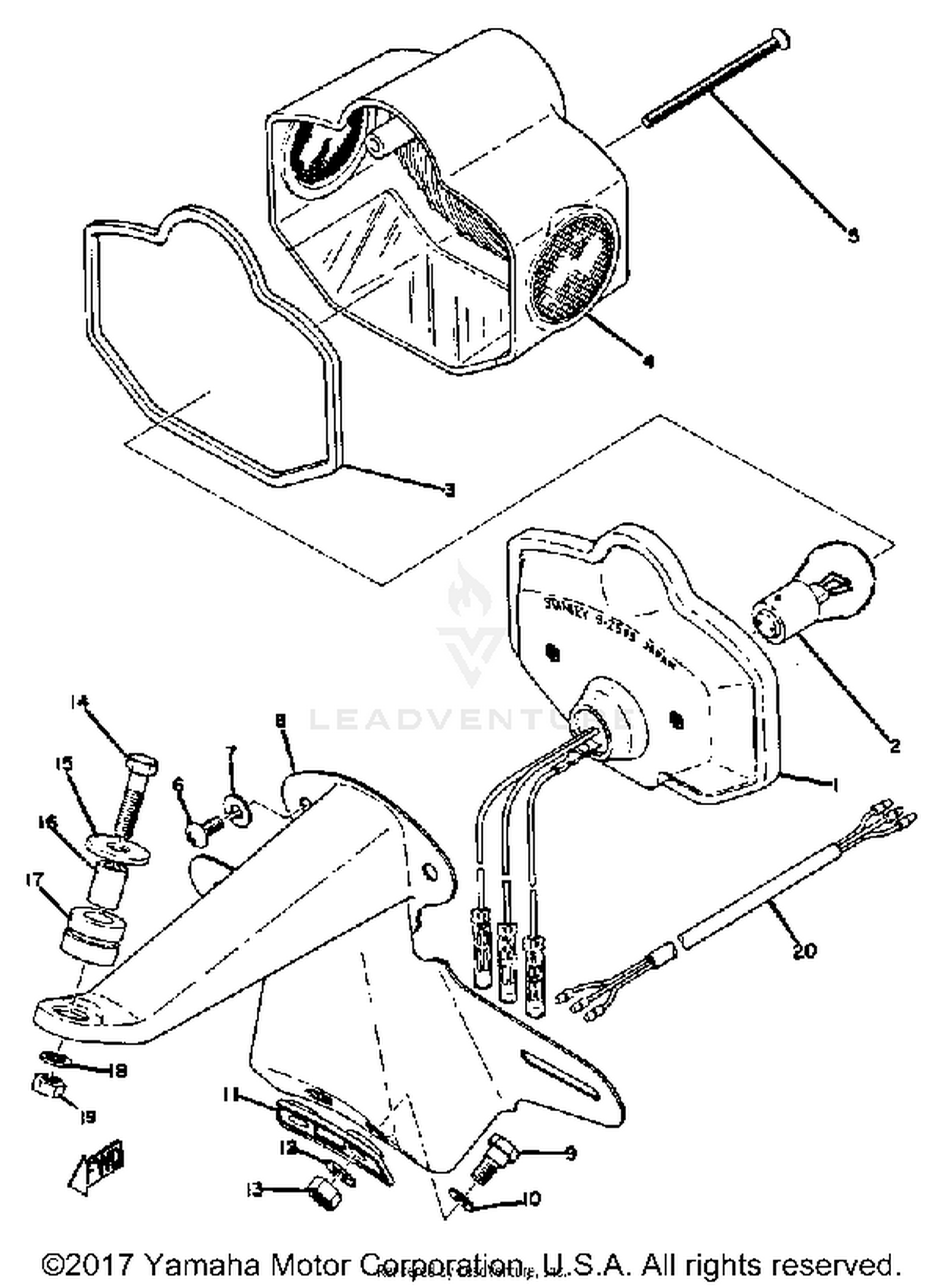

Taillight R5 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
256-84710-60-00
|
$30.14 | ||
|
Unavailable |
|||
|
#
BASE, TAILLIGHT
256-84711-60-00
|
$22.86 | ||
|
Unavailable |
|||
|
#2
BULB (12V-21/5W)
137-84714-61-00
Superseded by 137-84714-61-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, TAIL LENS
256-84723-60-00
|
$3.76 | ||
|
Unavailable |
|||
|
#4
LENS, TAILLIGHT
256-84721-60-00
|
$12.87 | ||
|
Unavailable |
|||
|
#5
SCREW, RIM ADJUSTING
3AA-84331-00-00
|
$3.40 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, LICENSE
256-84751-60-35
|
$23.94 | ||
|
Unavailable |
|||
|
#9
BOLT
90109-06017-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
214-84553-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#13
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPEC''L SHAP (256-21515
90209-06026-00
|
$3.00 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-065L7-00
Superseded by 90387-06026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#19
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
|
#20
CORD, TAILLIGHT
251-84517-60-00
|
$28.99 | ||
|
Unavailable |
|||
