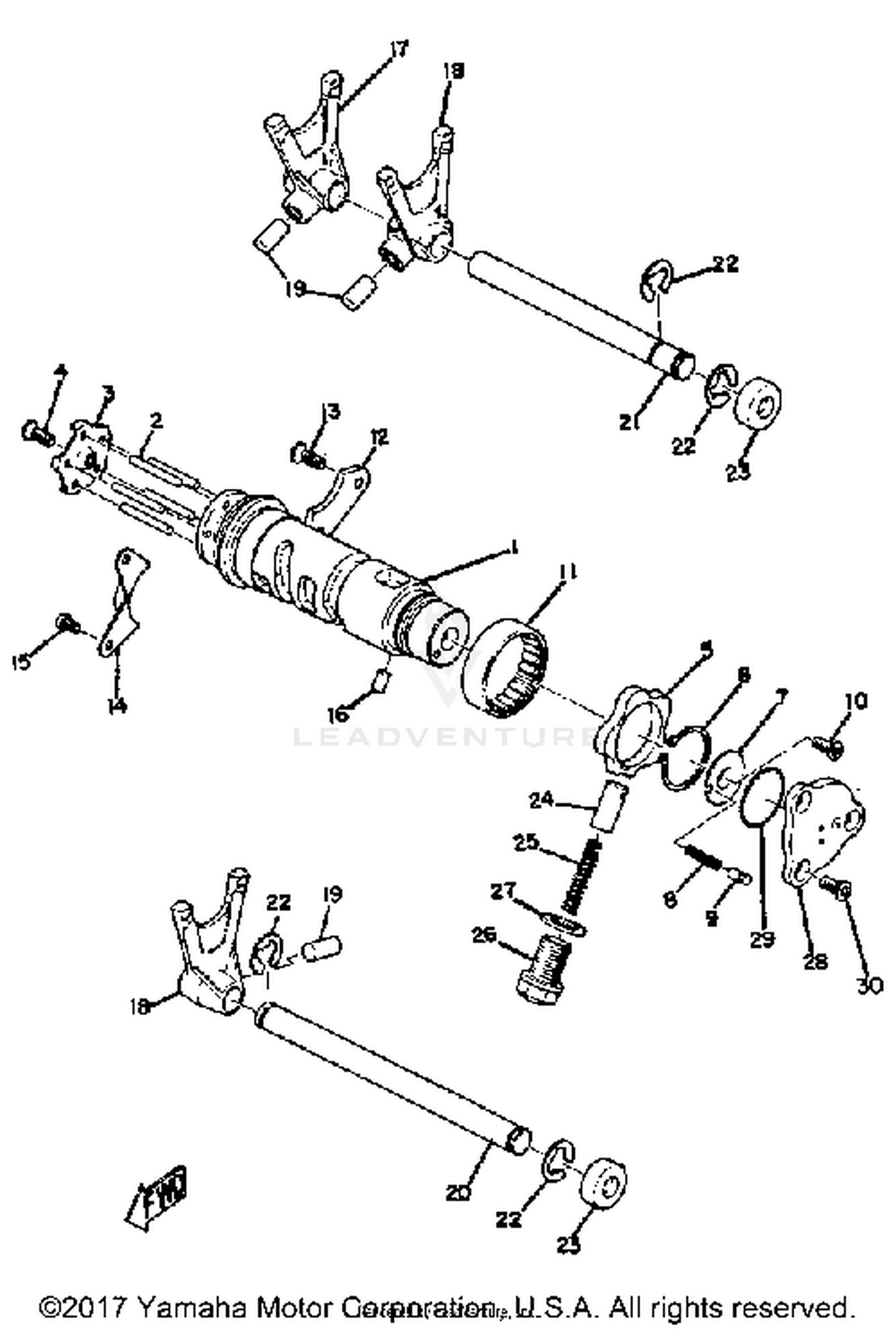

Shift Cam - Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAM, SHIFT
278-18541-00-00
|
$55.52 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
93604-22050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, SIDE 1
278-18561-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#4
SCREW, COUNTERSUNK
98701-05012-00
Superseded by 98707-05012-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, STOPPER
278-18141-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#6
CIRCLIP
99009-30400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, SIDE 2
278-18566-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#8
SPRING, COMPRESSION
90501-06022-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
POINT, NEUTRAL
278-18542-00-00
Superseded by 4UN-18542-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, COUNTERSUNK
98701-05012-00
Superseded by 98707-05012-00
|
$1.60 | ||
|
Unavailable |
|||
|
#11
BEARING
93315-23612-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, STOPPER 2
278-18562-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#13
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE
278-18179-00-00
|
$0.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
93604-08071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FORK, SHIFT 1
278-18511-00-00
|
$49.20 | ||
|
Unavailable |
|||
|
#18
FORK, SHIFT 2
278-18512-00-00
|
$75.68 | ||
|
Unavailable |
|||
|
#19
PIN, STRAIGHT
90250-08017-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAR, SHIFT FORK GUIDE 1
278-18531-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#21
BAR, SHIF FRK GDE 2
278-18535-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#22
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG
90338-22021-00
Superseded by 90338-22207-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
STOPPER, CAM
278-18547-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#
STOPPER, CAM
278-18547-02-00
|
$22.99 | ||
|
Unavailable |
|||
|
#25
SPRING, COMPRESSION
90501-10062-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
90109-14485-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET, DRAIN
137-15353-00-00
Superseded by 4F4-14766-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NEUTRAL SWITCH ASSY
1L9-82540-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-31114-00
Superseded by 93210-31MJ5-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#
O-RING
93210-29147-00
Superseded by 93210-29196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, COUNTERSUNK
98701-05012-00
Superseded by 98707-05012-00
|
$1.60 | ||
|
Unavailable |
|||
