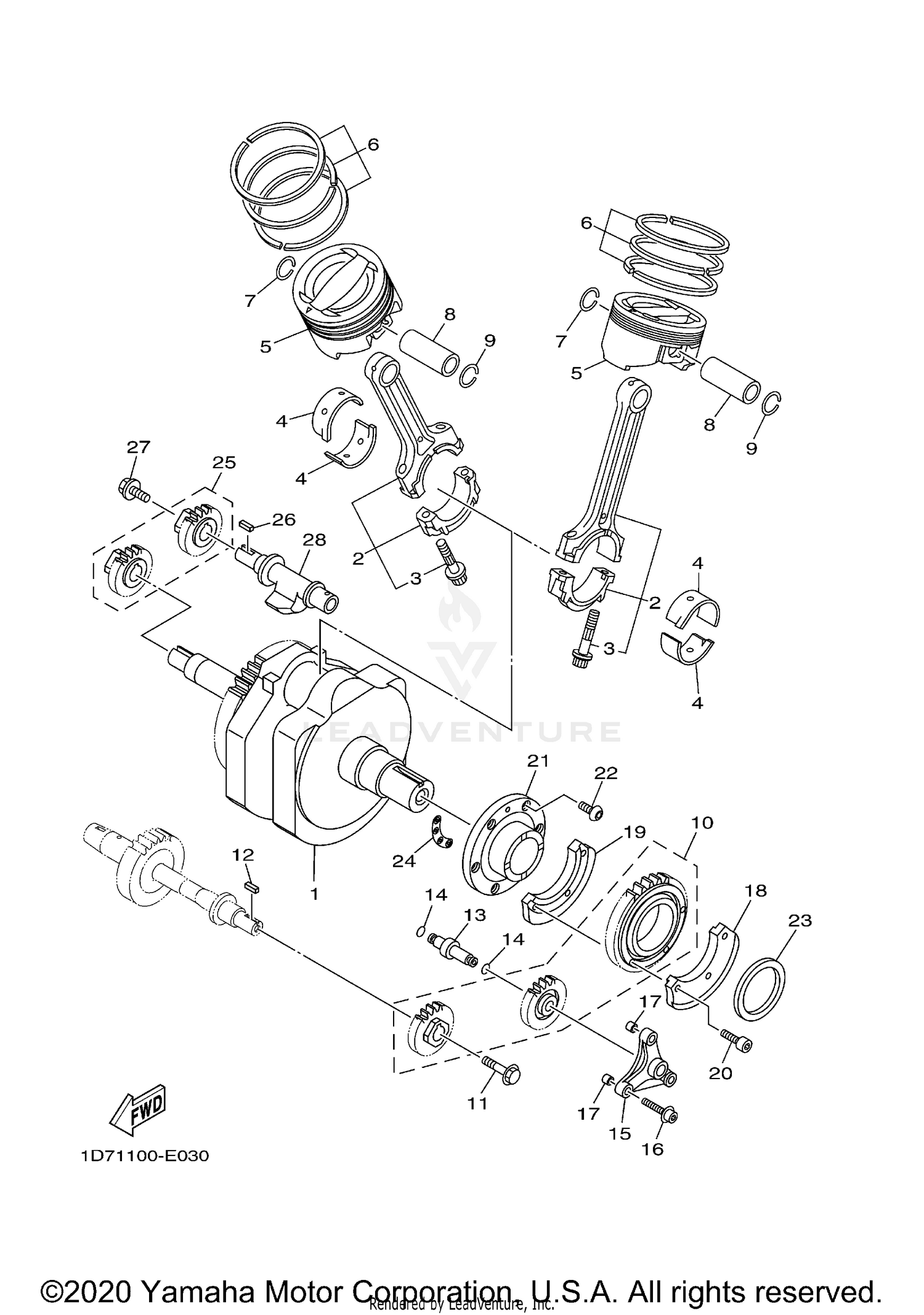

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
5C7-11400-01-00
|
$1,076.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTING ROD ASSY
5C7-11650-01-00
|
$318.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, CONNECTING ROD
5YU-11654-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLANE BEARING, CONNECTING ROD
5YU-11656-40-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLANE BEARING, CONNECTING ROD
5YU-11656-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLANE BEARING, CONNECTING ROD
5YU-11656-10-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLANE BEARING, CONNECTING ROD
5YU-11656-20-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLANE BEARING, CONNECTING ROD
5YU-11656-30-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON (STD)
1D7-11631-00-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON RING SET (STD)
1D7-11610-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93450-24154-00
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, PISTON
5VK-11633-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
93450-24154-00
|
$3.07 | ||
|
Unavailable |
|||
|
#10
DRIVE GEAR SET
1D7-W114B-00-00
|
$278.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-10152-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
KEY, STRAIGHT
90282-04001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHAFT 1
1D7-11455-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-06003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET
1D7-1135A-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-06028-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
WEIGHT 1
1D7-11454-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WEIGHT 3
1D7-1145A-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
90110-06211-00
Superseded by 91314-06020-00
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOUSING
1D7-11444-00-00
|
$228.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
90149-06166-00
Superseded by 90149-06161-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, WEIGHT 1
1D7-11483-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
1D7-11479-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BREAKER GEAR SET
1D7-W114A-00-00
Superseded by 1D7-W114A-01-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
KEY, STRAIGHT
90282-04001-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
BOLT, WASHER BASED
90105-10445-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WEIGHT 2
1D7-11464-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
