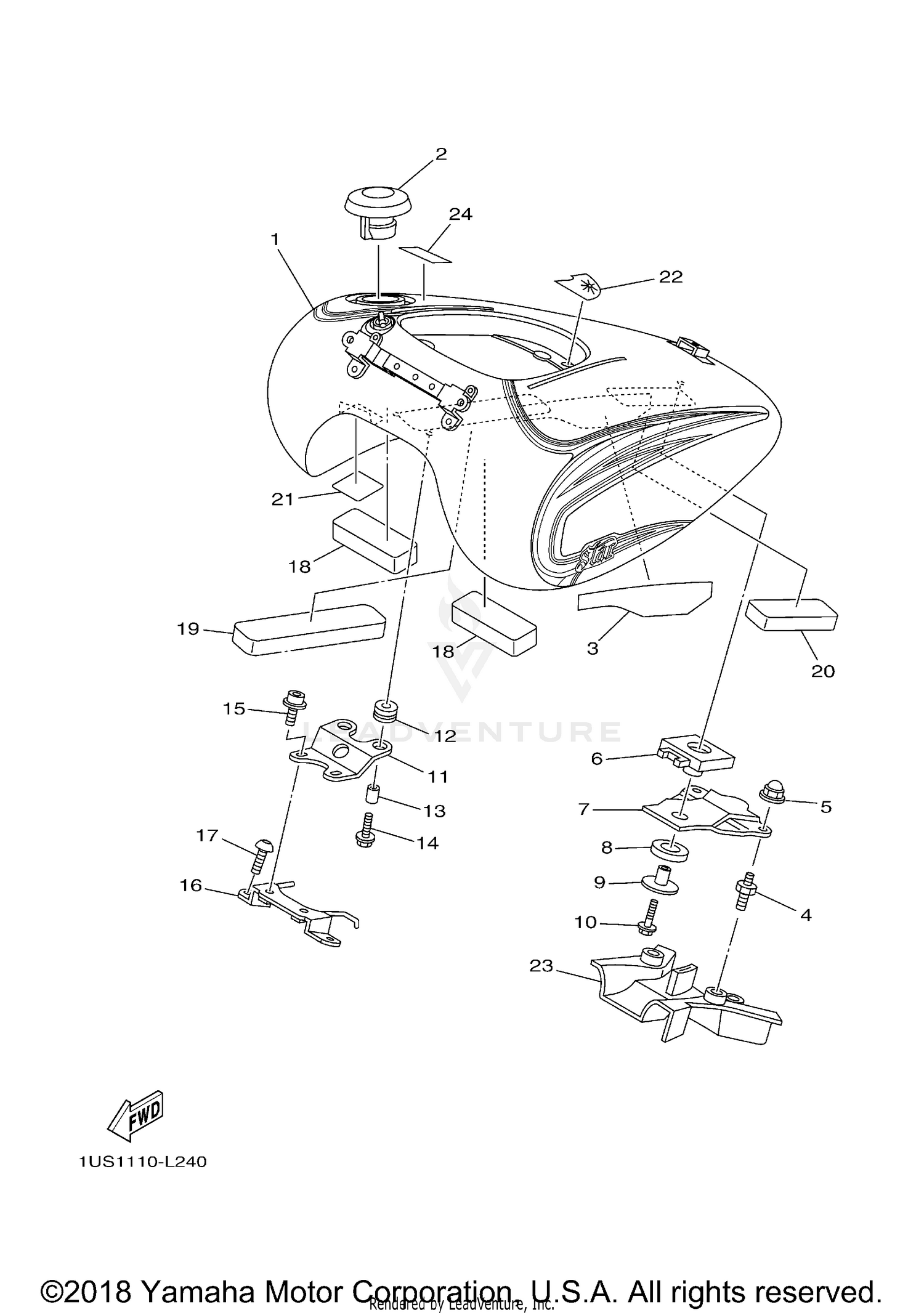

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5C7-YKK24-00-0X
|
$1,600.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
4NK-24602-20-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE
5C7-2413X-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT 1
5PX-24176-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 2
1D7-24182-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, TANK FITTING
1D7-2413Y-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, LOCATING 3
4TR-24183-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-06177-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BUTTON HEAD
92012-06025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, FUEL TANK 1
5C7-24191-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-15005-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06068-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06264-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-08052-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, FUEL TANK 2
5C7-24192-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92012-08016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, PLATE 5
1D7-2414P-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, PLATE 4
1D7-2414N-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, PLATE 5
1D7-2414P-00-00
|
$2.30 | ||
|
Unavailable |
|||
|
#21
PROTECTOR 1
5C7-2476U-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, SIDE COVER
5C7-24145-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER
1D7-24217-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
LABEL, CAUTION
4C8-2118K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
