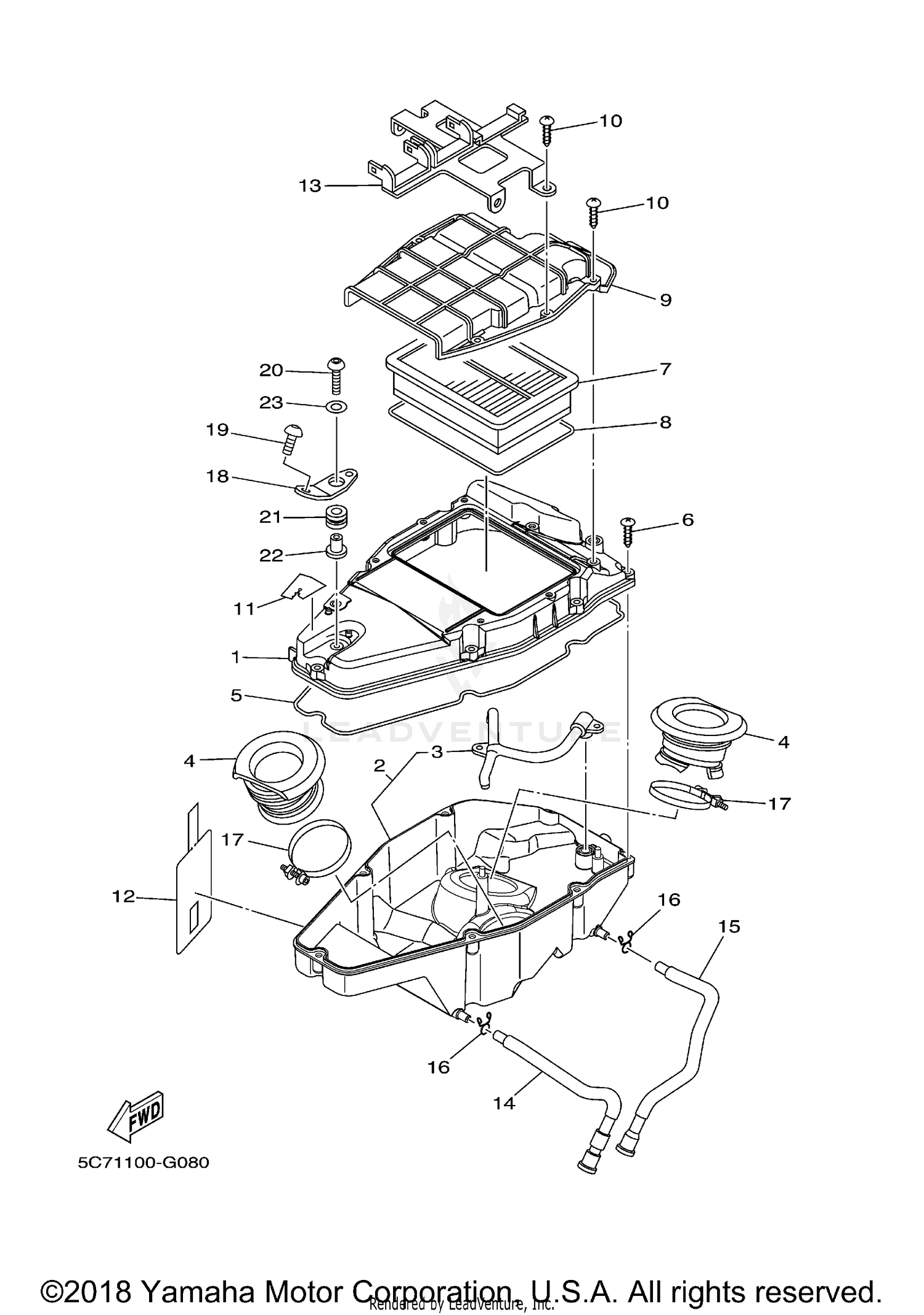

Intake 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SILENCER, INTAKE 1
1D7-14431-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, CLEANER CASE SUB ASSY 1
5C7-W1443-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE
1D7-14419-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT, AIR CLEANER 1
1D7-14453-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL
1D7-14457-00-00
Superseded by 51Y-14462-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TAPPING
97707-50030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
ELEMENT, AIR CLEANER 2
1D7-14461-00-00
Superseded by 1D7-14461-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#8
SEAL
1D7-14452-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, CLEANER CASE 1
1D7-14412-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
97707-50020-00
Superseded by 90167-05078-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER 1
1D7-14425-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER 1
1D7-14417-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET 1
5C7-83955-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, DRAIN
5C7-1443E-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, DRAIN 2
5C7-1443G-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE CLAMP ASSY
90450-56005-00
Superseded by 90450-56001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY 2
5C7-14414-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, BUTTON HEAD
92012-08016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
92012-06025-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-14023-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-064R0-00
Superseded by 90201-06066-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
