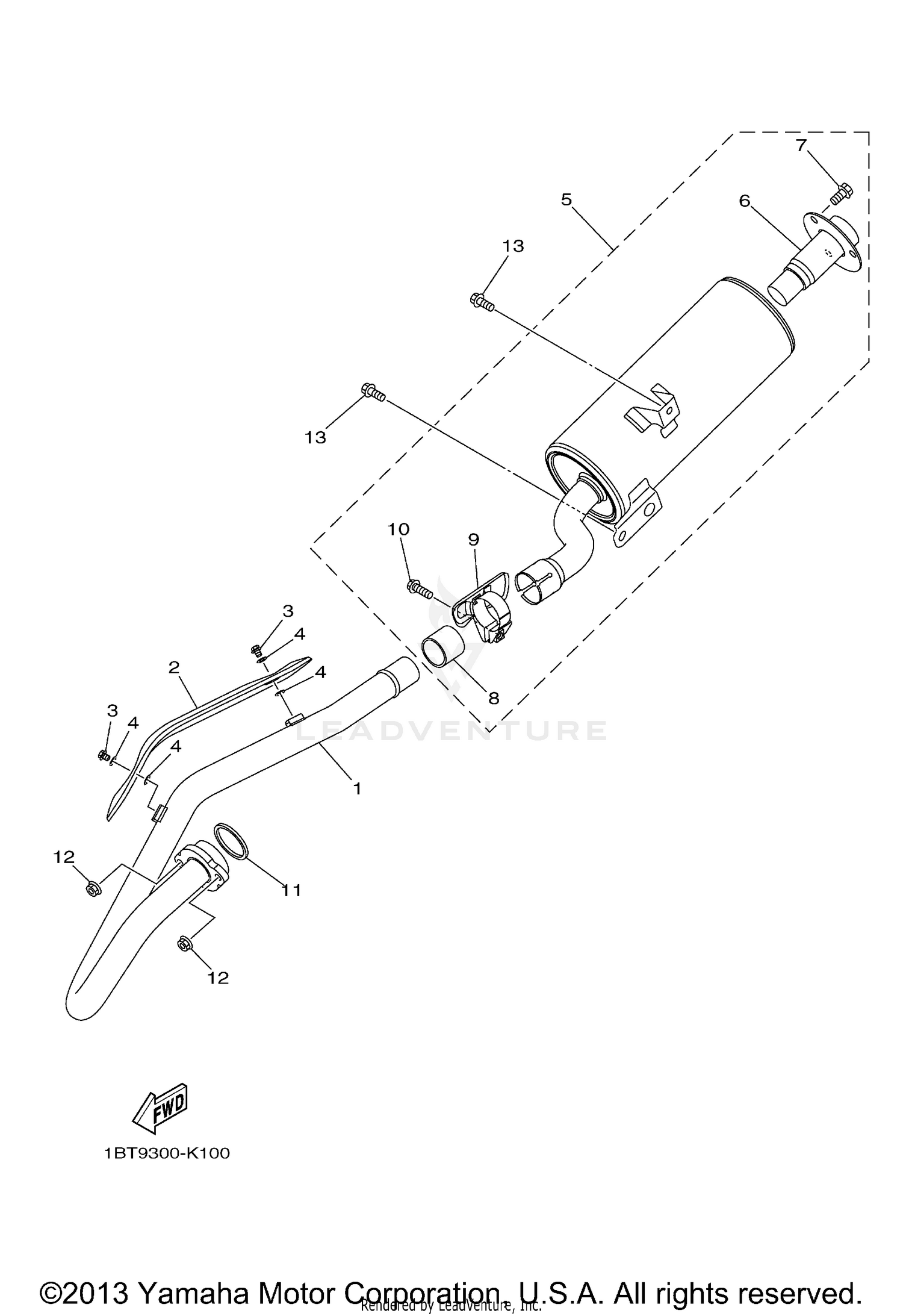

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
4D3-14611-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
4D3-14628-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BIND
98902-06008-00
Superseded by 98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-05017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER ASSY 1
4D3-14710-10-00
|
$507.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, OUTLET
2PA-14752-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, MUFFLER
3YF-14714-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, MUFFLER 1
4D3-14718-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (SMALL HEAD)
95024-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, EXHAUST PIPE
3GD-14613-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE
95702-08500-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
