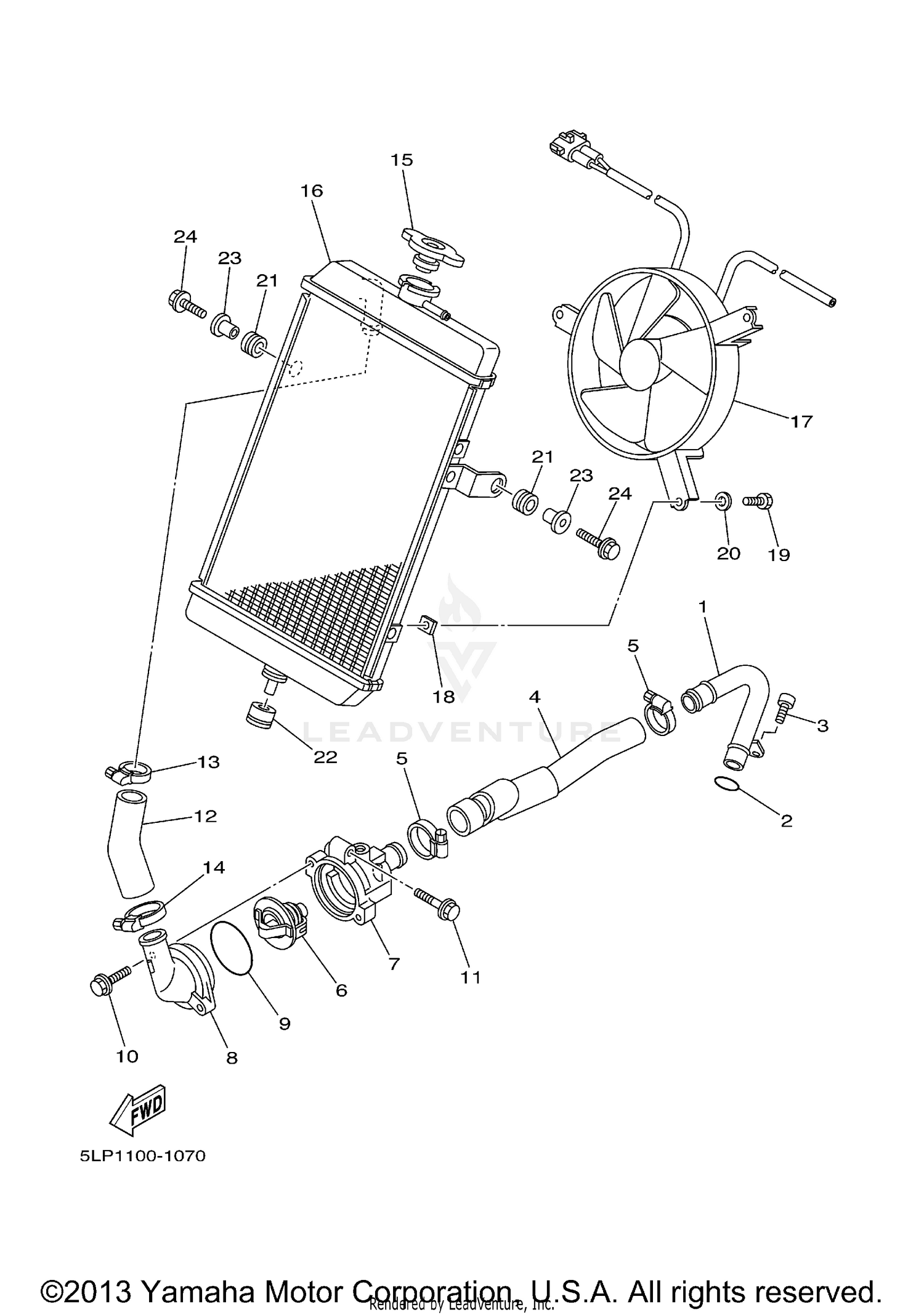

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE 1
5LP-12481-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-18417-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE 3
5LP-12578-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE CLAMP ASSY
90450-32015-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
THERMOSTAT
5LP-12411-00-00
Superseded by 5LP-12411-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#7
HOUSING, THERMOSTAT
5LP-12417-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, THERMOSTAT
5LP-12413-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-49046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE 4
5LP-12579-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE CLAMP ASSY
90450-32015-00
|
$16.49 | ||
|
Unavailable |
|||
|
#14
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RADIATOR ASSY
5LP-12461-10-00
|
$447.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BLOWER ASSY
5LP-12405-00-00
|
$455.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE
1AA-12535-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT(3JP)
97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-15470-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
90480-18499-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-075U2-00
|
$4.25 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
95807-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
