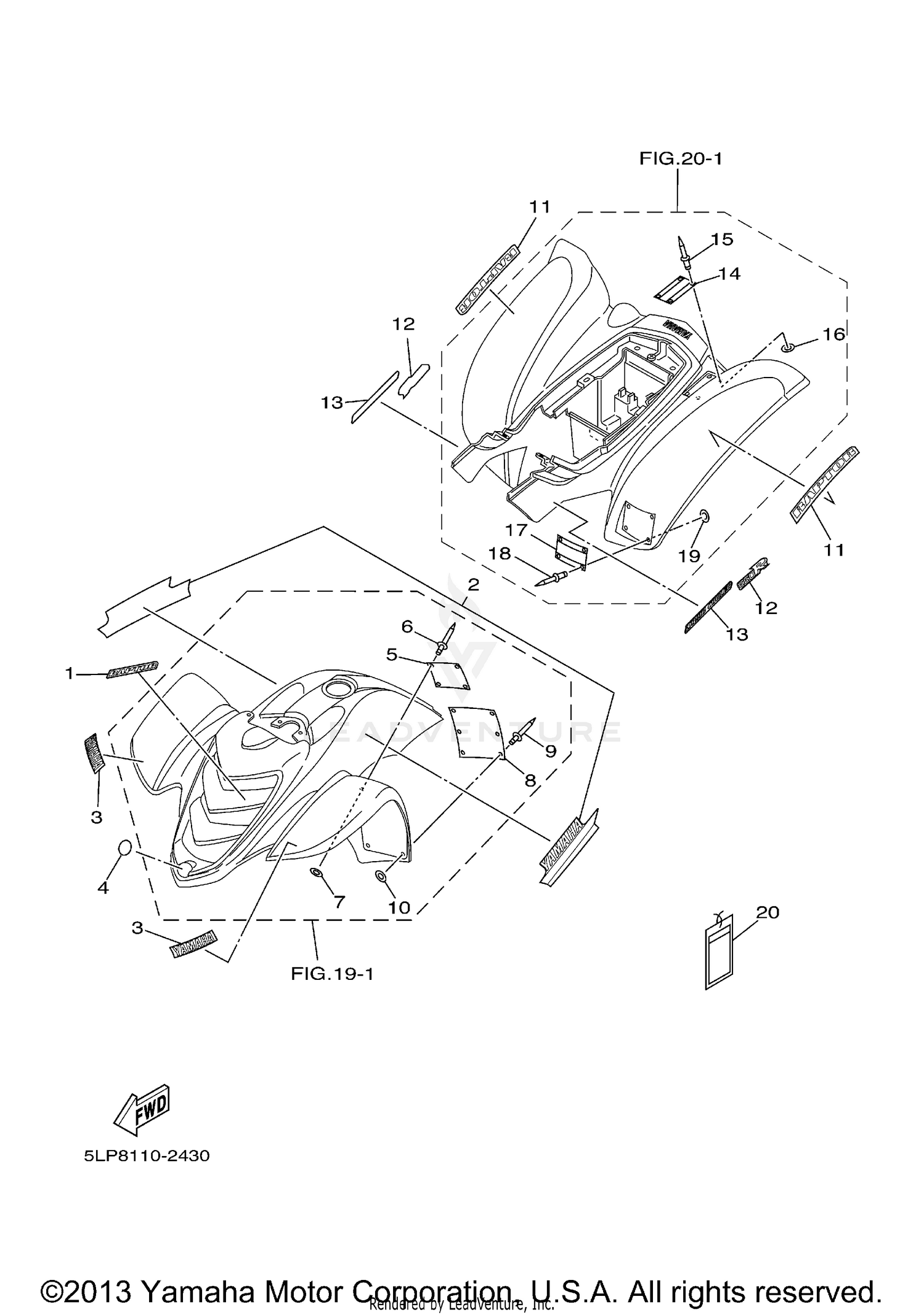

Emblem Label 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EMBLEM, 2
5LP-21565-30-00
|
$4.80 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET, FRONT FENDER
5LP-21570-40-00
|
$117.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM, YAMAHA
3GD-2153E-10-00
Superseded by 3GD-2153E-11-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUNING FORK MARK
5KM-2175B-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, WARNING AGE
5FE-21697-01-00
Superseded by 4D3-2816L-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIVET, BLIND
90267-32004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-03313-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, WARNING
5FE-21568-01-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET, BLIND
90267-32004-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-03313-00
|
$8.49 | ||
|
Unavailable |
|||
|
#11
EMBLEM
5LP-21609-50-00
|
$28.99 | ||
|
Unavailable |
|||
|
#12
EMBLEM 1
5LP-2163G-20-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
EMBLEM 2
5LP-2163H-20-00
|
$11.99 | ||
|
Unavailable |
|||
|
#14
LABEL 5
5FE-2151H-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIVET, BLIND
90267-32004-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-03313-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
LABEL, CAUTION
5LP-21696-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RIVET, BLIND
90267-32004-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-03313-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
TAG, WARNING
5LP-2819R-00-00
|
$5.49 | ||
|
Unavailable |
|||
