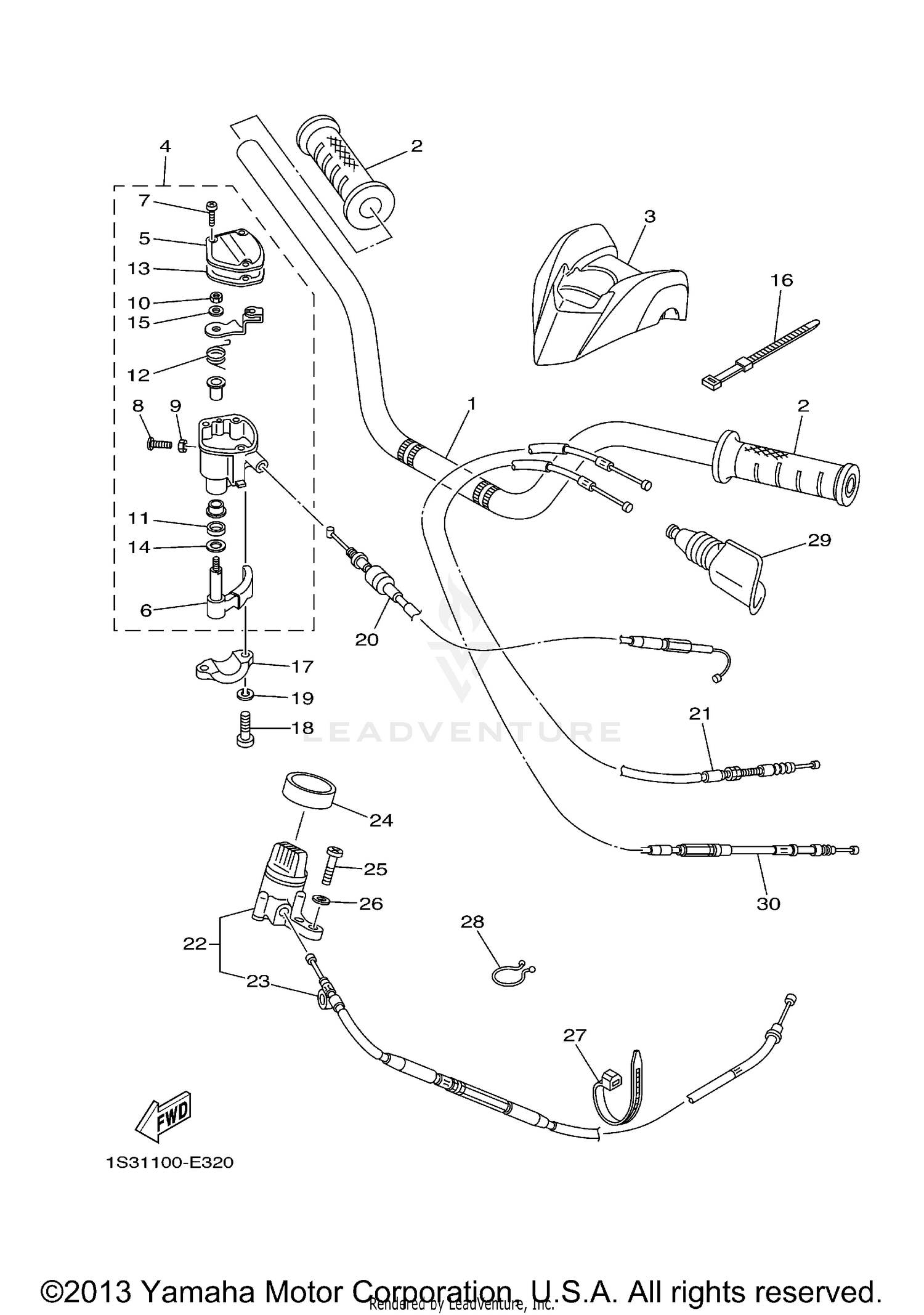

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1S3-26111-00-00
Superseded by 1S3-26111-10-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP
5LP-26241-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, HANDLEBAR
1S3-26124-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
THROTTLE LEVER ASSY
4KB-26250-20-00
Superseded by 4KB-26250-22-00
|
$155.99 | ||
|
Unavailable |
|||
|
#5
CAP, GEAR
4KB-2628F-20-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER, THROTTLE
1NV-2625G-01-00
Superseded by 1NV-2625G-02-00
|
$57.99 | ||
|
Unavailable |
|||
|
#7
SCREW
90149-04278-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95307-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93104-09025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
1NV-26304-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
4KB-2628G-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
1NV-26129-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL
1NV-26398-00-00
Superseded by 53L-83909-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#16
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98502-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING
92902-05100-00
Superseded by 92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE, THROTTLE 1
1S3-26311-00-00
Superseded by 1S3-26311-11-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE, CLUTCH
1S3-26335-00-00
Superseded by 1S3-26335-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
REV. LEVER ASSY.
1S3-26150-00-00
Superseded by 1S3-26150-10-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE, CONTROL 1
1S3-2637E-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER
1S3-26113-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98502-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, HANDLE LEVER 1
31A-26372-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WIRE, BRAKE 1
1S3-26341-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
