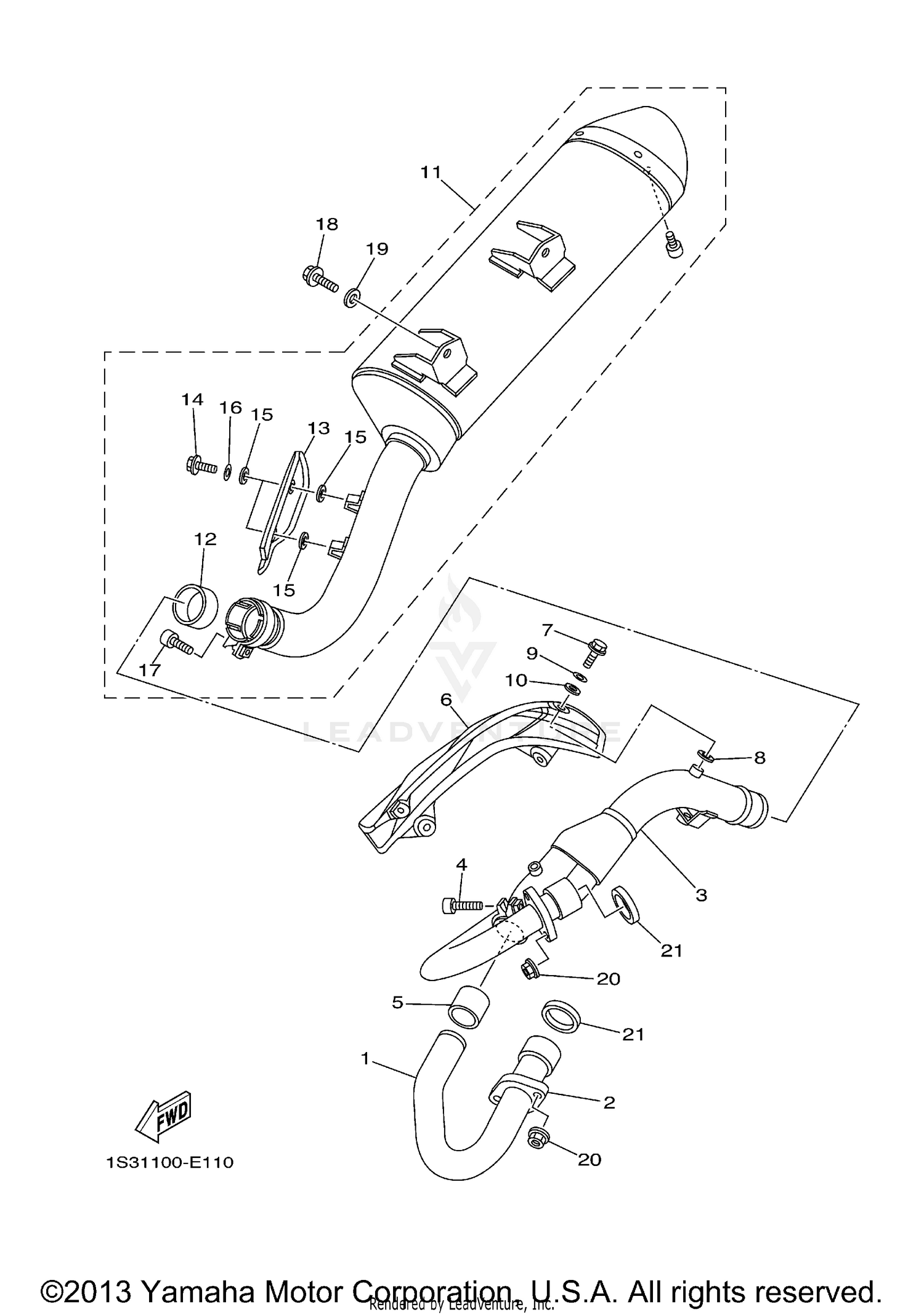

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
1S3-14611-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, RING
1S3-14612-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, EXHAUST 2
1S3-14621-00-00
Superseded by 1S3-14621-01-00
|
$291.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91312-08035-00
Superseded by 91317-08035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, MUFFLER
3YF-14714-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR, EXHAUST PIPE
1S3-14628-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-05015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06035-00
Superseded by 90201-06013-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-05019-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
MUFFLER ASSY 1
1S3-14711-00-00
Superseded by 1S3-14710-00-00
|
$382.99 | ||
|
Unavailable |
|||
|
#12
GASKET, MUFFLER
5LP-14714-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR, MUFFLER 2
1S3-14728-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, BIND
98907-06010-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-05015-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
WASHER
92907-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
91312-08035-00
Superseded by 91317-08035-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
90105-08074-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE
95702-08500-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, EXHAUST PIPE
3YF-14613-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
