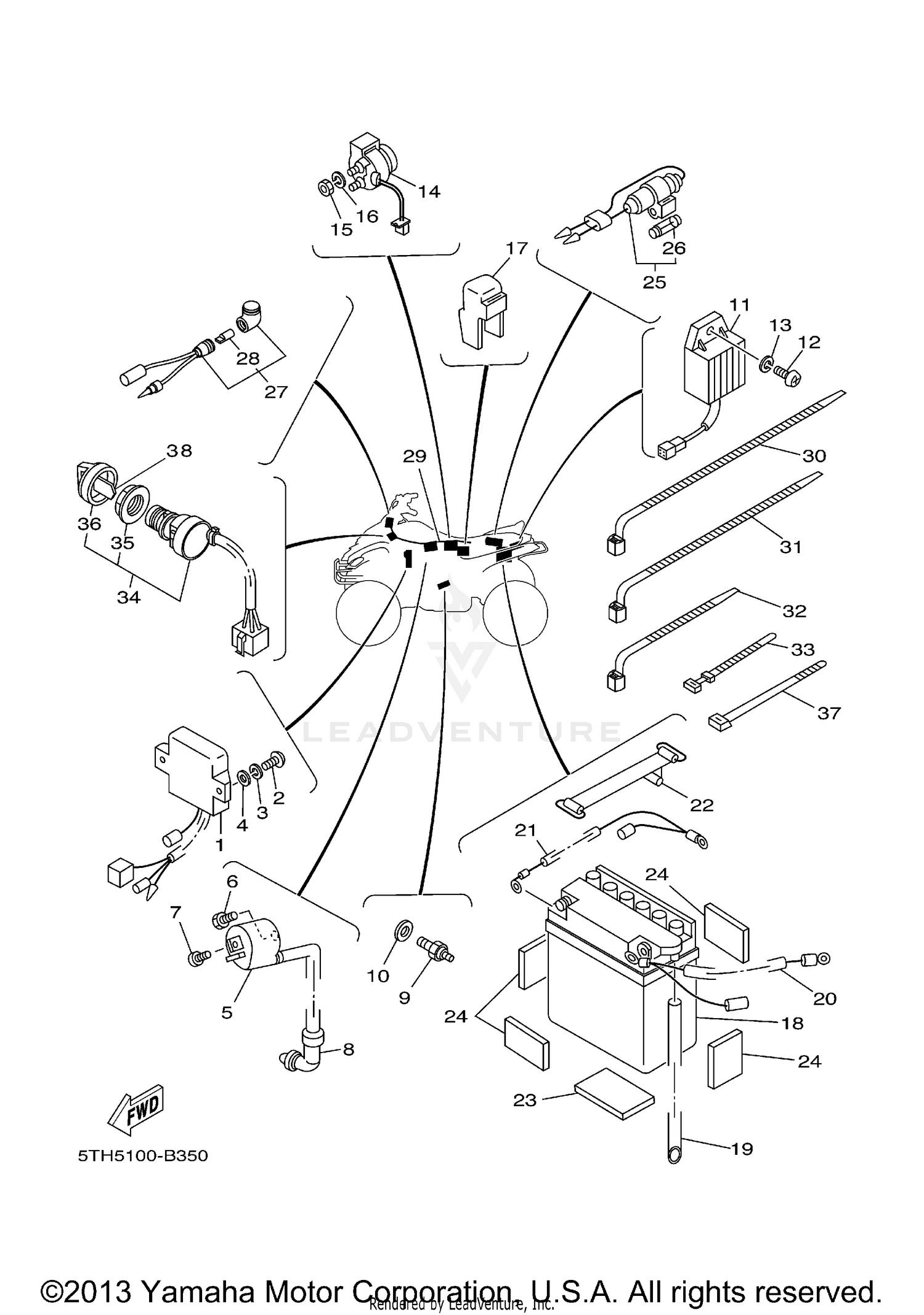

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
4EM-85540-10-00
|
$221.33 | ||
|
Unavailable |
|||
|
#2
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
IGNITION COIL ASSY
4KJ-82310-10-00
Superseded by 3KJ-82310-13-00
|
$44.99 | ||
|
Unavailable |
|||
|
#6
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, HEXAGON
90153-06034-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG CAP ASSY
55X-82370-00-00
Superseded by 4BP-82370-01-00
|
$32.99 | ||
|
Unavailable |
|||
|
#9
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-10148-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
RECTIFIER & REGULATOR ASSY
5TH-81960-00-00
Superseded by 5TH-81960-01-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW,PAN HEAD
98507-06016-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92907-06100-00
|
$3.90 | ||
|
Unavailable |
|||
|
#14
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95307-06700-00
Superseded by 95317-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92907-06100-00
|
$3.90 | ||
|
Unavailable |
|||
|
#17
RELAY ASSY
1RL-81950-92-00
Superseded by 12R-81950-02-00
|
$65.99 | ||
|
Unavailable |
|||
|
#18
BAT 12N7-3B YU
55X-82110-61-00
Superseded by 12N-73B00-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE
90445-085E0-00
Superseded by 90445-084J0-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRE, PLUS LEAD
55X-82115-00-00
Superseded by 55X-82115-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE, MINUS LEAD
3GB-82116-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, BATTERY
4J2-82131-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAT, BATTERY
55X-82122-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER 1
29W-82123-00-00
Superseded by 1UY-21638-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUSE HOLDER ASSY
3GB-82150-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE
3GB-82151-00-00
Superseded by 5G2-82151-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
PILOT LIGHT ASSY
4KB-83530-00-00
Superseded by 4KB-83530-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WIRE HARNESS ASSY
5TH-82590-00-00
|
$155.03 | ||
|
Unavailable |
|||
|
#30
CLAMP, HOSE
90460-15126-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BAND, SWITCH CORD
90464-12045-00
Superseded by 25G-83936-01-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
MAIN SWITCH ASSY
4GB-82510-11-00
Superseded by 4GB-82510-12-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, MAIN SWITCH
3HN-82569-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CAP, KEY
3HN-82579-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90465-10098-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#38
BLANK KEY (A-TYPE)
90890-56001-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#
BLANK KEY (B-TYPE)
90890-56002-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
