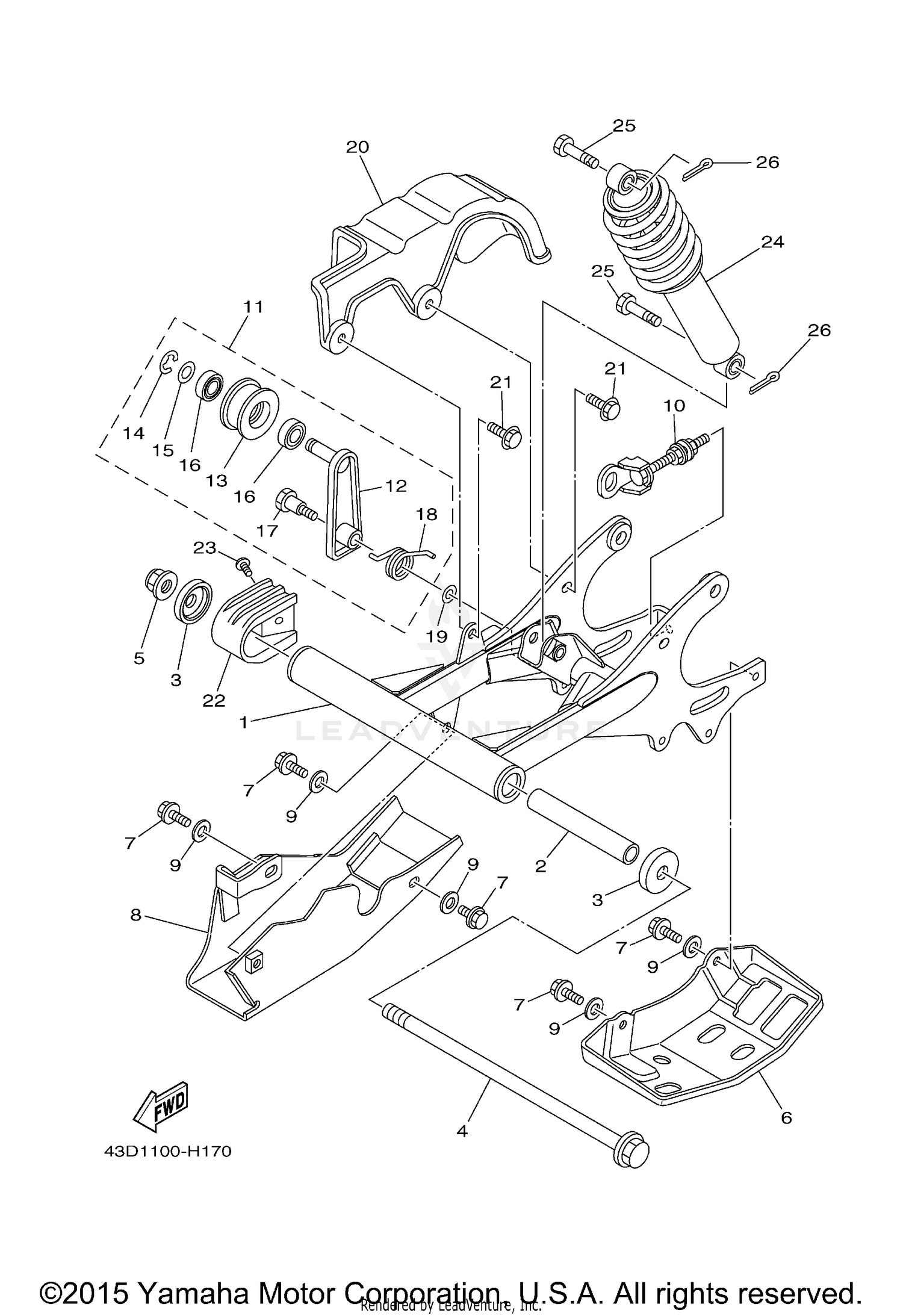

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM ASSY
43D-F2100-00-00
|
$386.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, DISTANCE
43D-F2126-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, THRUST 1
43D-F2128-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT 2
43D-F1722-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT 1
43D-F1535-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUARD 1
43D-F2361-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CHAIH CASE 2
43D-F2334-00-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUARD 2
43D-F2362-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SEAT
43D-E2289-00-00
Superseded by 1SC-F4746-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
PULLER, CHAIN 1
43D-F5388-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CHAIN TENSIONER ASSY
43D-F210L-00-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, TENSIONER
43D-F2183-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
TENSIONER
43D-F2178-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
99002-10600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
43D-F3456-00-00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
43D-F2176-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD
43D-F4391-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, TENSIONER
43D-F2169-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
43D-F3427-00-00
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#20
CASE, CHAIN 2
43D-F2312-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,FLANGE (JN5)
95827-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL, GUARD
43D-F2151-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SPECIAL
43D-F3394-00-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHOCK ABSORBER ASSY, REAR
43D-F2210-10-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHOCK ABSORBER ASSY, REAR
43D-F2210-00-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (97027-10040-00)
97027-10040-00
Superseded by 97017-10040-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
