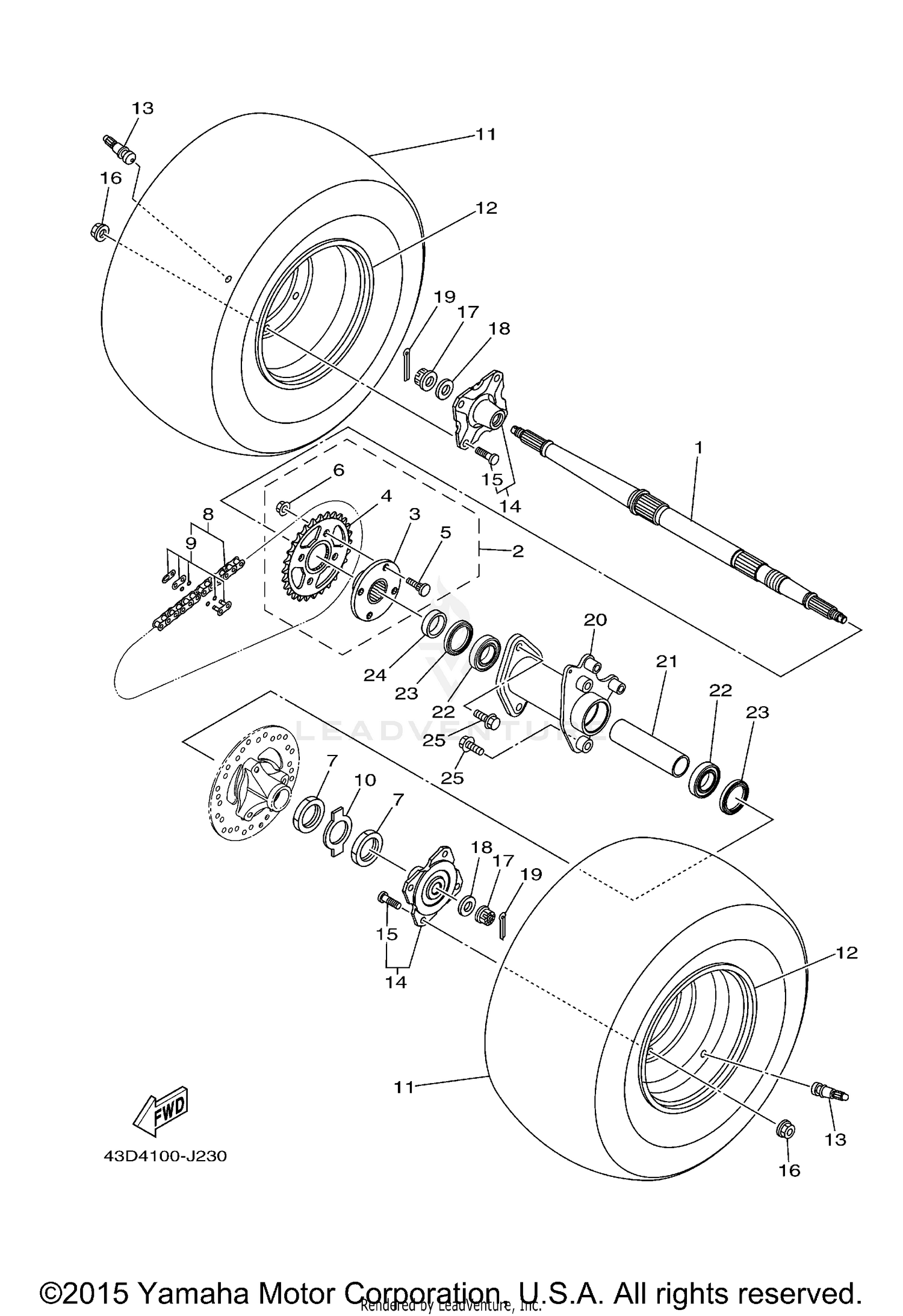

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, WHEEL
43D-F5381-00-00
|
$310.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET ASSY
43D-F5420-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, SPROCKET AXLE
43D-F5386-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, DRIVEN (28T)
43D-F5438-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
43D-F3459-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, REAR FENDER
43D-F1635-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
43D-F1636-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CHAIN
43D-F53C0-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
MASTER LINK
43D-F53N3-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
43D-F5412-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE (AT18 X 9-8 M940)
43D-F53P3-00-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
REAR WHEEL COMP.
43D-F5390-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
AIR VALVE ASSY
43D-F5170-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, WHEEL
43D-F5383-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
43D-F1738-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
43D-F1839-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, AXLE
43D-F5382-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER 1
43D-F2243-00-00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN. COTTER
91401-25033-00
Superseded by 91490-25030-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
HUB, REAR
43D-F5311-01-00
|
$232.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER, BEARING
43D-F5317-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
43D-F53N4-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, DUST
43D-F537Y-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER
43D-F5683-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
43D-F3492-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
